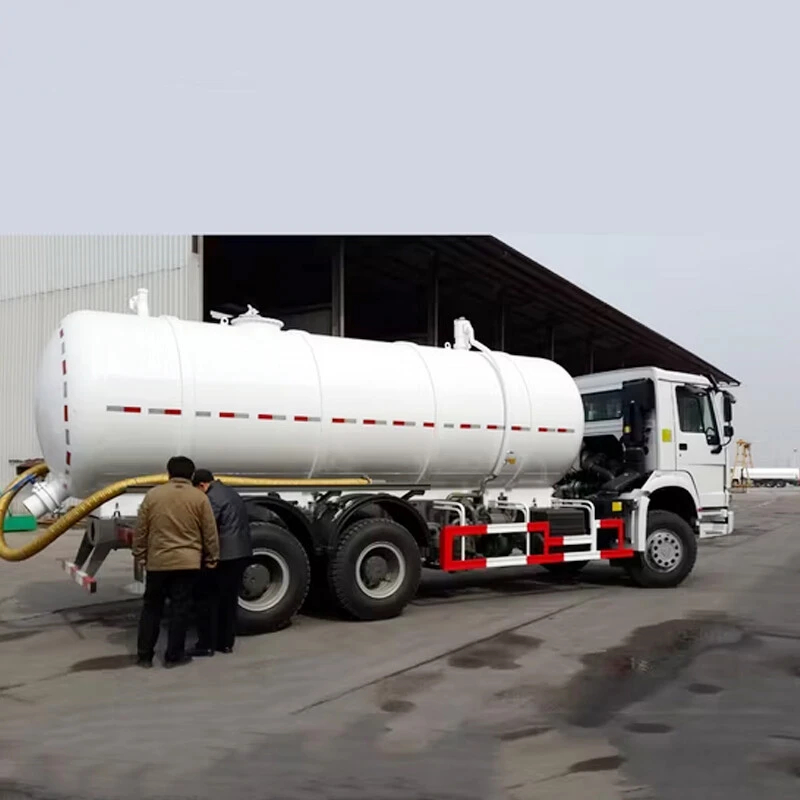

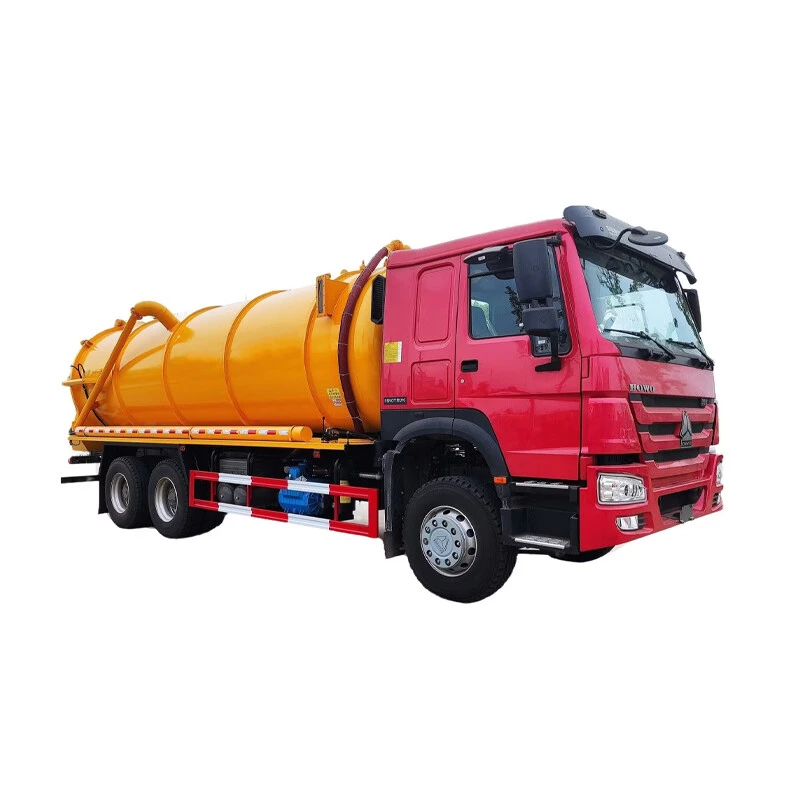

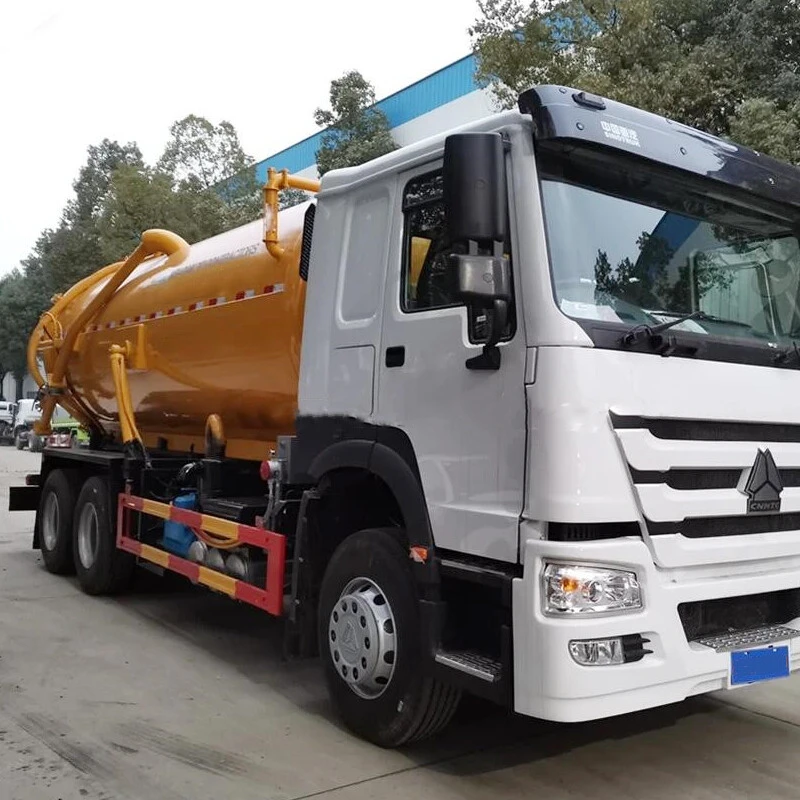

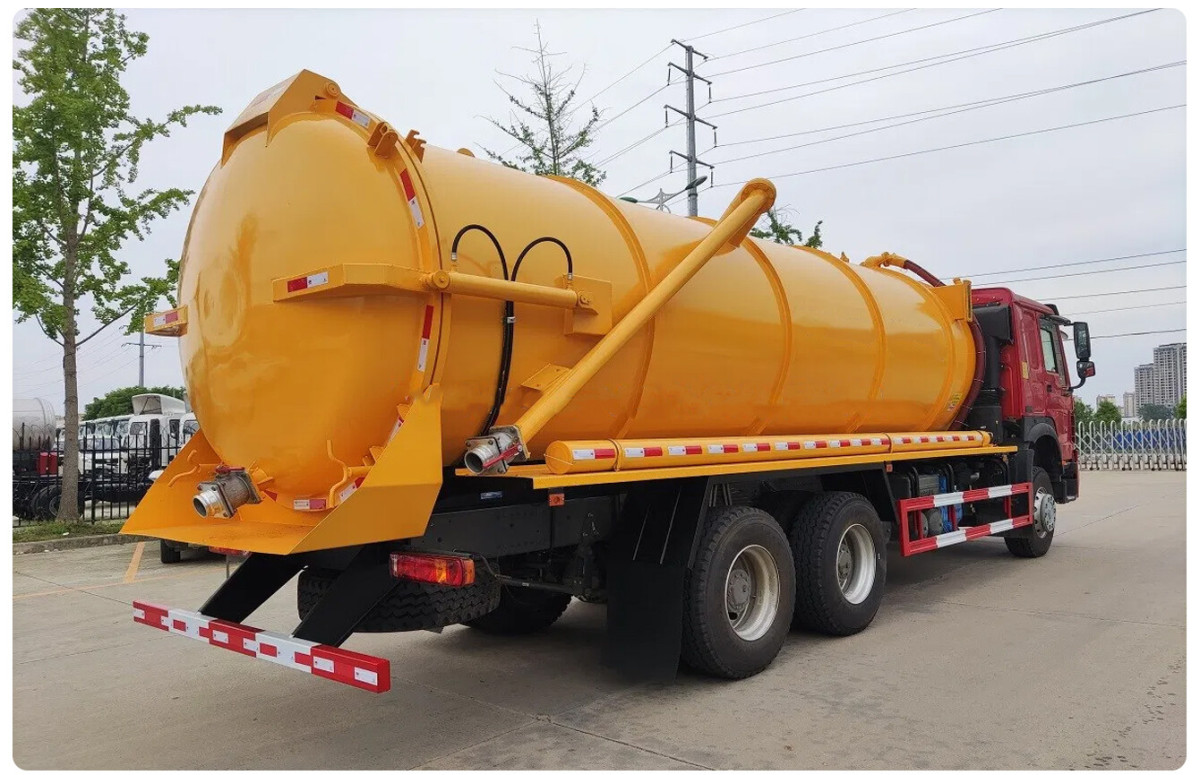

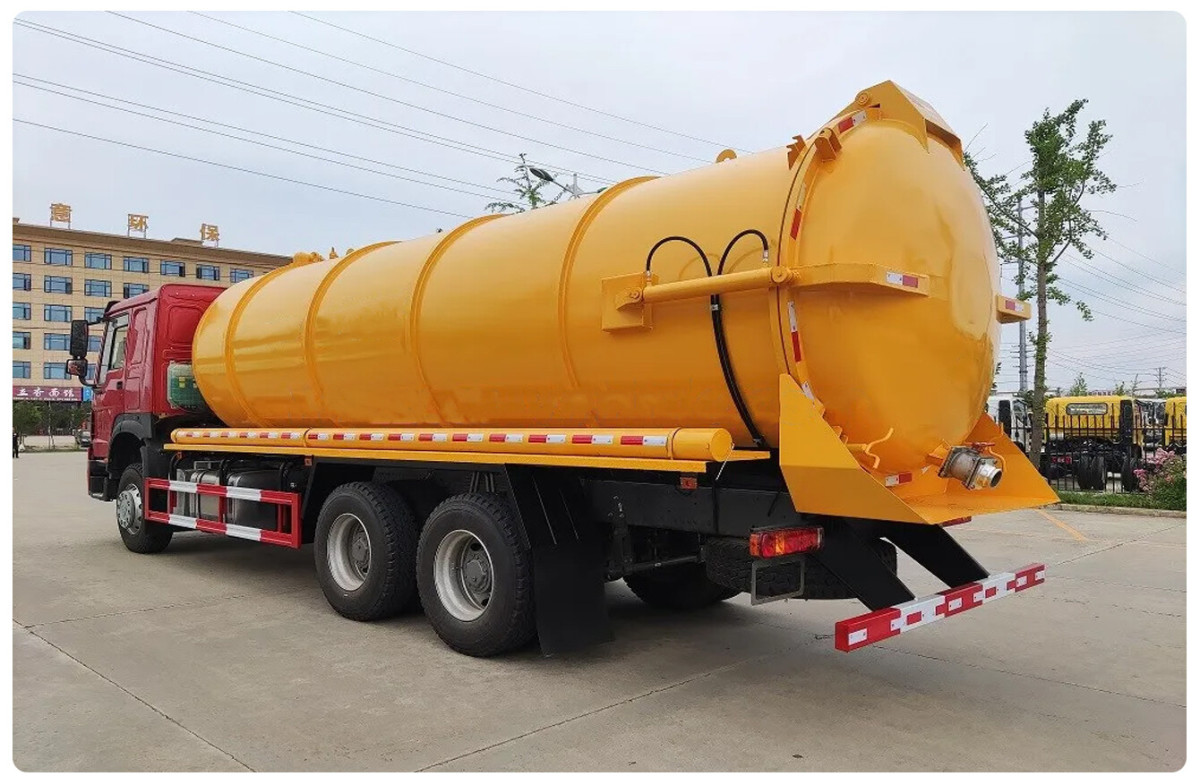

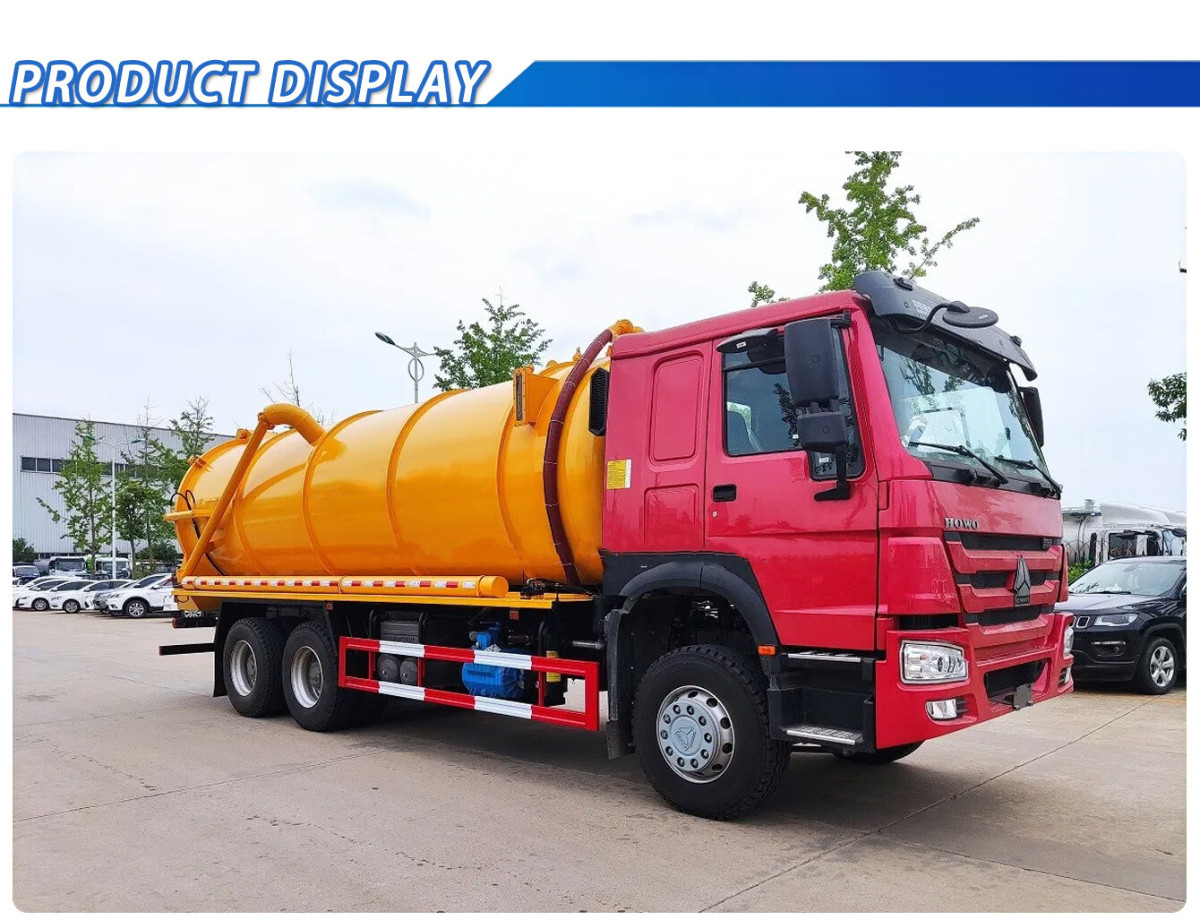

Name: Sinotruk HOWO 20m3 Vacuum Sewage Suction Truck
SKU: 0

Product



Sinotruk HOWO 20m3 Vacuum Sewage Suction Truck

Brand:HOWO 6x4
Tank Volume:20000 liter
Engine: 336 HP Euro 2
2x 10T vacuum sewage pump
Suction height:8 meters

Description

Specifications

Chassis brand	Sinotruk HOWO
Wheeldrive	6x4,LHD (RHD available)
New or Used	New
Overall dimension	10250x2500x3650mm
Gross weight	34000kg
Curb weight	13500kg
Designed load	20 ton
Wheelbase	4350+1350mm

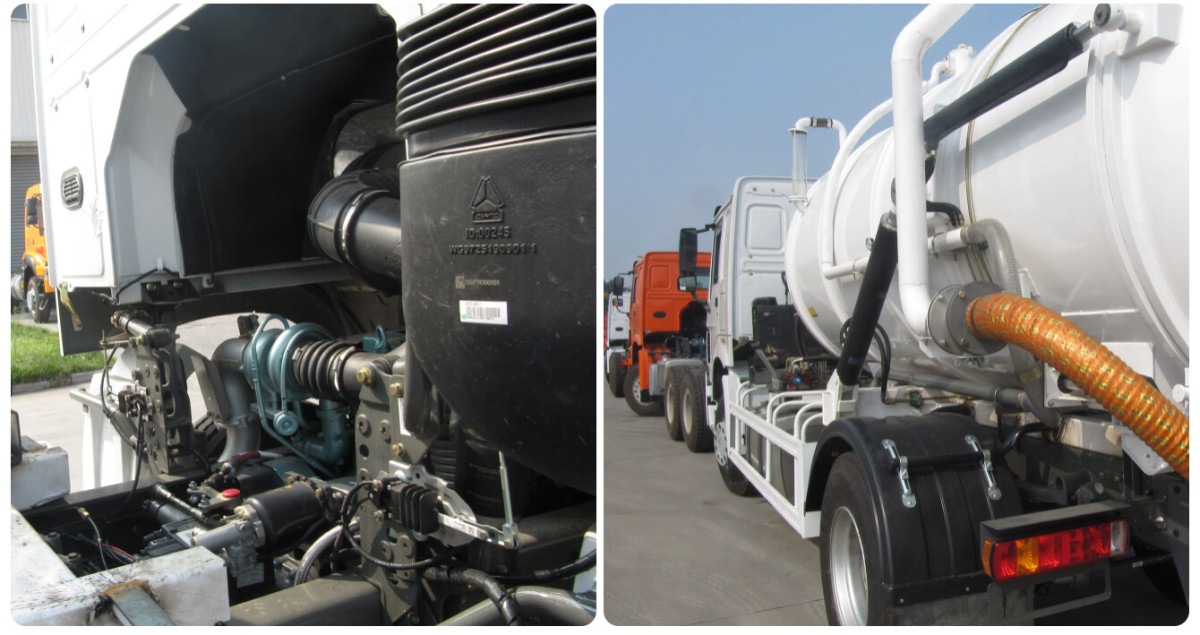

Engine power	Sinotruk brand WD615.69 336HP Euro2
Fuel type	Diesel
Transmission	HW19710 Manual,10-Forward and 2-Reverse
Brake	Full air brake
Axle load	1st axle:7 ton 2nd axle:16 ton 3rd axle: 16 ton


Tire	10+1 pcs,12.00R20radial tires
Max speed	90km/h
Sewage Tank	Tank Volume	20000 liter
	Material	8m carbon steel tank body, 8m seal head
	Back door	Hydraulic open

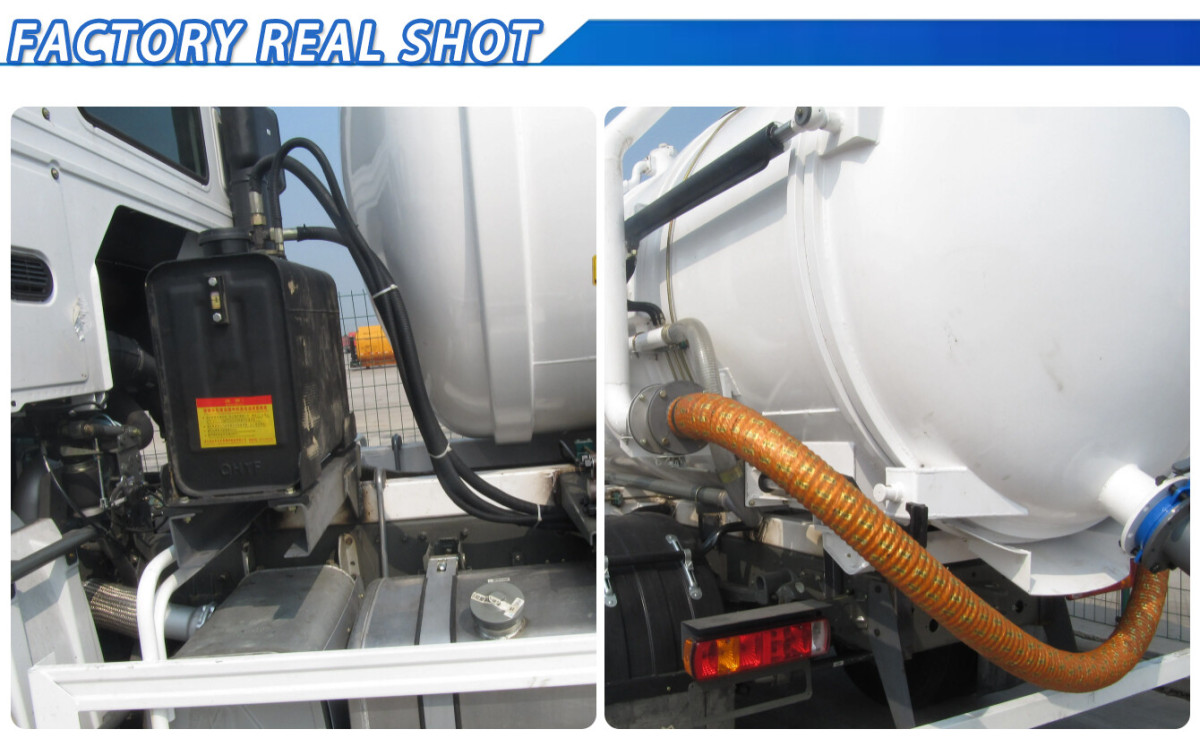

Main Components	Sewage pump	2x 10T vacuum pump
	Tank unloading	Hydraulic rear dumping
	Discharge valve	1 pcs DN150mm aluminum alloy outlet
	Suction hose	1 pcs 10 meters long
	Level view-window	1 pcs
Performance	Max suction depth	8 meters
	Suction full-tank time	≤15-20 minutes
	Positive pressure discharge time	≤12 minutes
