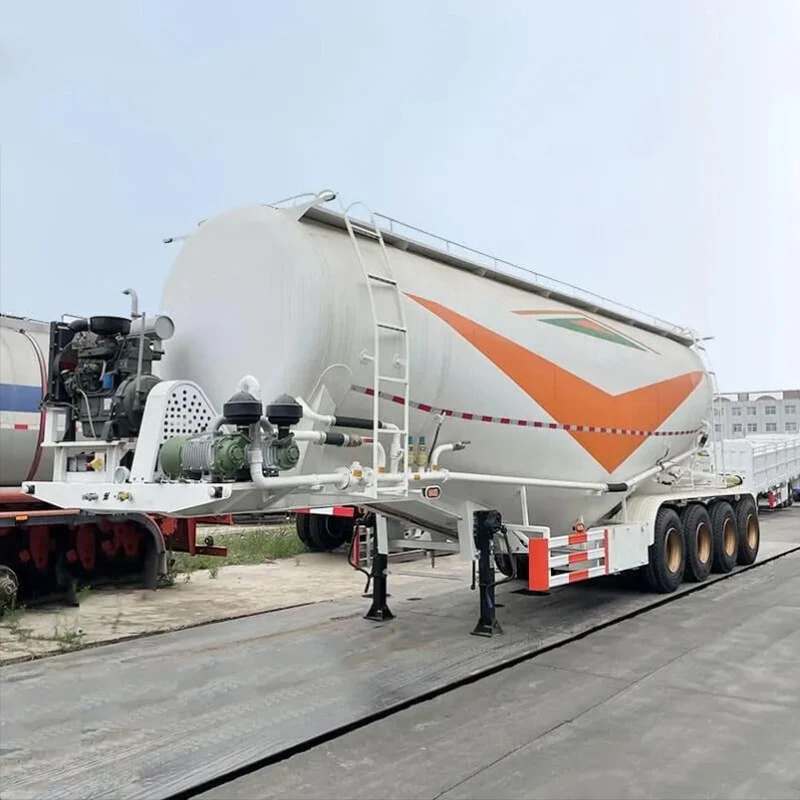

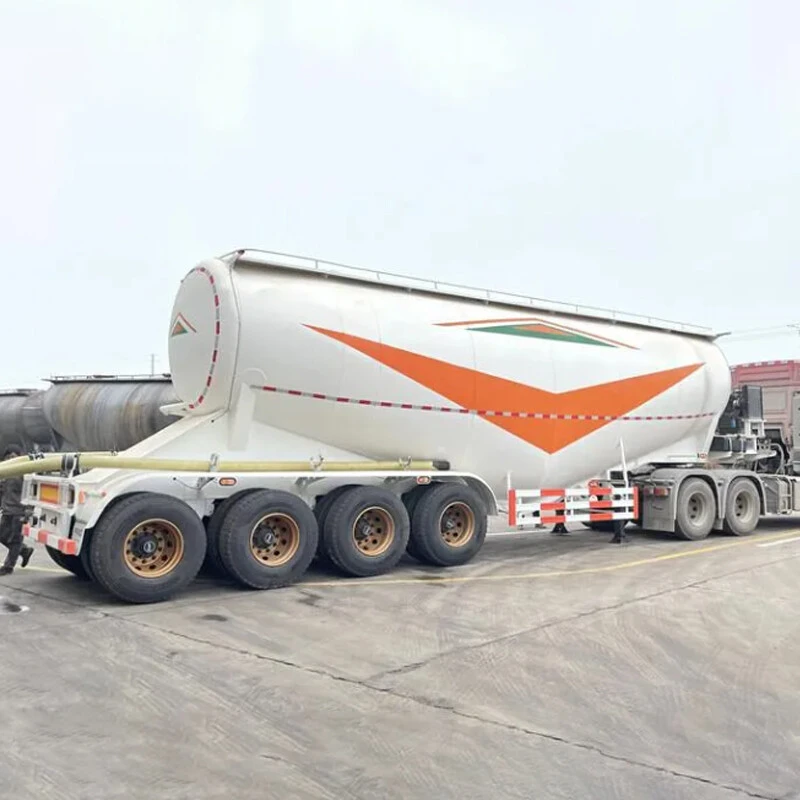

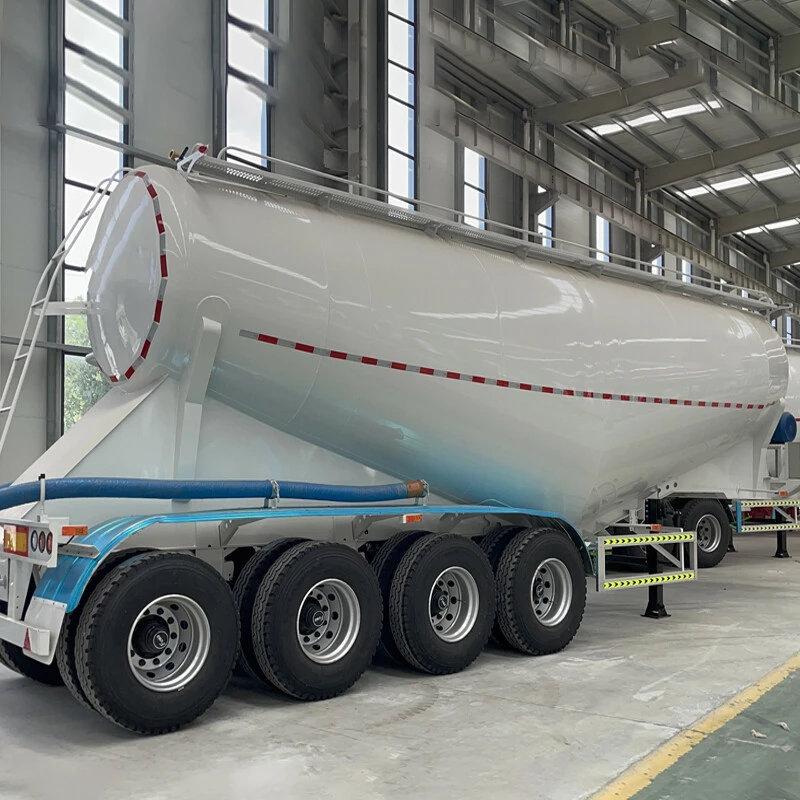

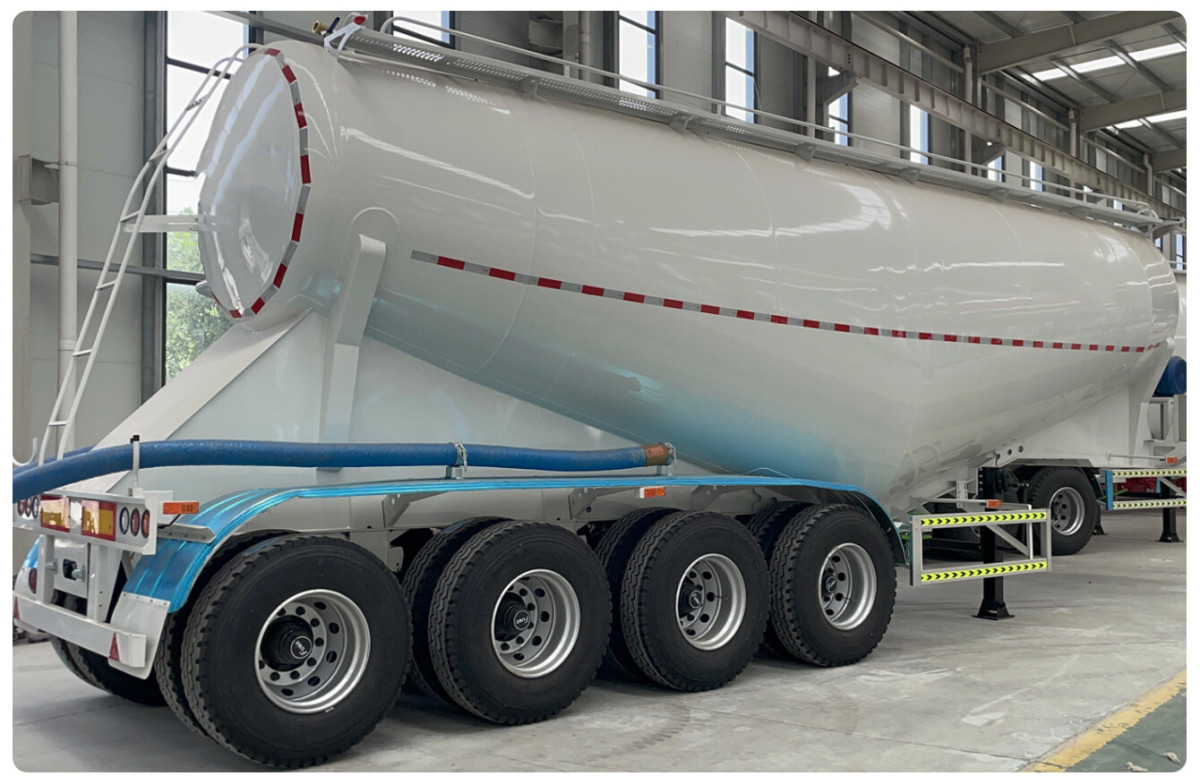

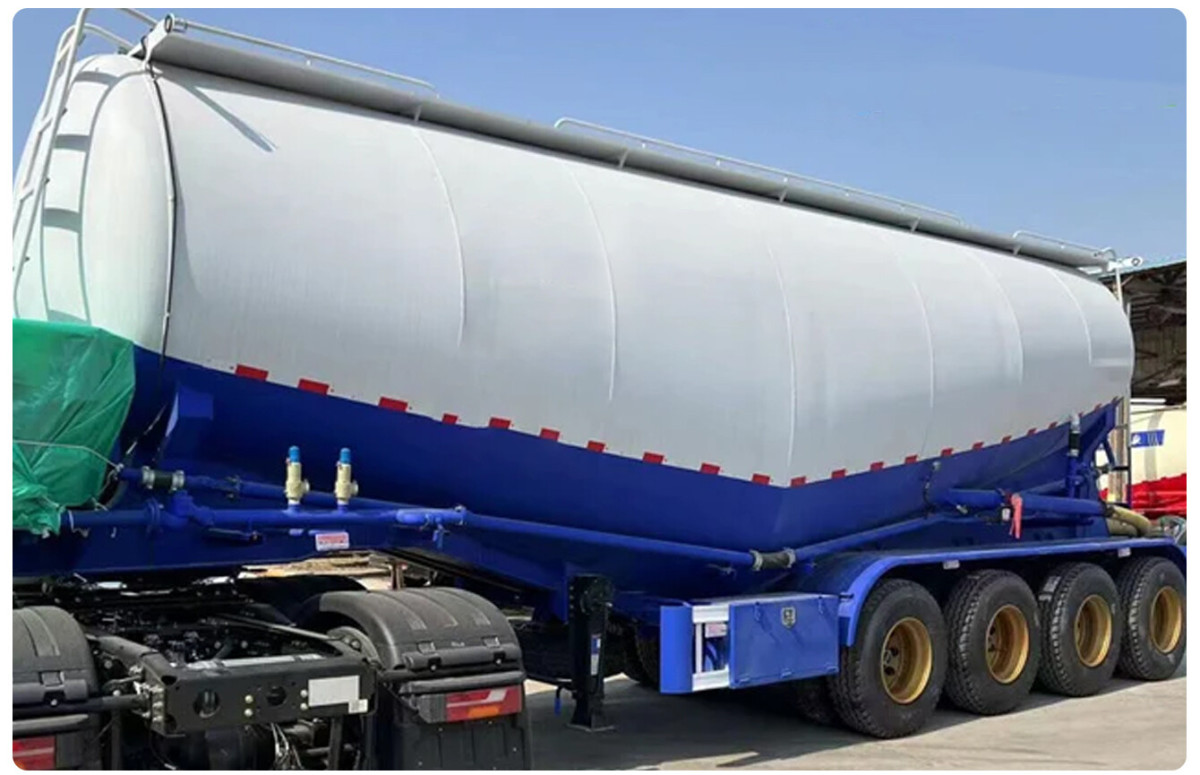

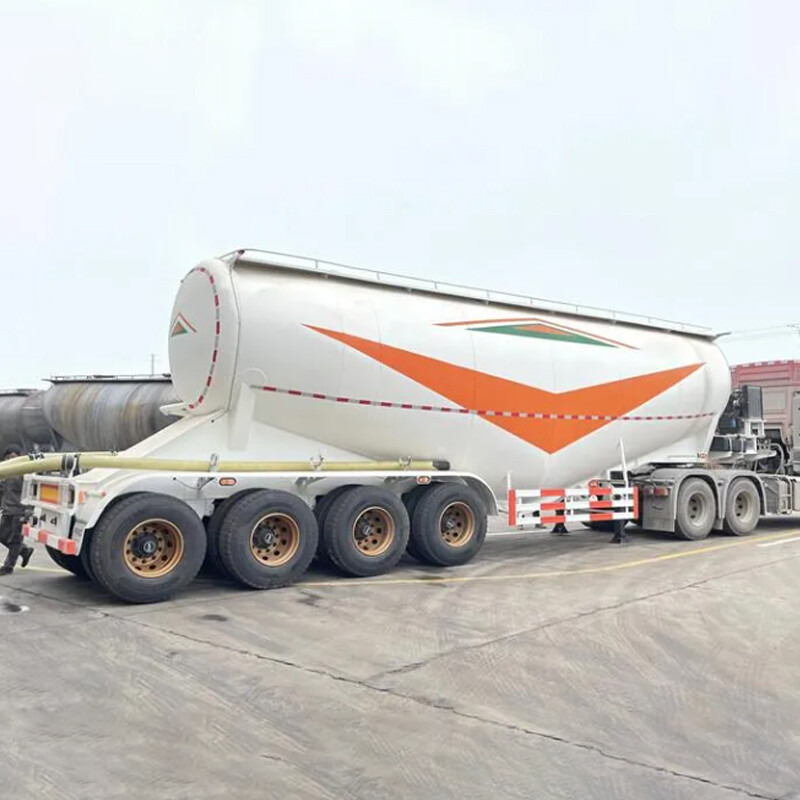

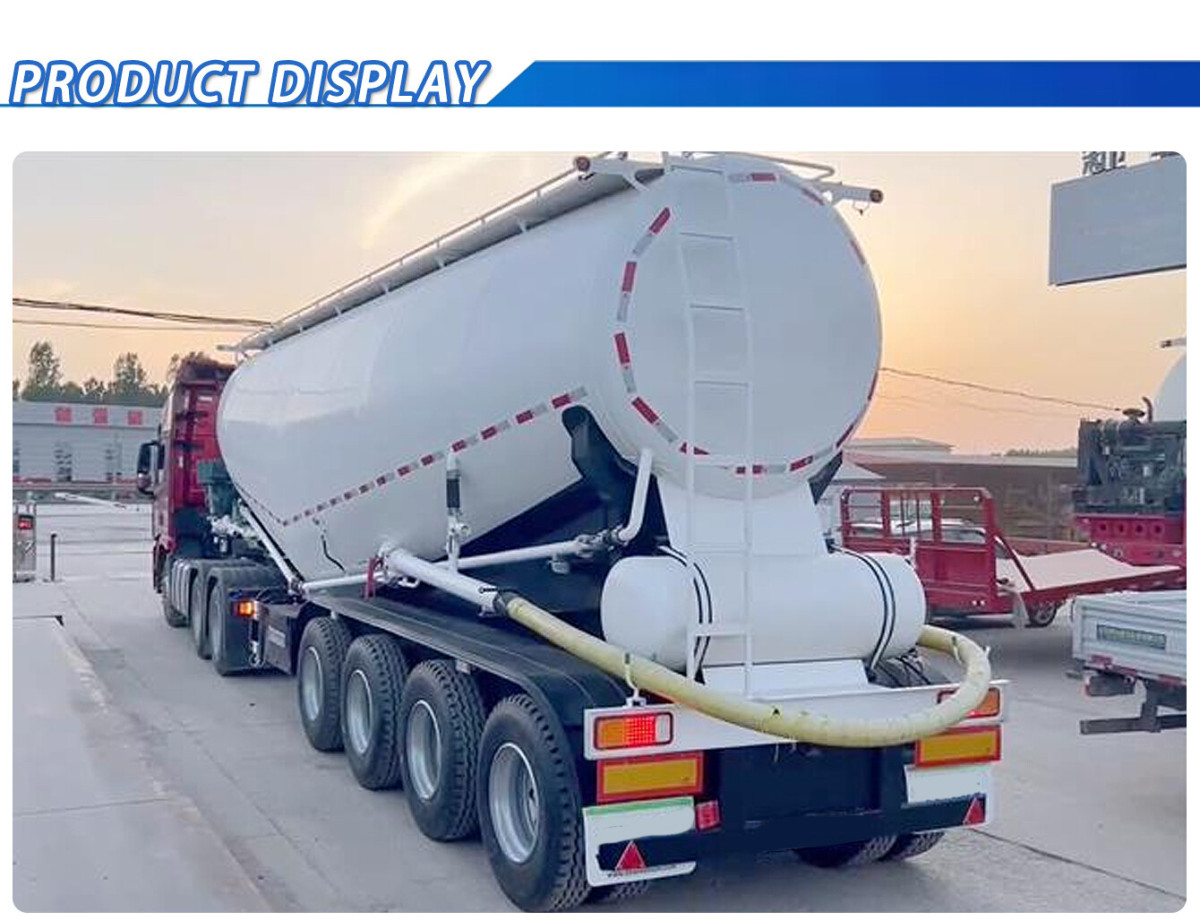

4 Axle 40m3 Bulker Cement Tanker Trailer
4 axle 40m3 bulker cement power tanker trailer tank body as a whole is made of high-strength alloy steel, with very tight welding, good airtightness, and good performance

Description

4 axle 40m3 bulker cement power tanker trailer tank body as a whole is made of high-strength alloy steel, with very tight welding, good airtightness, and good performance, and also adopts advanced technology, fluidized bed, non-planning structure, gas material separation device, and safe discharge device, which effectively reduces the weight of the vehicle and improves the discharge speed.


Specifications

  Dimension  11200mm * 2000mm *4000mm
  Tanker body material  5mm high strength wear-resistance steel
  Payload  40CBM
  Axles  4 axles
  Tire  16 units
  Application  transport lime, cement, powder etc
  Tank body thickness  3.5mm
  Compressor  12m³ double cylinder air compressor
  Spare tire rack  2 units
  Leaf spring  10 pieces
  Sprinkler  one sprinkler; car waxing
  Suspension  Heavy-duty mechanical suspension
  Landing gear

  JOST

  Brake system  WABCO
  Light  LED light (especially intended for oversea markets)
  Voltage  24V
  Tool box  1 set
  Painting  Polyurethane paint, with long service life, and avoid the vehicle getting rust
