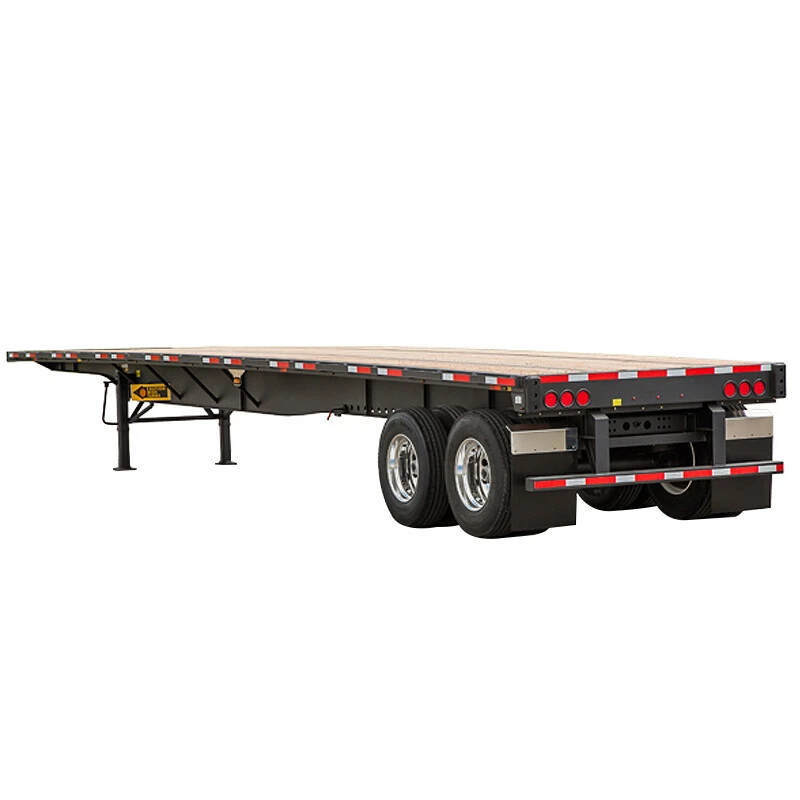

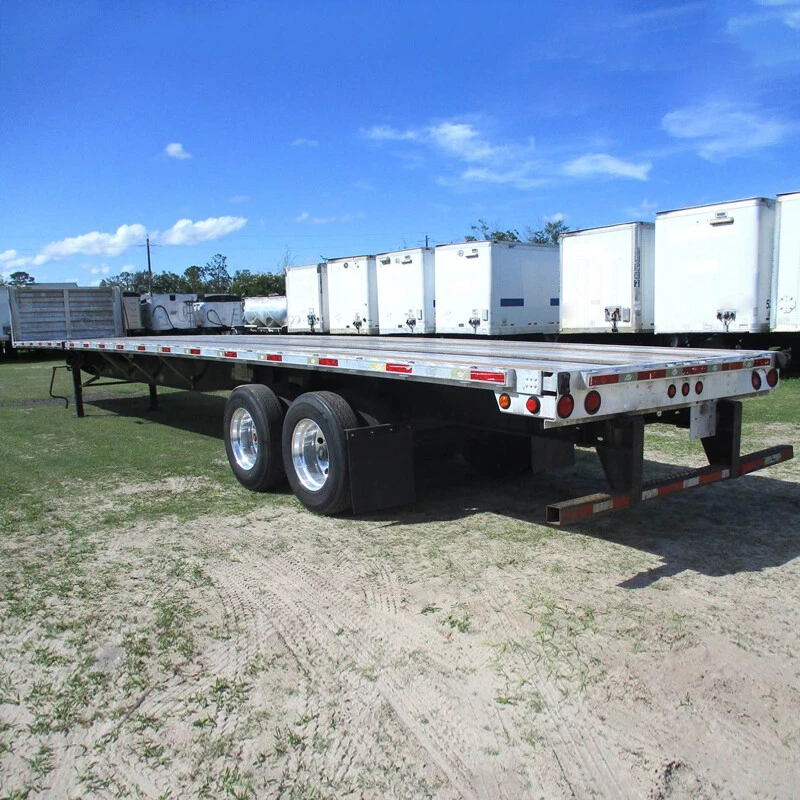

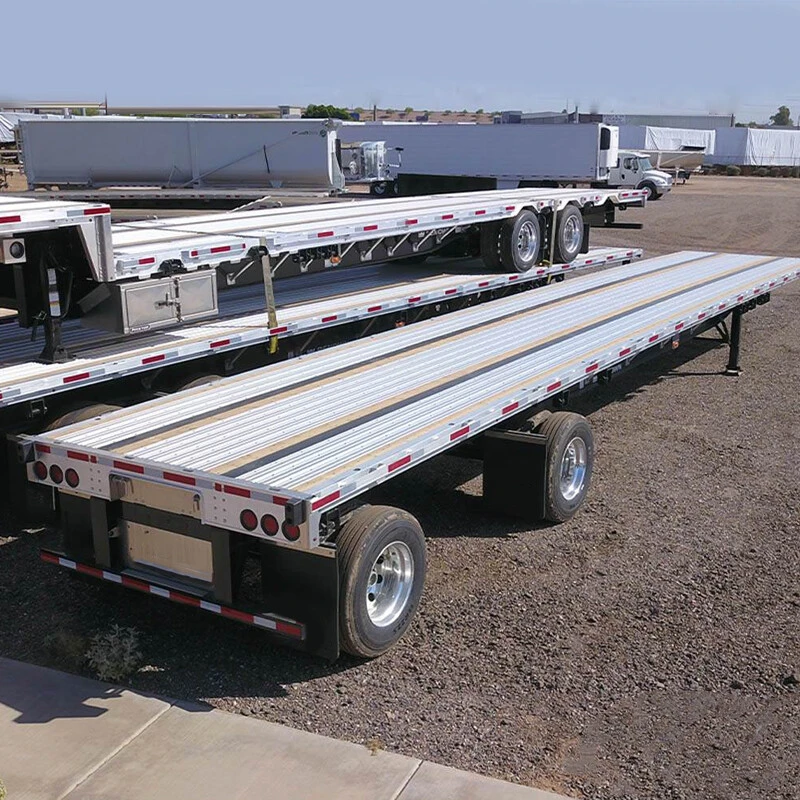

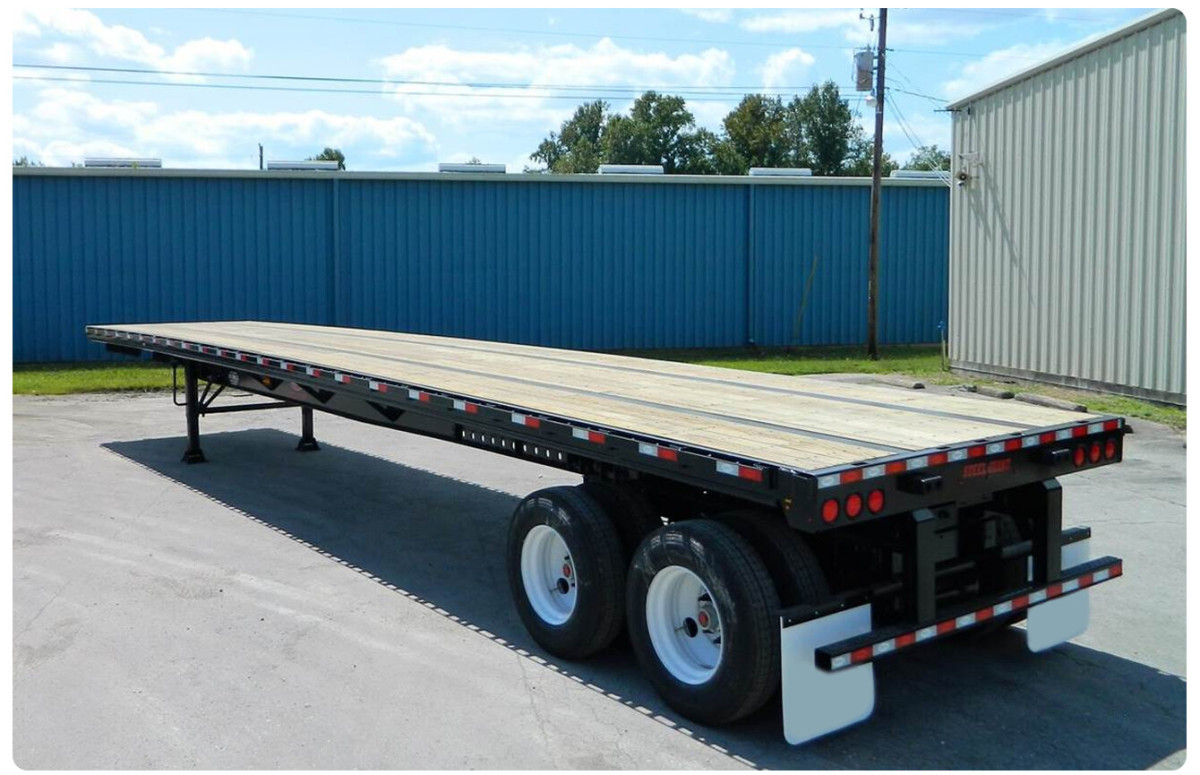

This 2 Axles 40ft single-point suspension Flatbed Trailer is mainly used to carry the 20ft40ft container, bagged cement, and the other kind of bulk cargo.

Dimension:

Length: Approx 13332 mm

Width: Approx 2,480 mm(including mudguard)

Height: Approx 1,600mm @ unload

Weight:

Tare Weight (Tolerance 0~-4%): Approx 7,500 kg

Max. Payload: Approx 40,000 kg

Gross Vehicle Weight: Approx 47,500 kg

Steel Structure:

1. Material: High strength low alloy steel Q345 and Q235 is used for welded I-beam and fabricated parts.

2. King Pin: 3.5" bolted kingpin.

3. Twist lock: 12 units ISO retractable twist locks.

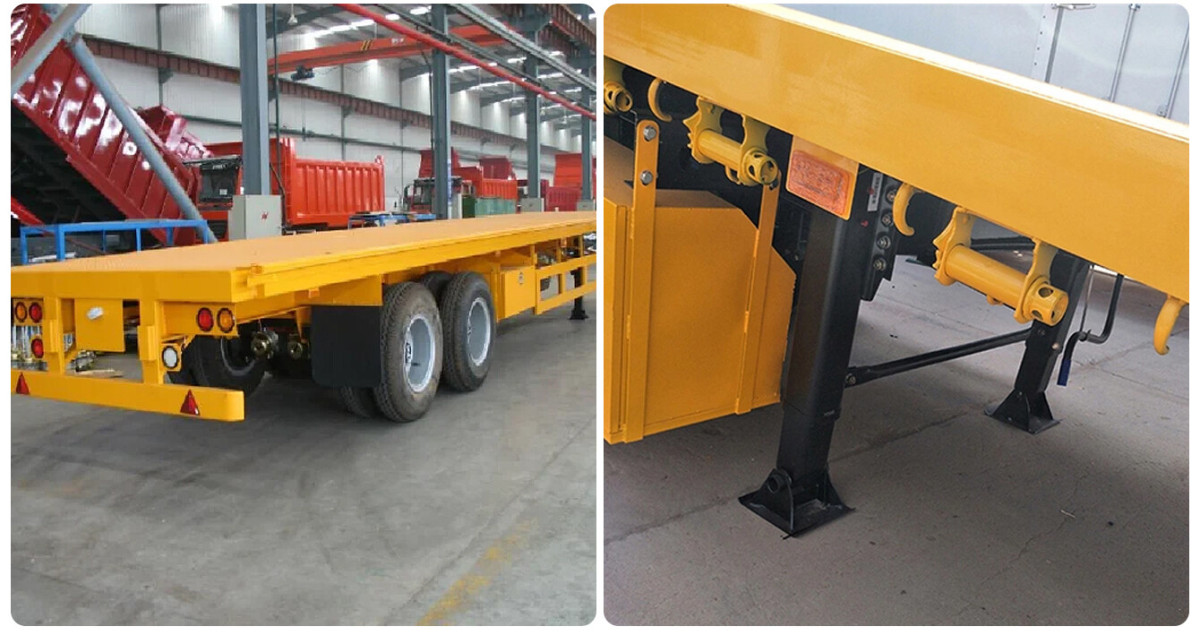

4. Landing Gear: Static load 70T

5.Suspension: Heavy duty mechanical spring suspension with equalizer, 8-leaf spring.

6.Axles: 3*13 tons capacity

7.Tires: 12R22.5,11r22.5,315,385, tubeless tire. 13pcs. Made in China.

8.Brake System: Dual air brake system, WABCO relay valve, No ABS system.

9.Brake chamber: double-structure air brake chamber,American suspension

10.Electrical System: 24-volt lighting system, 7-way receptacle, Chinese standard.
