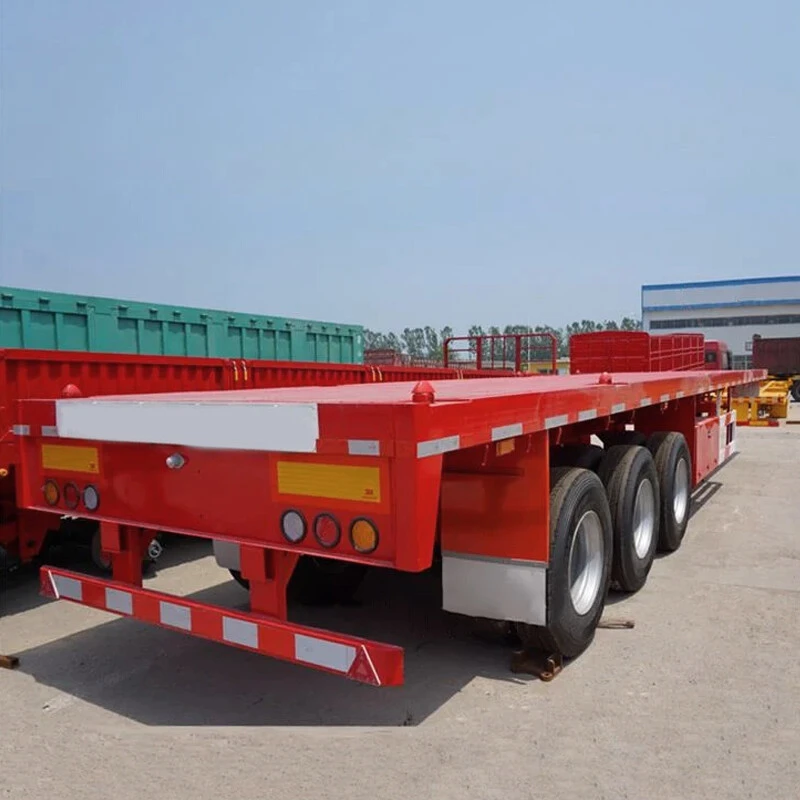

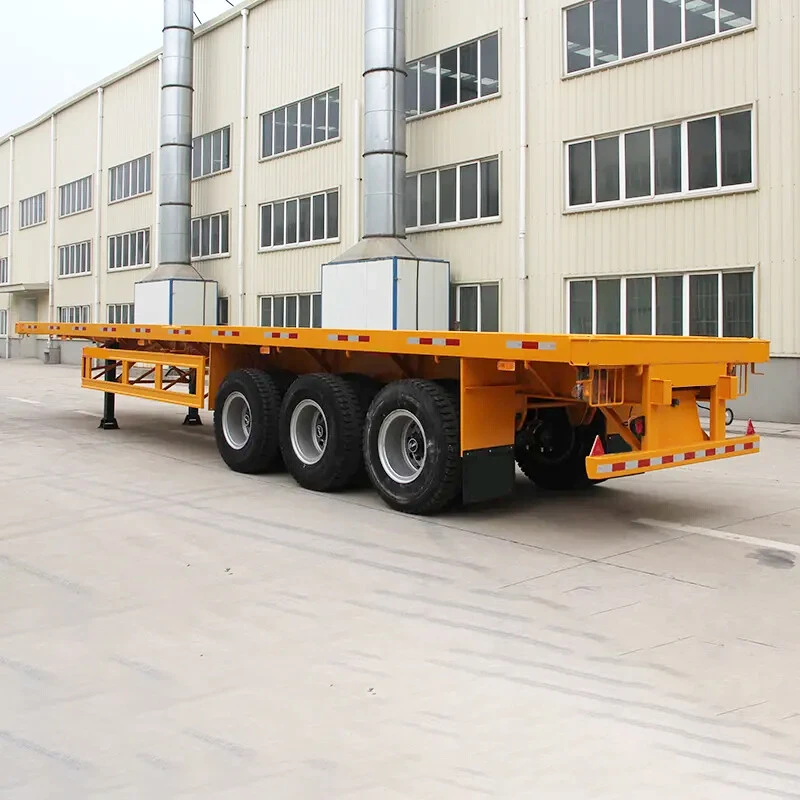

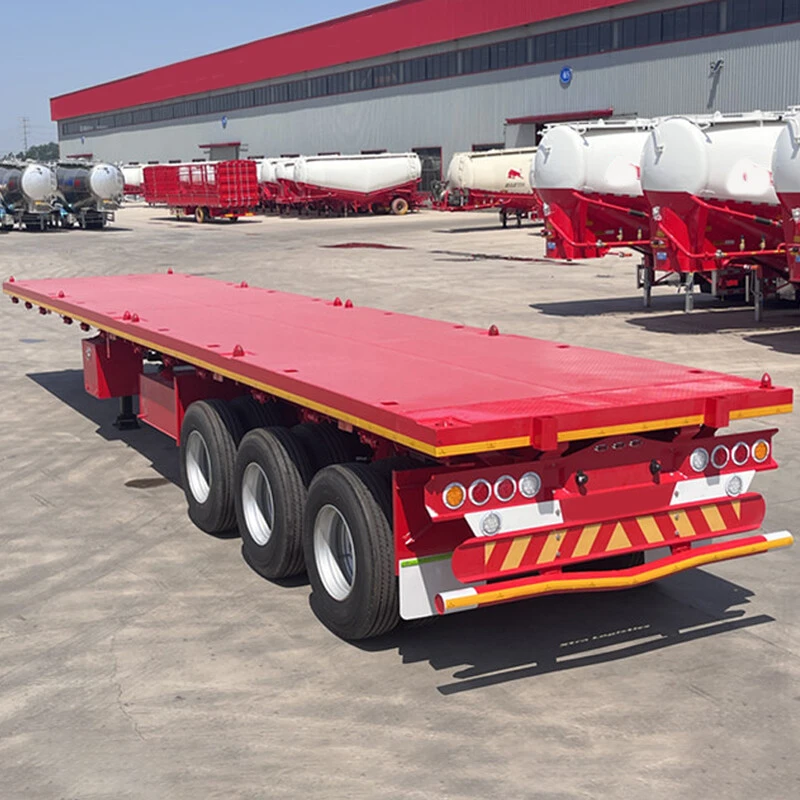

This flatbed trailer is mainly used to carry the 20ft40ft container, bagged cement, and the other kind of bulk cargo.

Dimension:

Length: Approx 12,400 mm

Width: Approx 2,480 mm(including mudguard)

Height: Approx 1,600mm @ unload

Weight:

Tare Weight (Tolerance 0~-4%): Approx 8,500 kg

Max. Payload: Approx 60,000 kg

Gross Vehicle Weight: Approx 68,500 kg

Steel Structure:

1. Material: High strength low alloy steel Q345 and Q235 is used for welded I-beam and fabricated parts.

OEM Parts Configuration, floor: wood 310mm in thickness.

2. King Pin: 3.5" bolted kingpin. Brand: JOST.

3. Twist lock: 12 units ISO retractable twist locks.

4. Landing Gear: JOST E100 landing gear.

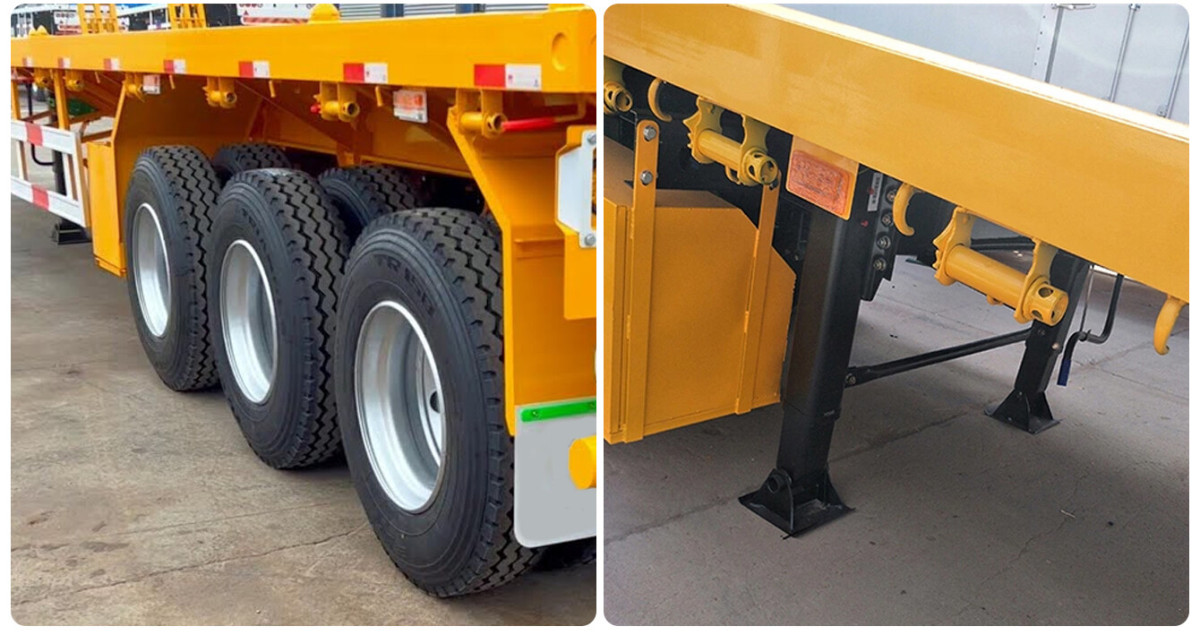

5.Suspension: Heavy duty mechanical spring suspension with equalizer

6.Axles: 3*13 tons capacity, Fuwa brand axle

7.Tires: 12R22.5, tubeless tire. 13pcs. Made in China.

8.Fuel tanker:1,000L

9.Brake System: Dual air brake system, WABCO relay valve, No ABS system.

10.Electrical System: 24-volt lighting system, 7-way receptacle, Chinese standard.
