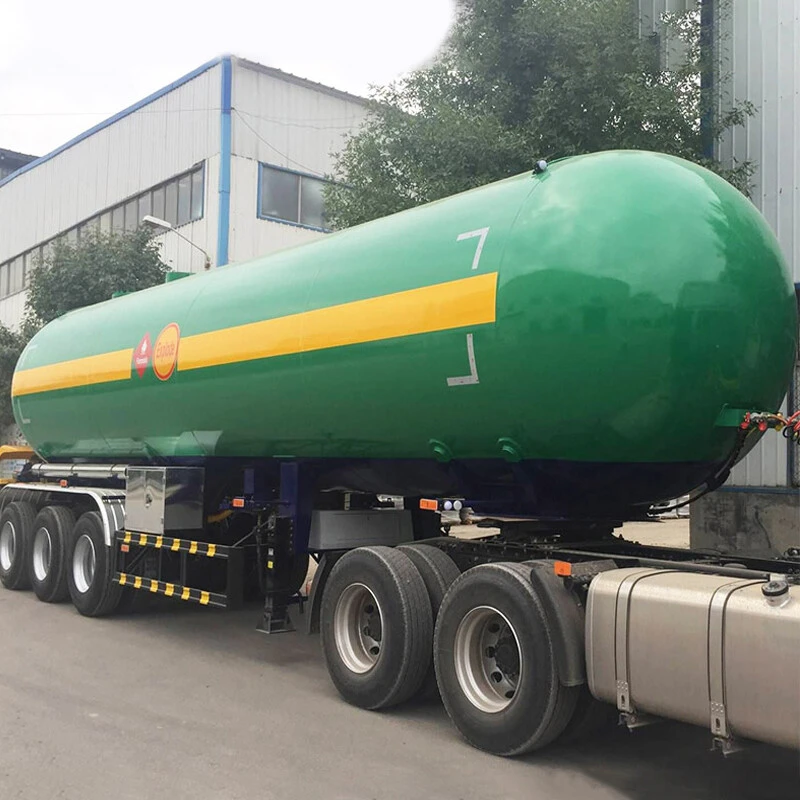

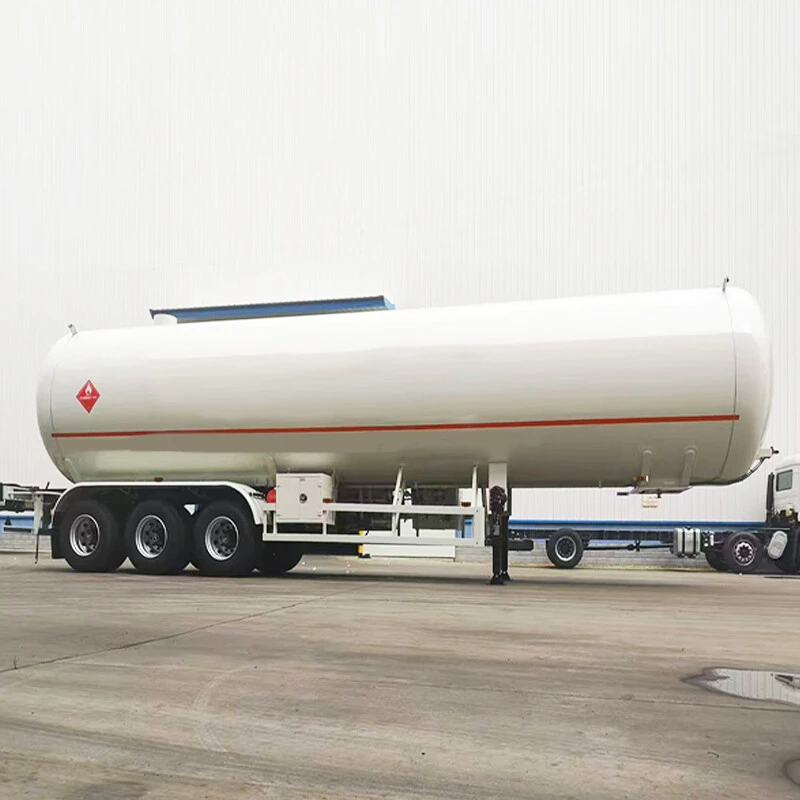

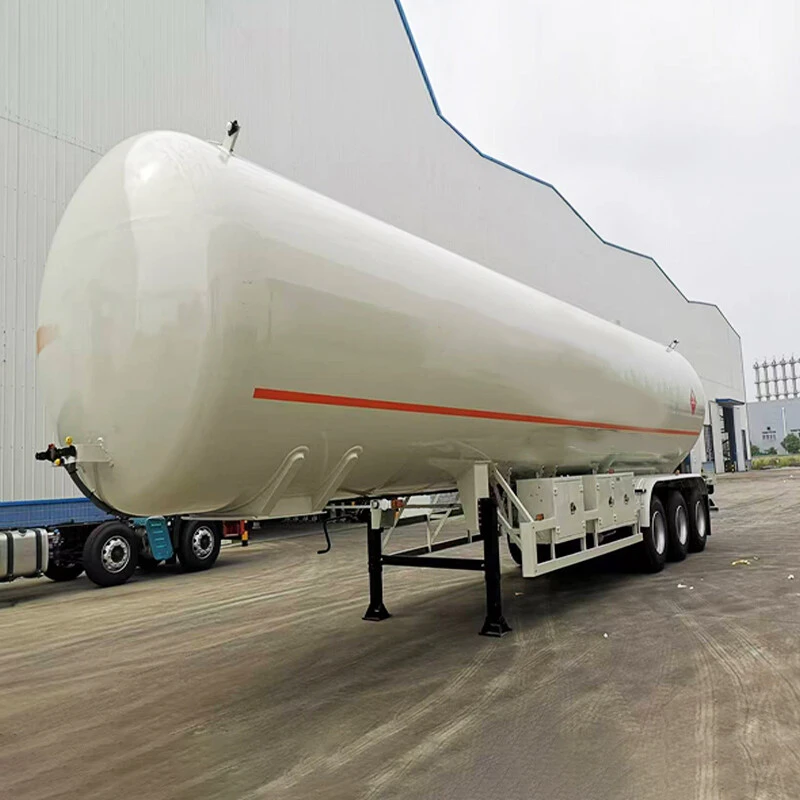

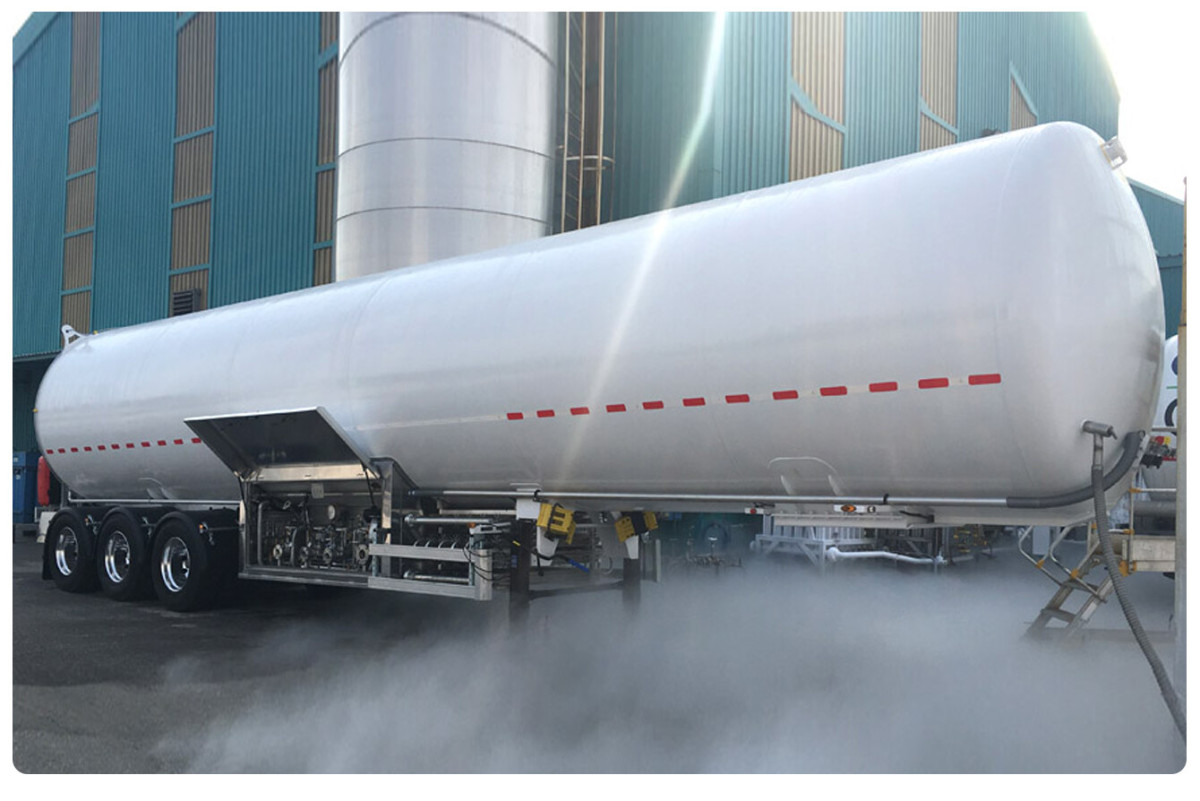

Name: 3 Axle LNG Tank Semi-Trailer With Vacuum Insulation
SKU: 0

Product



3 Axle LNG Tank Semi-Trailer With Vacuum Insulation

Item NO.:3 Axle LNG Tank Semi
Lead Time:20-30DAYS
Product Origin:China
Shipping Port:ANY PORT, CHINA
Color:OPTION

Description

Specifications

Feature	Carry Liquid Natural Gas
Dimension(LWH)	1315025004100mm
Overall Dimension(mm)	13000×2500×3900
Material	Inner Tank：16MnDR(Q345R) Outer Skin：16MnDR(Q345R)
Heat Insulation Type	Vacuum Insulation
Curb Weight	15,200kgs
Capacity(kgs)	27,000Kg(26CBM)
Tare weight(kgs)	42,200kgs
Kingpin	JOST brand bolt-in/welded type 3.5”/2”
Landing gear	JOST brand two-speed manual operation 19”

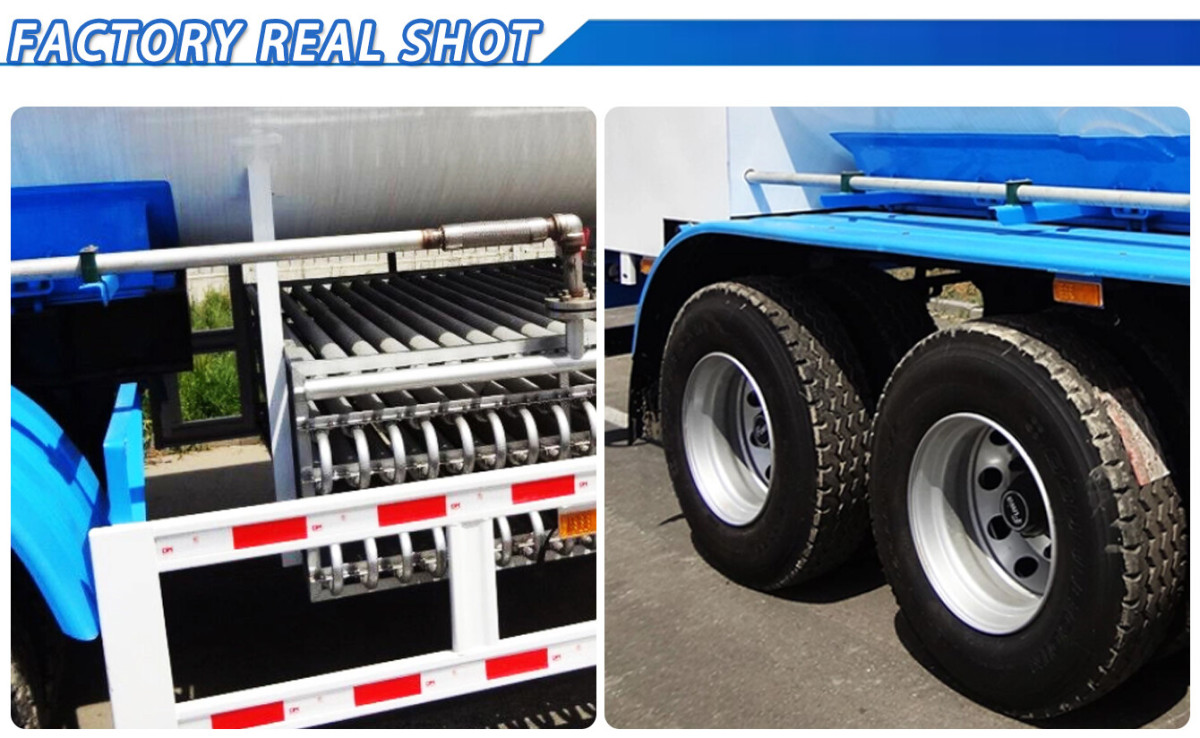

Tire size	11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
Rim size	8.2522.5、9.0022.5、11.75*22.5
Axle	Original BPW-12T/ FUWA-13T
Leafs spring	Germany type with 12pcs of leafs spring/ Fuwa brand with 10 pcs of leafs spring/ Airbag suspension
Brake system	One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Design Pressure	2.28MPa
Pneumatic Test Pressure	2.63MPa
Air Test Pressure	2.28MPa
Design Temperature	-167℃
Liquid-phase Inlet&Outlet	DN50
Vapor-phase Inlet&Outlet	DN40
Pipe of the main safety Valve	2 x 2 safety valves set at 22.0 bar (319.0 PSI)

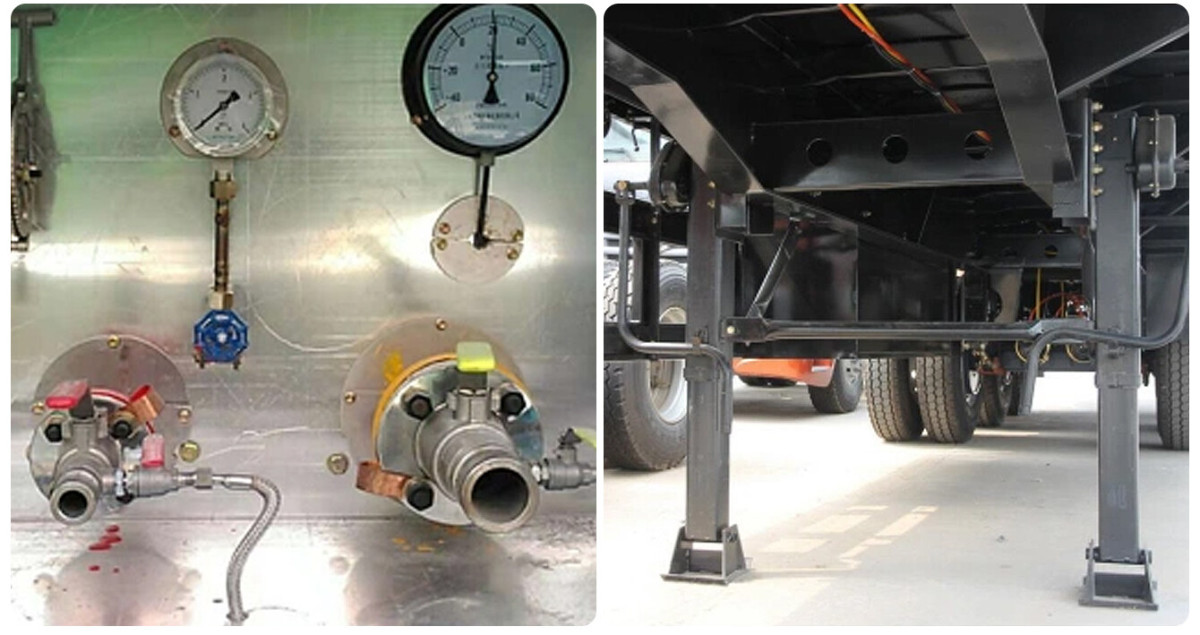

Pressure Gauge	2 pressure gauges(front and rear),equipped with isolation valve
Pump System	Difference Pressure: 3.5 bar Flow rate: Ca 20,000 Kg/ h Motor : 220/ 380 V / 50 Hz + 60 Hz / 5.5 kw
