Name: 3 Axles 40 CBM Milk Tank Trailers
SKU: 0

Product



LOCATION： Home > Products > Tanker Trailer > 3 Axles 40 CBM Milk Tank Trailers

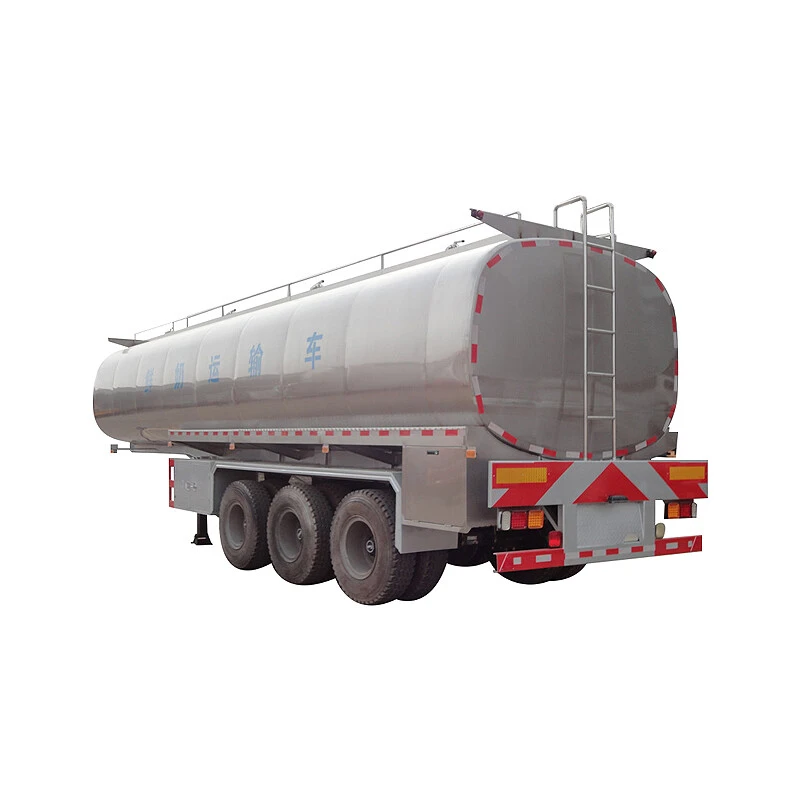

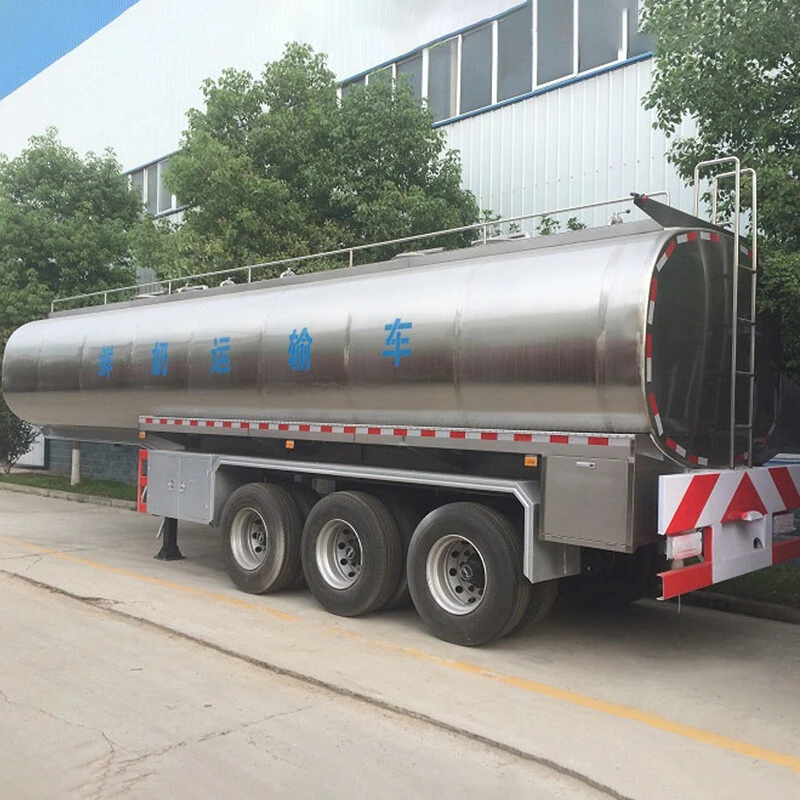

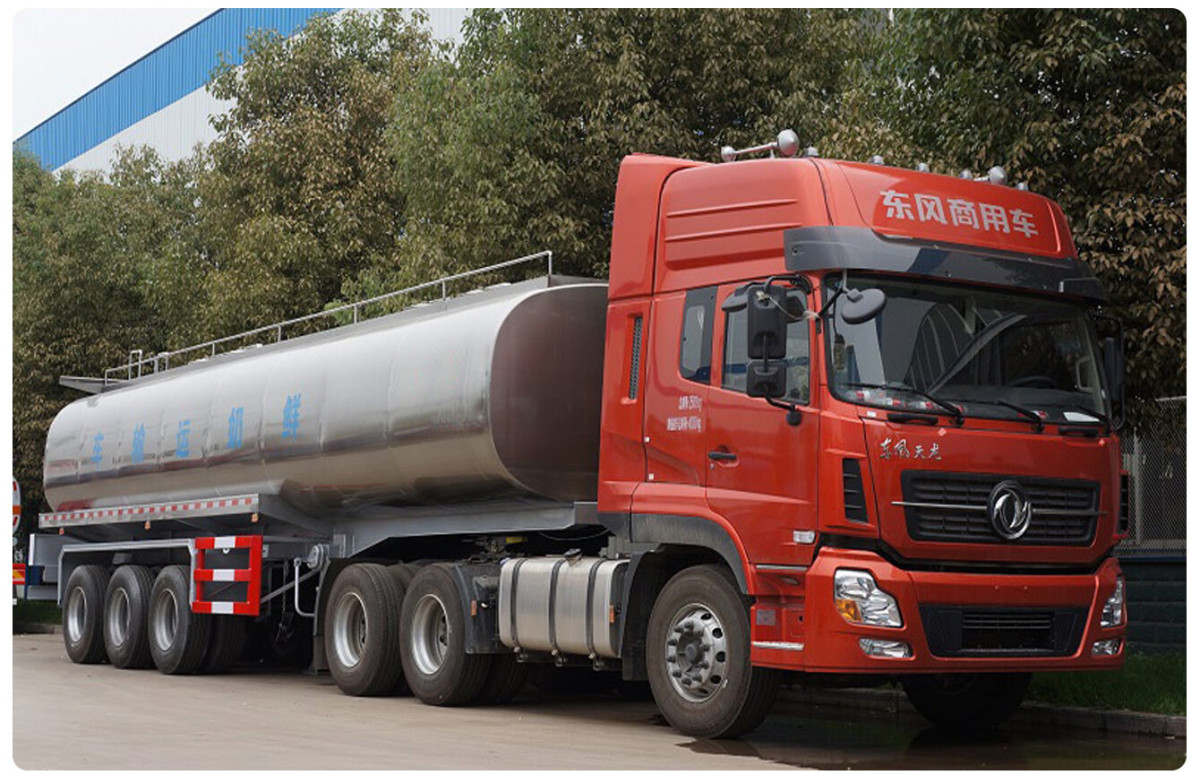

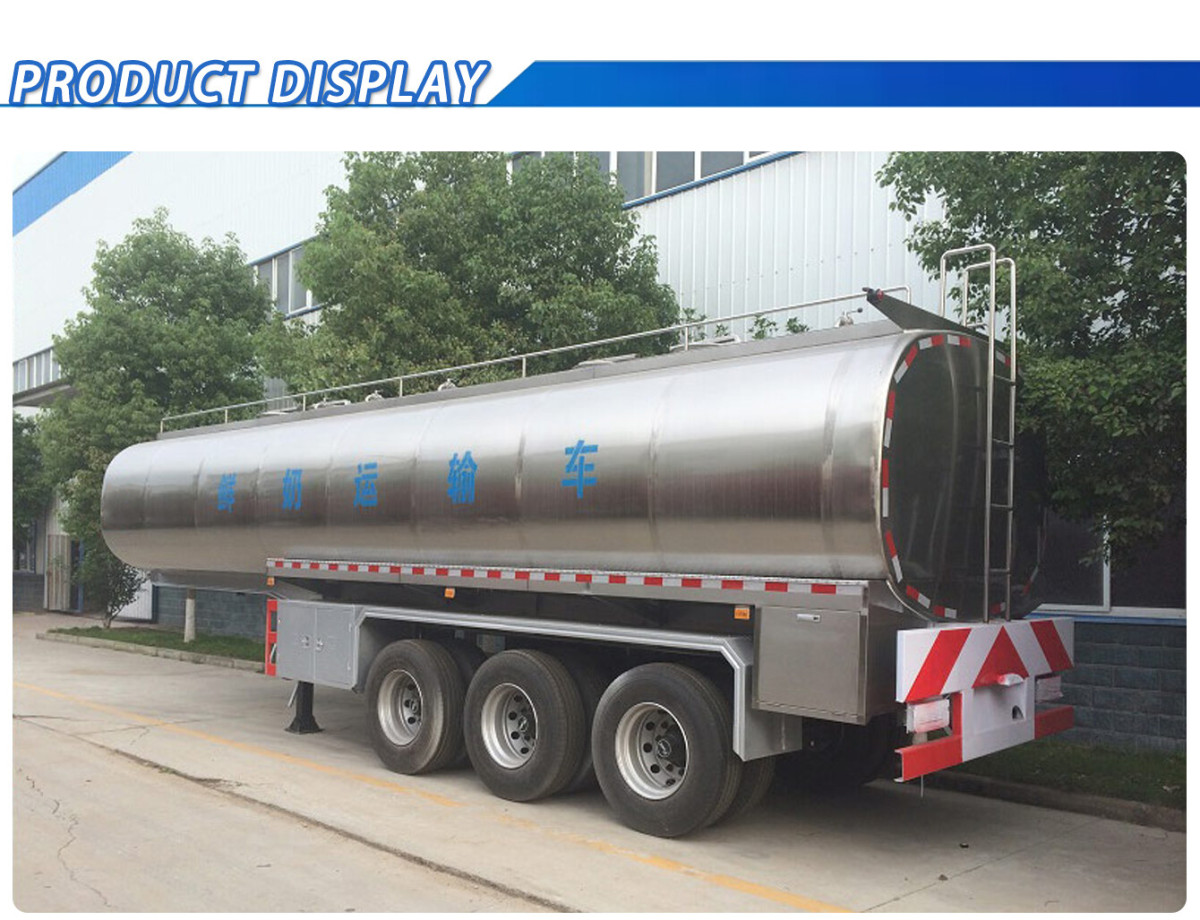

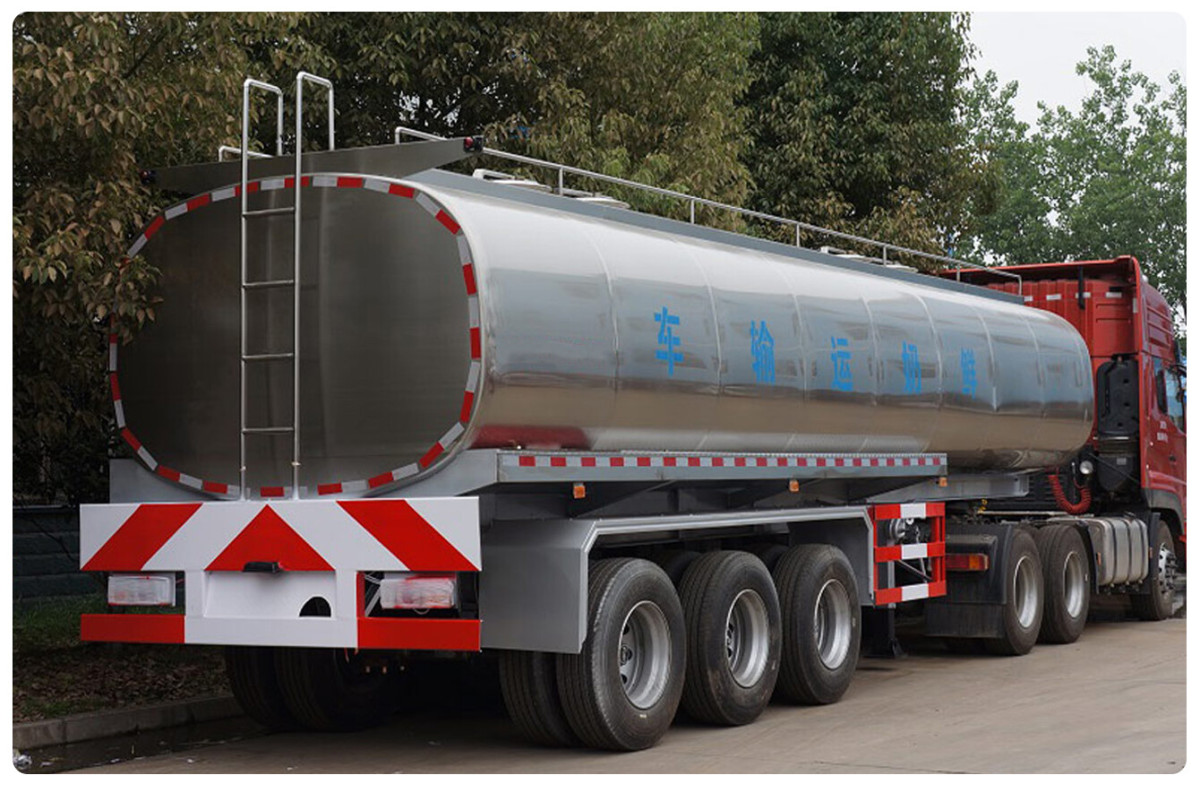

3 Axles 40 CBM Milk Tank Trailers

Milk tank truck, also known as transportation truck, is used for transport the fresh milk and other liquid medium etc. Besides, the milk tanker truck is equipped food type 304-2B stainless material.

Description

Specification

Item	Unit	Parameter
Vehicle model	CLW9400GNY
Overall dimensions	mm	12600×2500×3850
Fact cubage	L	40700
Gross weight	kg	40000
Curb weight		8200
Payload capacity		31800
Axle load		24000
Tank external dimensions	mm	12240/2480/2110
Tank internal dimensions		12080/2320/1950
Wheelbase		6850+1310+1310
Rear track base		1840/1840/1840
Rear overhang		1630
Departure angle	°	12
Number of axles	3
Number of tires	12
Tire specifications	11.00-20 12PR,11.00R20 12PR,11R22.5 12PR
Equipment	1. Tank Material: stainless steel 304-2B for food delivery.
	2. Insulation layer material: polyurethane foam/80mm
	3. Heat preservation ability: less than 1°C within 24 hours

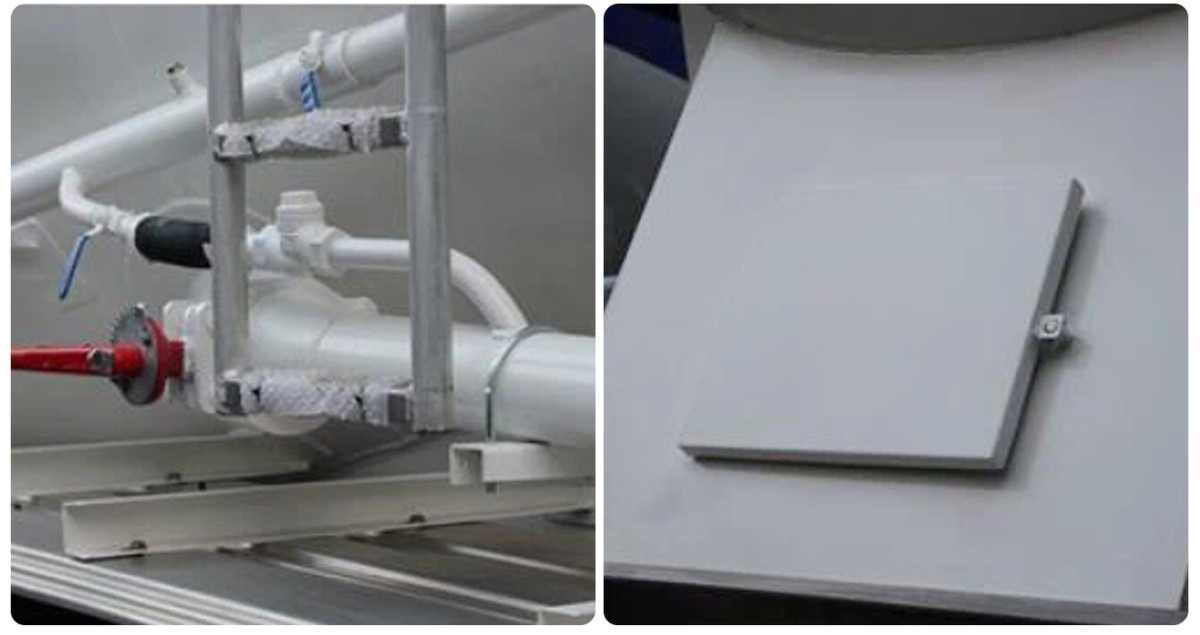

	4. There's cleaning equipment inside the tank, washing tube( Φ38mm ), four or even more rotation sprayers, external water tube, the tank can sellf wash with little pressure
Body Paint	anti-corrosion, color according to customer's requirements
