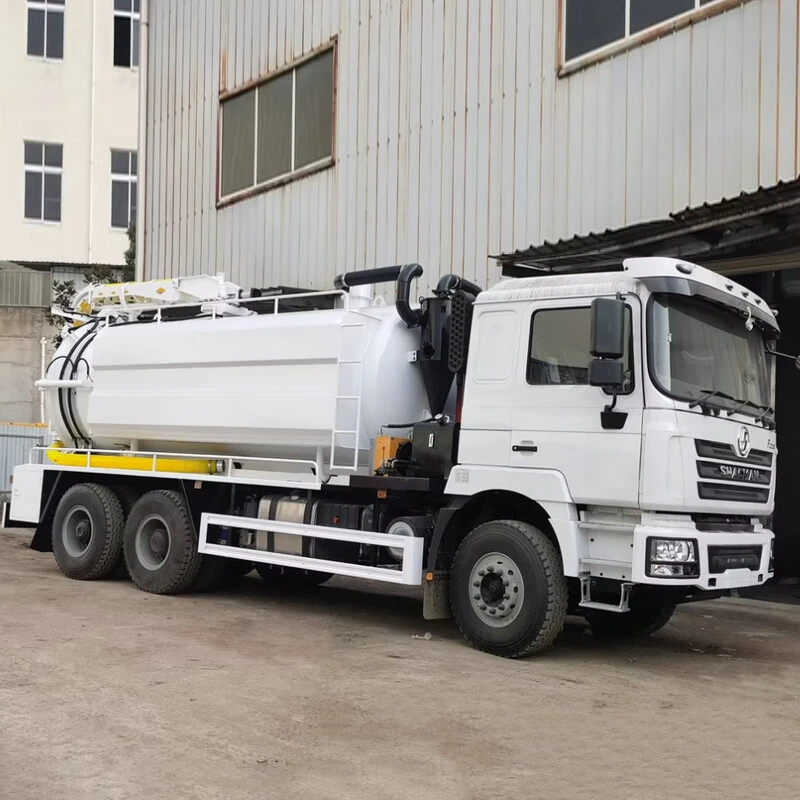

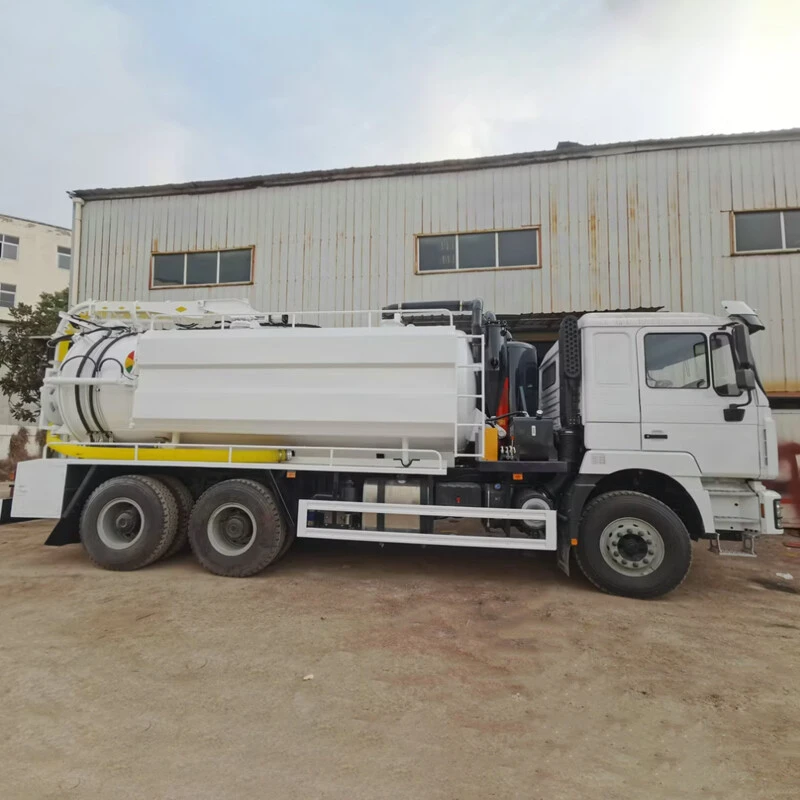

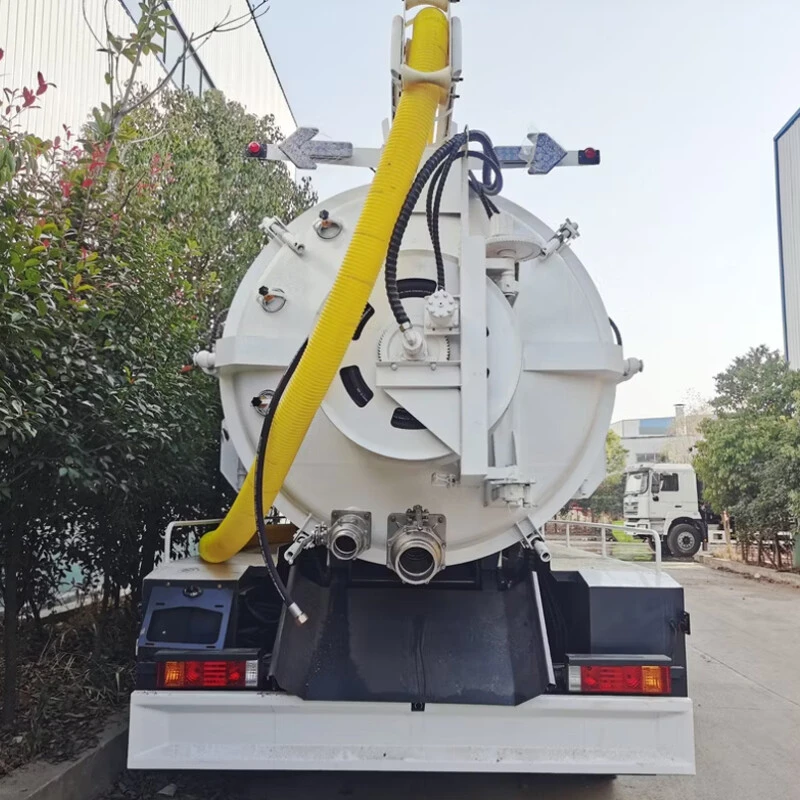

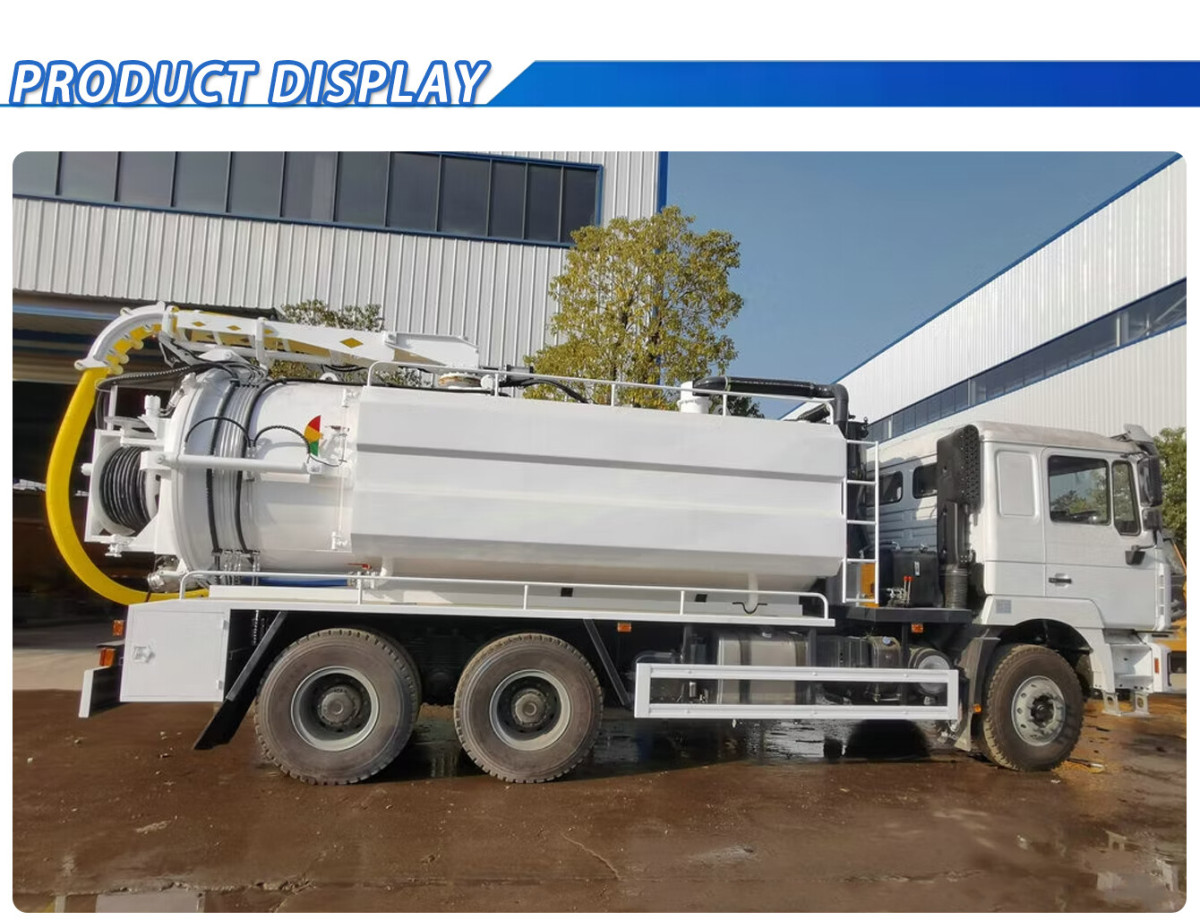

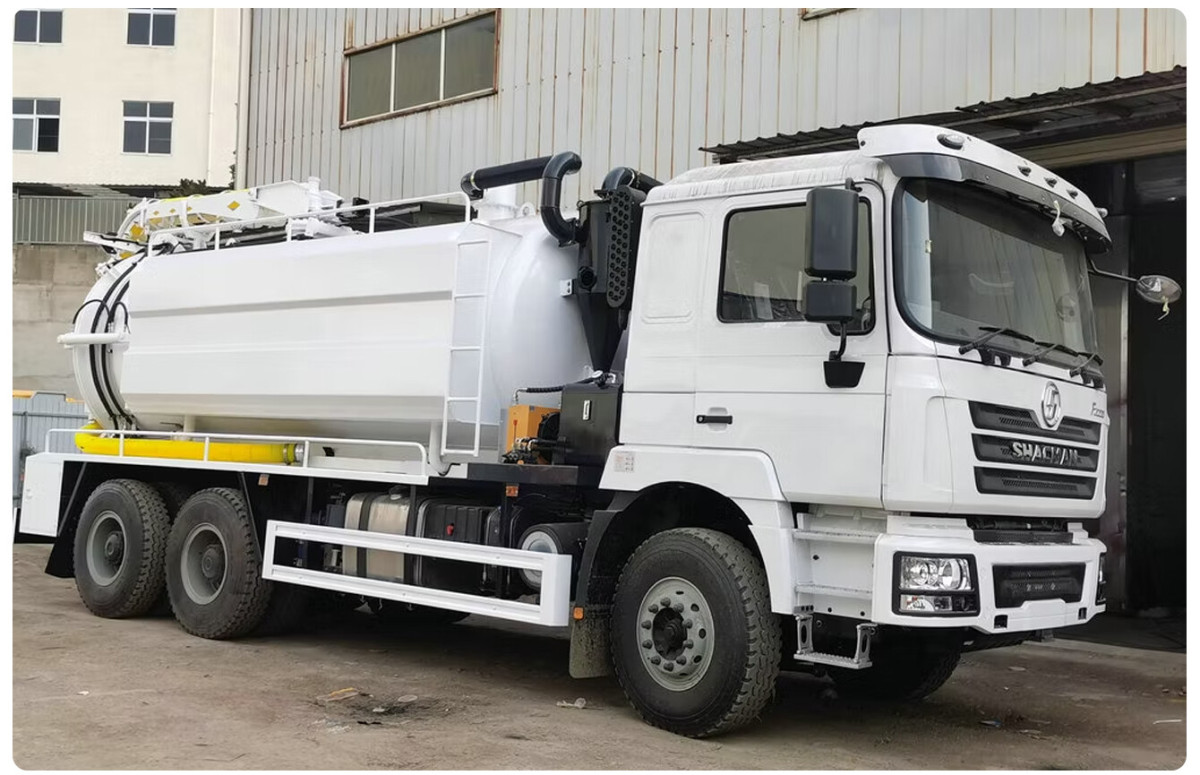

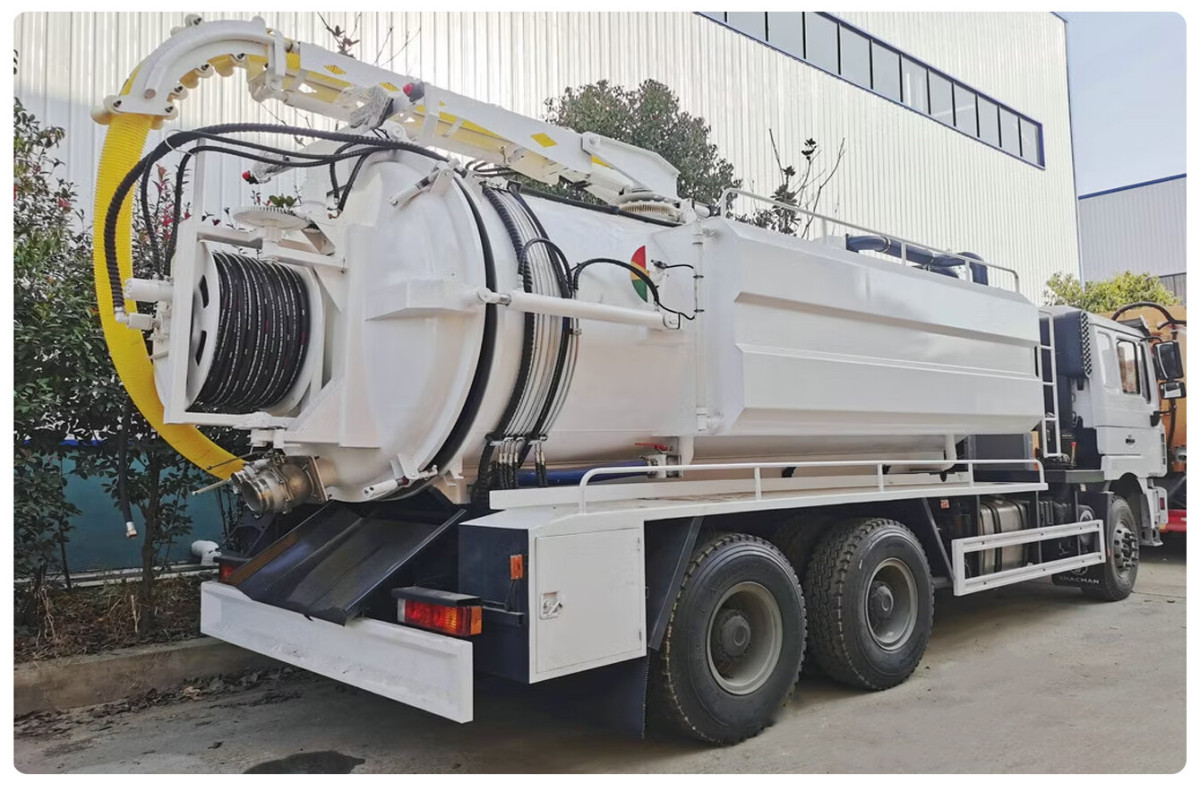

Name: SHACMAN H3000 6x4 20000 Liter Pipe Cleaning Vacuum Sewage Suction Truck
SKU: 0

Product



SHACMAN H3000 6x4 20000 Liter Pipe Cleaning Vacuum Sewage Suction Truck

Brand: SHACMAN
Tank Volume:20000 liter
Engine: Weichai 340HP Euro2
20.5m3/h vacuum sewage pump
Suction height: 8 meters

Description

Specifications

Chassis brand	SHACMAN
Wheeldrive	6x4,LHD (RHD available)
New or Used	New
Overall dimension	9680x2500x3250mm
Gross weight	25000kg
Curb weight	10850kg
Designed load	14150kg
Wheelbase	4350+1400mm
Engine power	Weichai WP10.340E22 340HP Euro2
Fuel type	Diesel
Transmission	Manual,10-Forward and 2-Reverse
Brake	Full air brake
Axle load	1st axle: MAN 7.5 ton 2nd axle: MAN 16 ton 3rd axle: MAN 16 ton


Tire	10+1 pcs,12.00R20 radial tires
Max speed	90km/h
Sewage Tank	Tank Volume	16000 liter
	Material	6m carbon steel tank body, 8m seal head
	Back door	Hydraulic open
Cleaning Water Tank	Volume	2x 2000 liter
	Material	Carbon steel with anti-corrosion
	Water filling	2 pcs
	Water level window	2pcs
Main Components	Sewage pump	20.5m3/h vacuum pump
	High pressure pump	215 L/min,24MPa working pressure

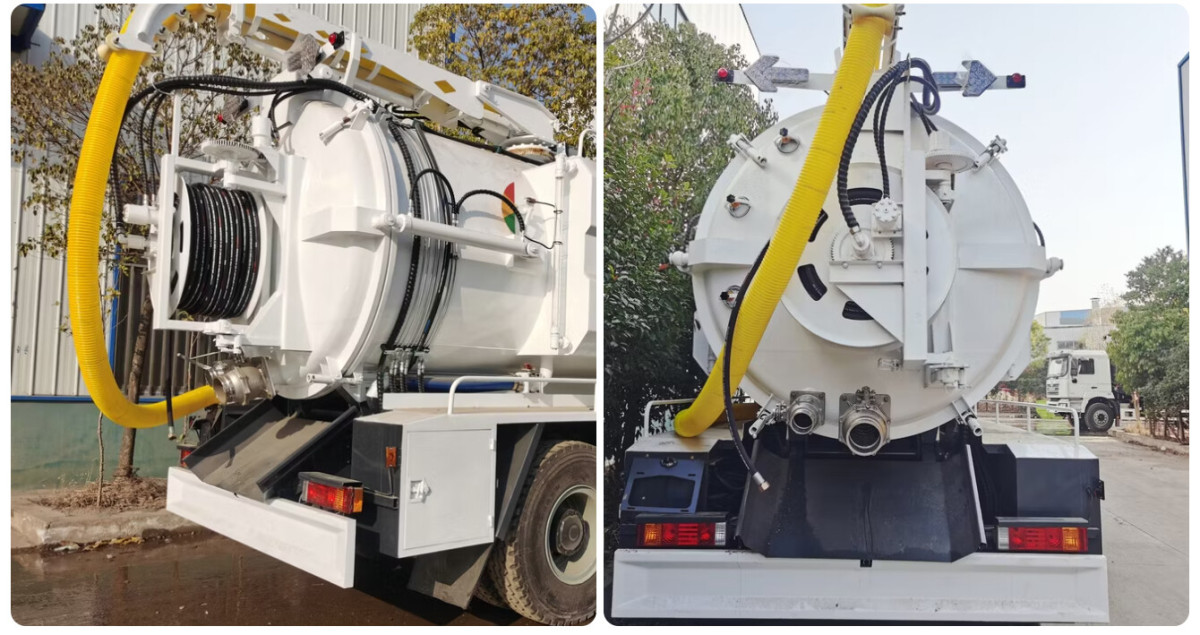

	High pressure hose reel	60m hose reel, with 10 pcs jetting nozzles
	Tank unloading	Hydraulic rear dumping

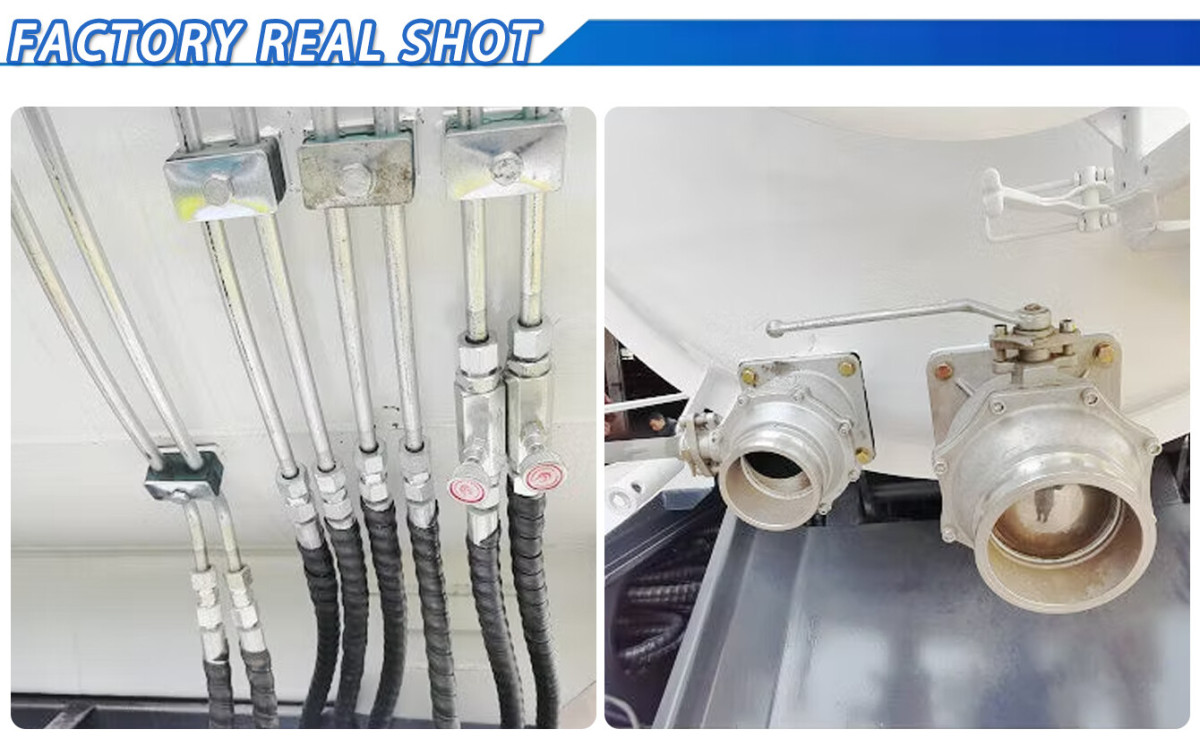

	Discharge valve	1 pcs DN150mm aluminum alloy outlet
	Back door	Hydraulic open & close
	Suction hose	1 pcs 10 meters long
	Level view-window	1 pcs
	Wash hand tank	1 pcs
Performance	Max suction depth	8 meters
	Suction full-tank time	≤15 minutes
	Positive pressure discharge time	≤12 minutes
