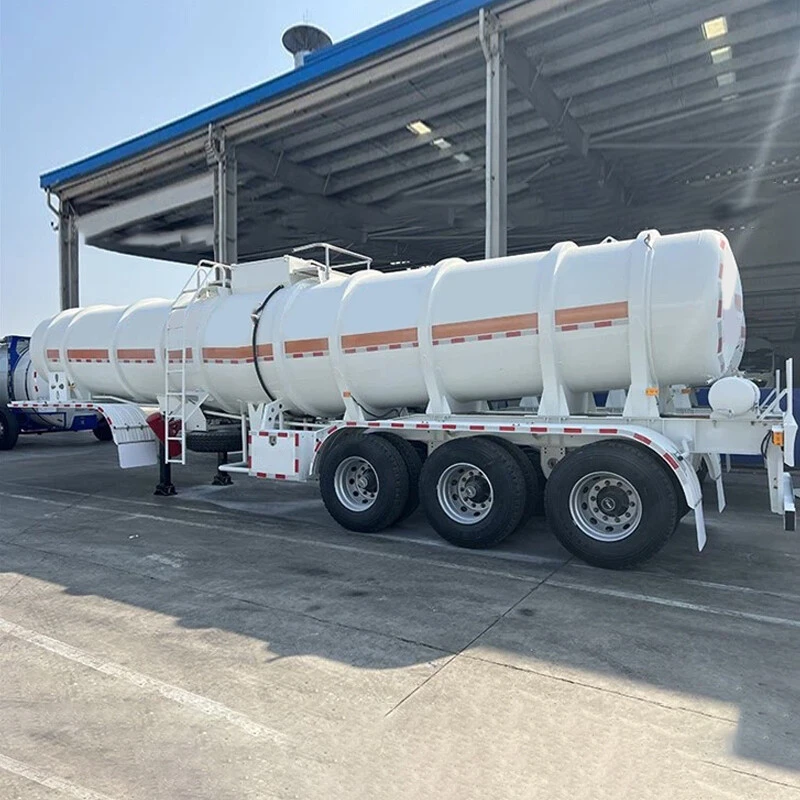

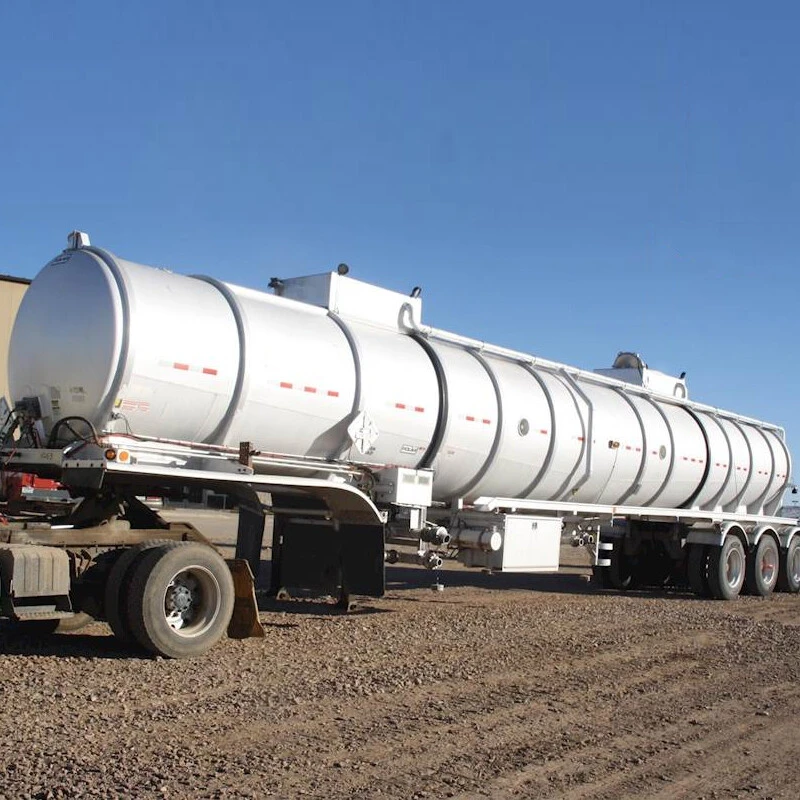

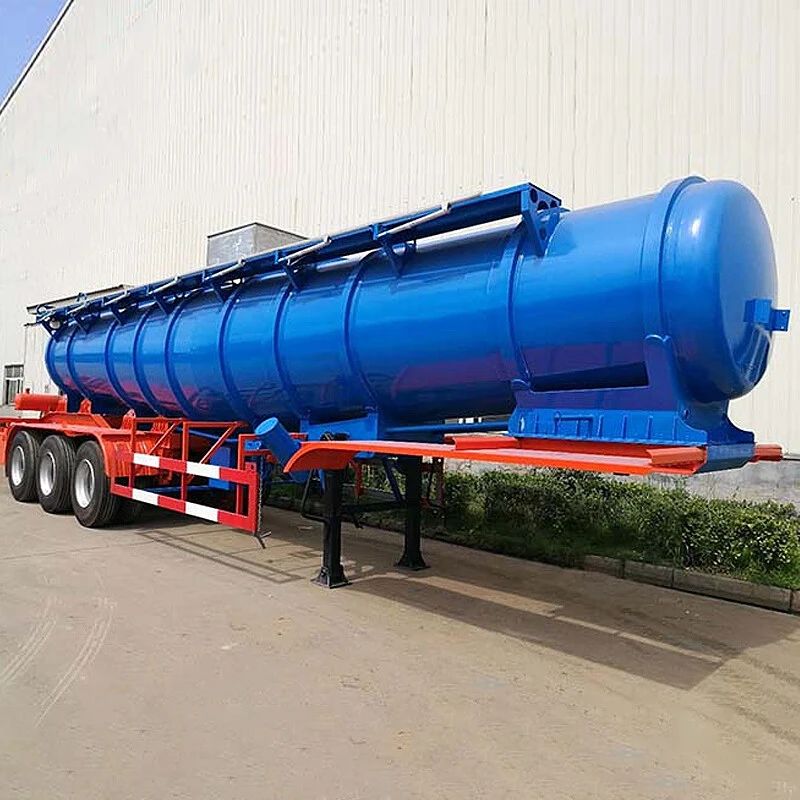

19Cbm Chemical Tankers Trailer
The materials of our chemical sulfuric acid tanker trailer are different: carbon steel, stainless steel, polyethylene + carbon steel, The hydrochloric acid tanker trailer can transport sulfuric acid, hydrochloric acid, sodium hydroxide, and phosphoric acid.

Description

Specifications

  Overall dimension  11500mm * 2500mm *3700mm
  Transport  sulfuric acid
  Manhole cover  stainless steel manhole cover
  Bottom valve  Aluminum API pneumatic bottom valve
  Axles  3 axles
  Suspension  Heavy duty mechanical suspension
  Tire  12 units
  Discharging Pipe  4'' rubber pipe, 6m/piece, 2 pieces
  King pin  2/3.5 inch
  Landing gear  JOST
  Brake system  2 line pneumatic brake system
  Electrical system  Chinese standard 24V; 7 ways receptacle; LED lamps




Advantage:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.

5. The waved board reduces the impact of the liquid on the tanker.

6. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

7. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.
