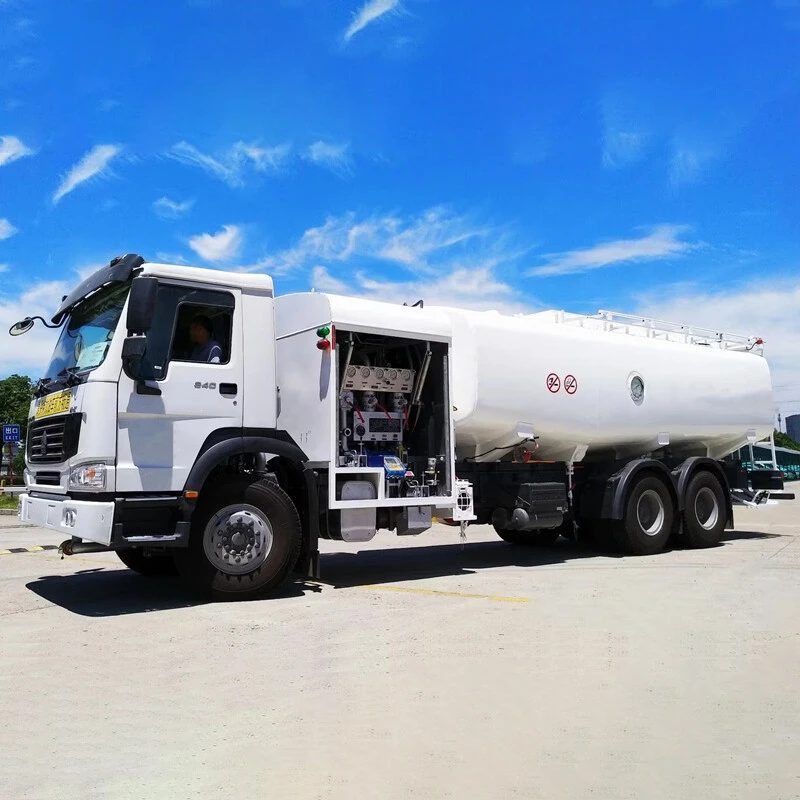

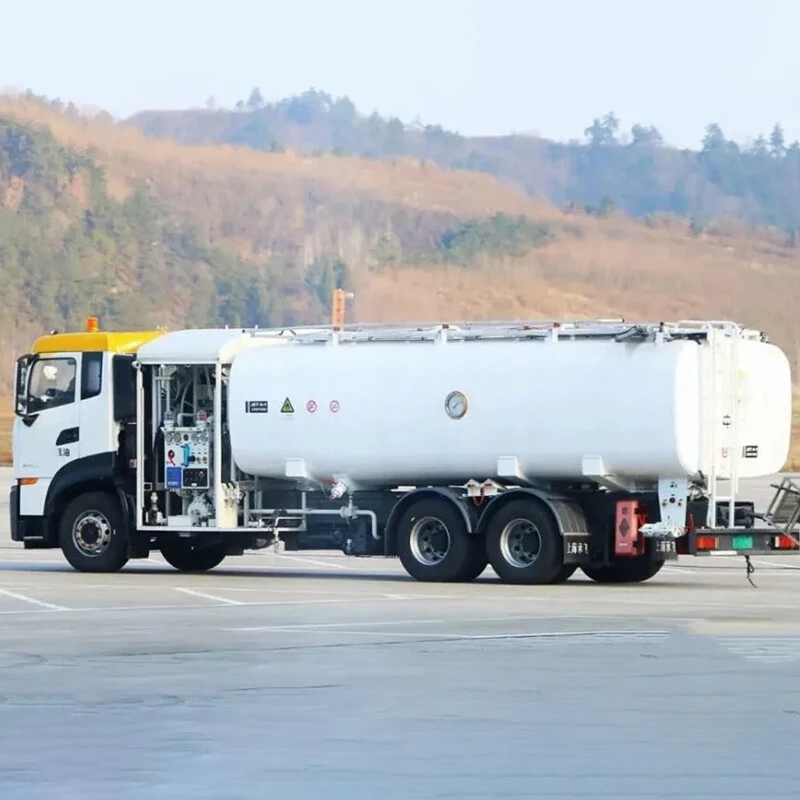

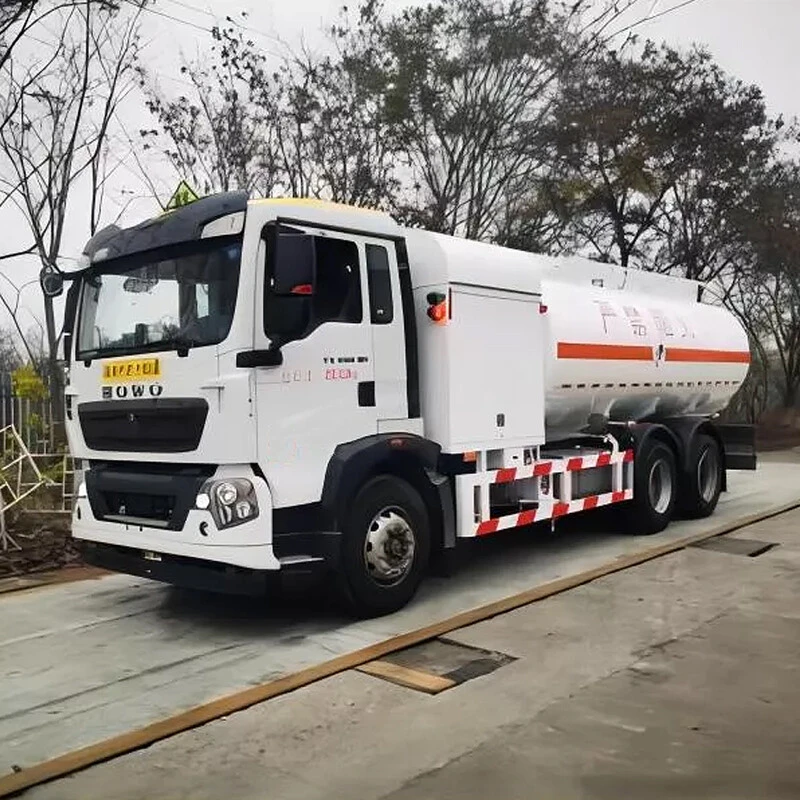

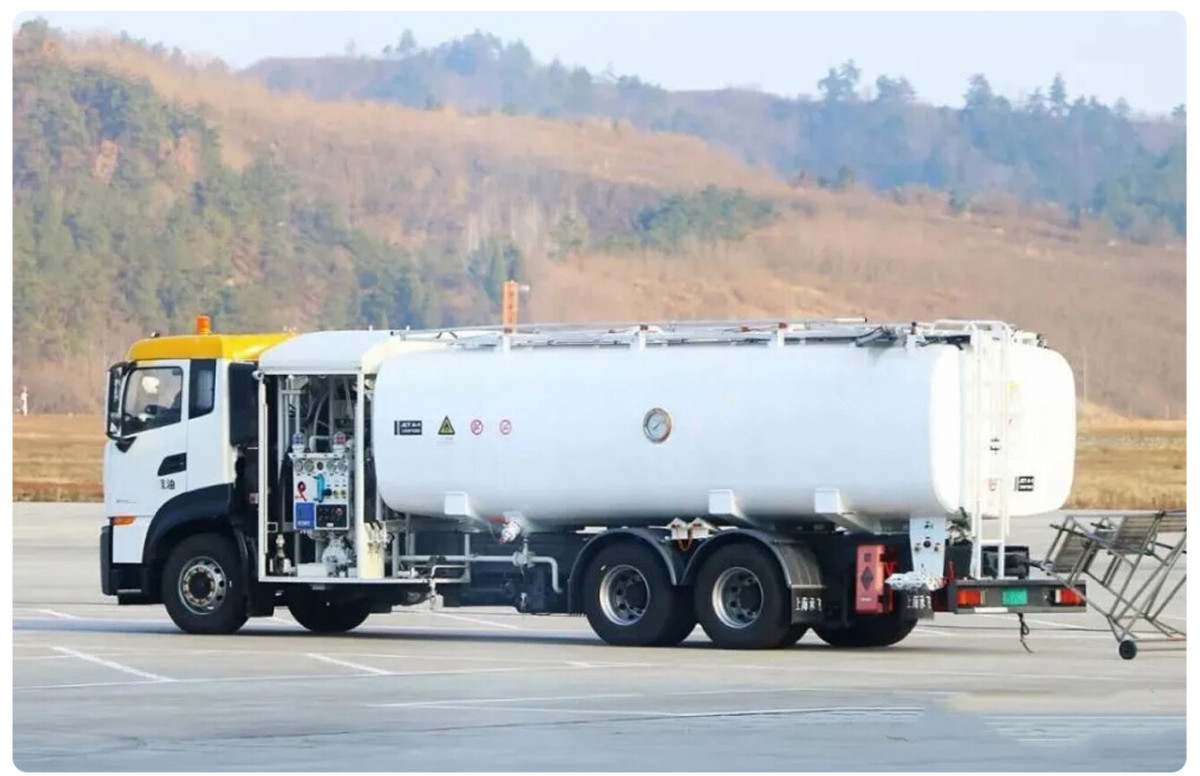

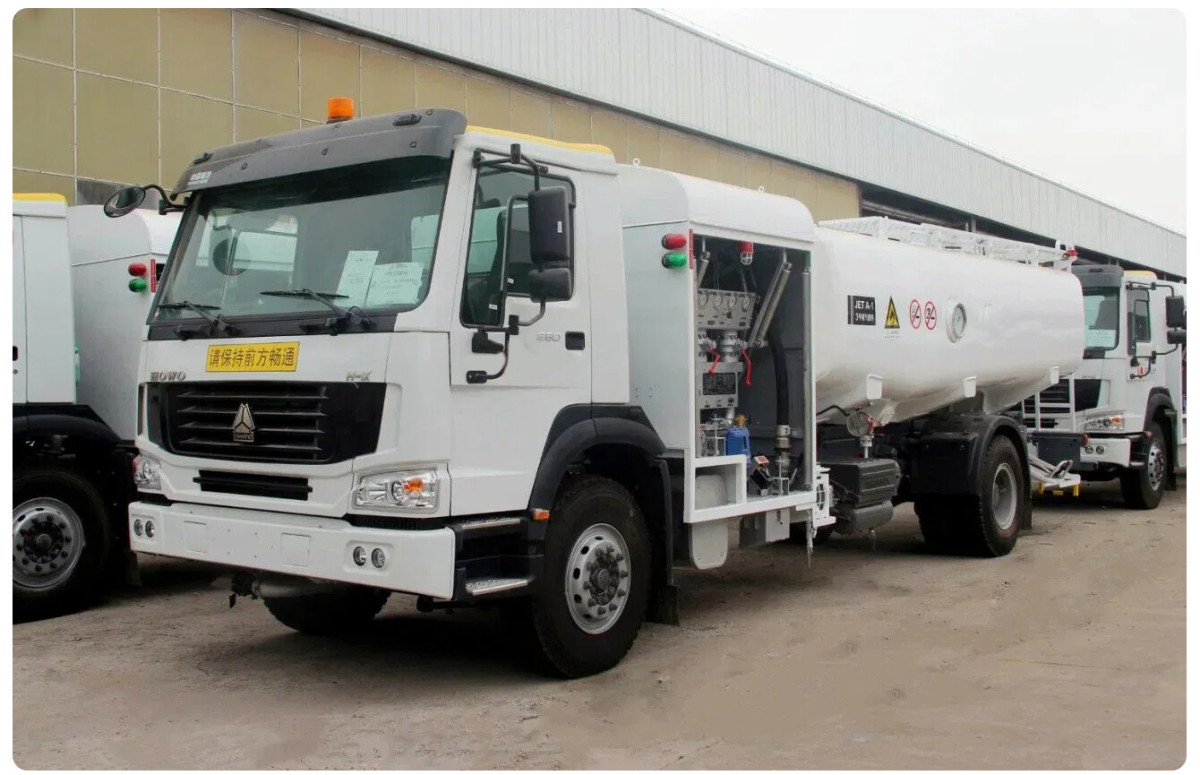

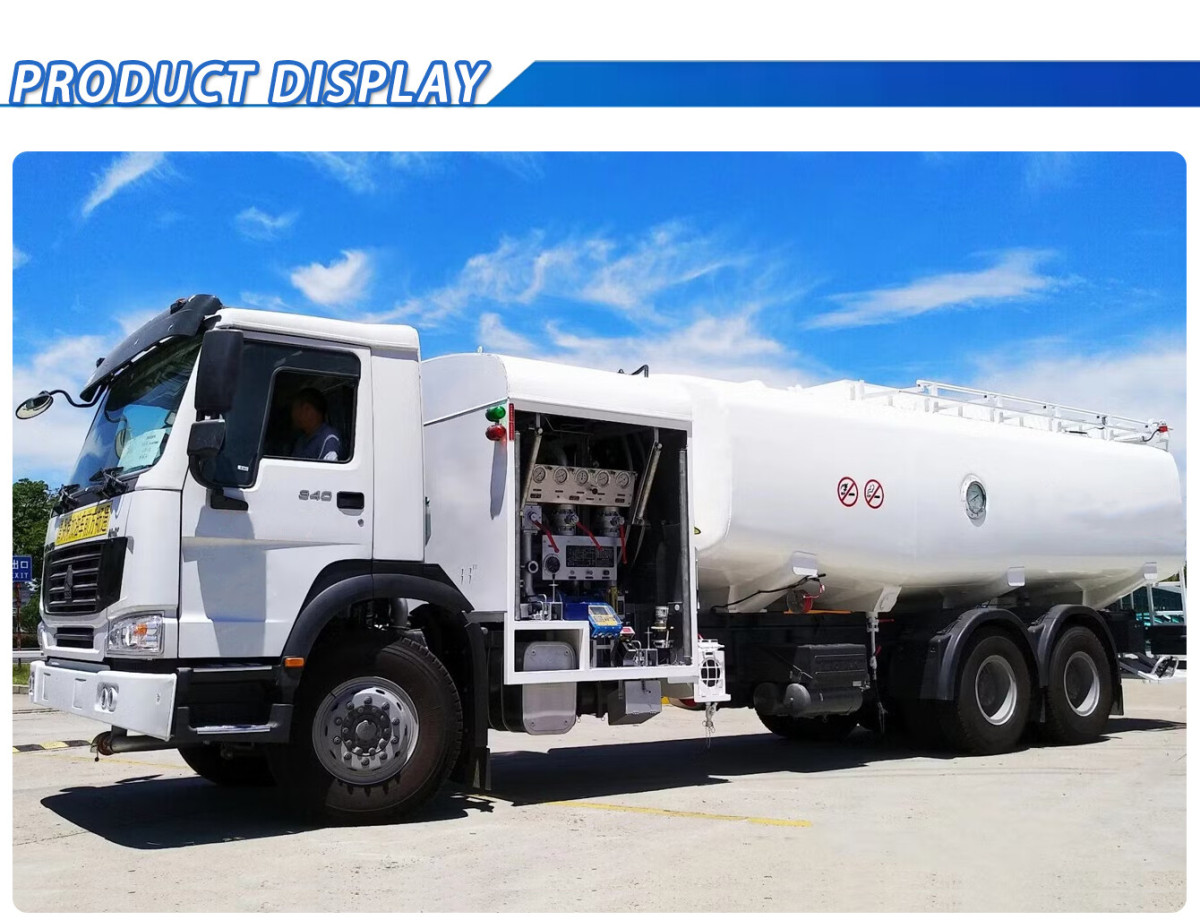

1. Aviation refueler truck body: The tanker material is made of aluminum-magnesium alloy 5083 with advantage of light weight, large volume,

corrosion resistance and no pollution and guarantees the quality of oil.

2. Aviation refueler truck: aluminum alloy centrifugal pump, reel filling flow 80 or 300L / min, pipeline pumping flow 700L / min, working

pressure is 0.25MPa.

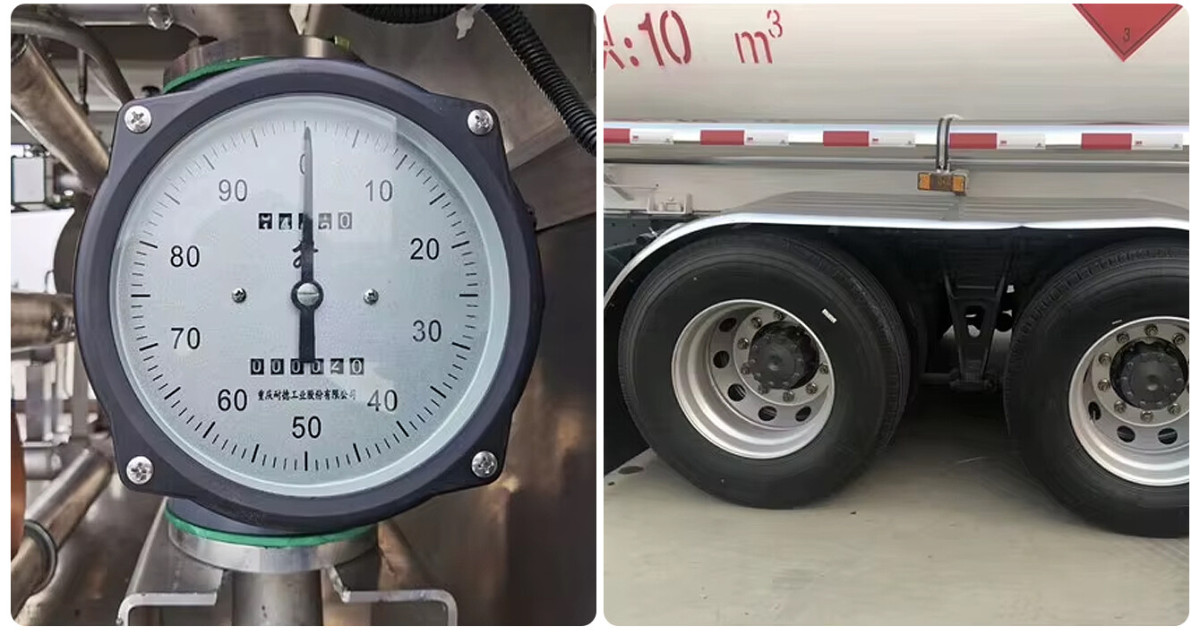

3. Aviation refueler truck flowmeter: 0.2 accuracy, diameter 50 waist wheel flowmeter.

4. filter separator: rated flow 400L / min, rated working pressure 1.0MPa, the maximum allowable pressure difference of 0.15MPa, in line

with the requirements of API 1581 3rd edition.

5. automatic reset reel, refueling hose diameter 25 or 38MM, length 15 meters.

6. level gauge: The stainless steel float in the tank and the 10-inch aluminum alloy dial on the left side of the tank can clearly observe the

current liquid volume in the tank.

7. operating system: centralized control of independent control room, instrument indication includes pump inlet vacuum gauge, pumping

pressure gauge, oil pump tachometer, filter differential pressure gauge, etc. Switch valve operation includes power main switch, lighting switch,

emergency stop switch, oil pump adjustment knob, fueling valve, circulating filter valve, sampling valve, subsea valve control combination switch, etc.
