Name: Side Tipper Trailer With Tri-axles
SKU: 0

Product



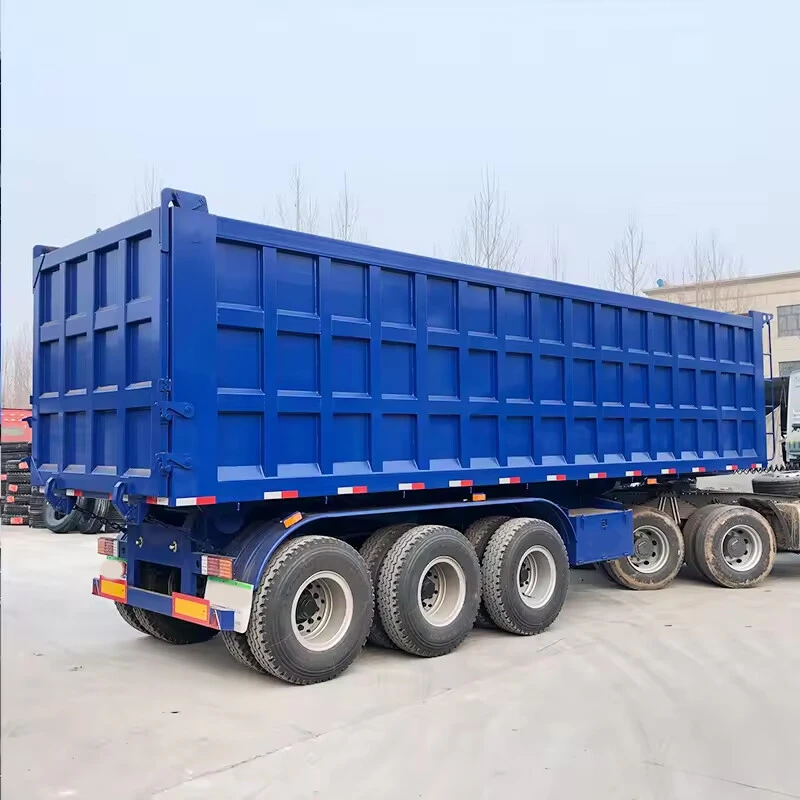

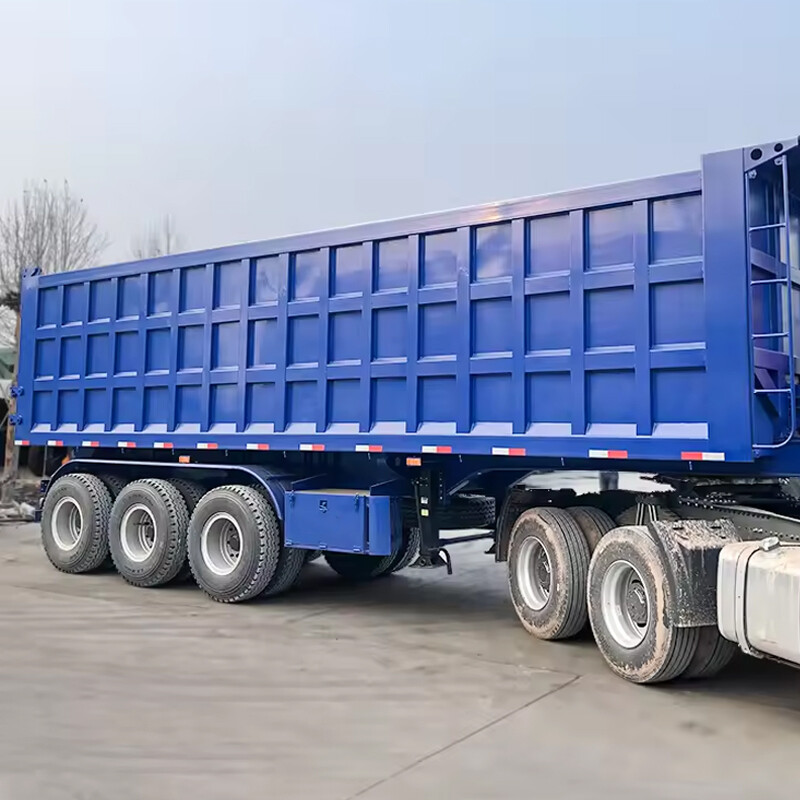

Side Tipper Trailer With Tri-axles

This type of semi-trailer usually adopts a combination of trains, which can transport goods, load and unload in large quantities and quickly.

Description

Specifications

Outer Dimensions	13,0002,6503,306
Axle space (mm)	7,230+1,313+1,310
Tare weight (kg)	20,000
Tire	Type: 12R22.5, equip 13 pcs per chassis, include 1 spare tire.
Rim	Type: 9.0-22.5 equip 13 pcs per chassis.
Axle	FUWA 16T*3 sets per chassis.
King pin	JOST, 90#
Suspension	3-axles reinforced mechanical Suspension
Leaf spring	120*16mm, 12 pcs

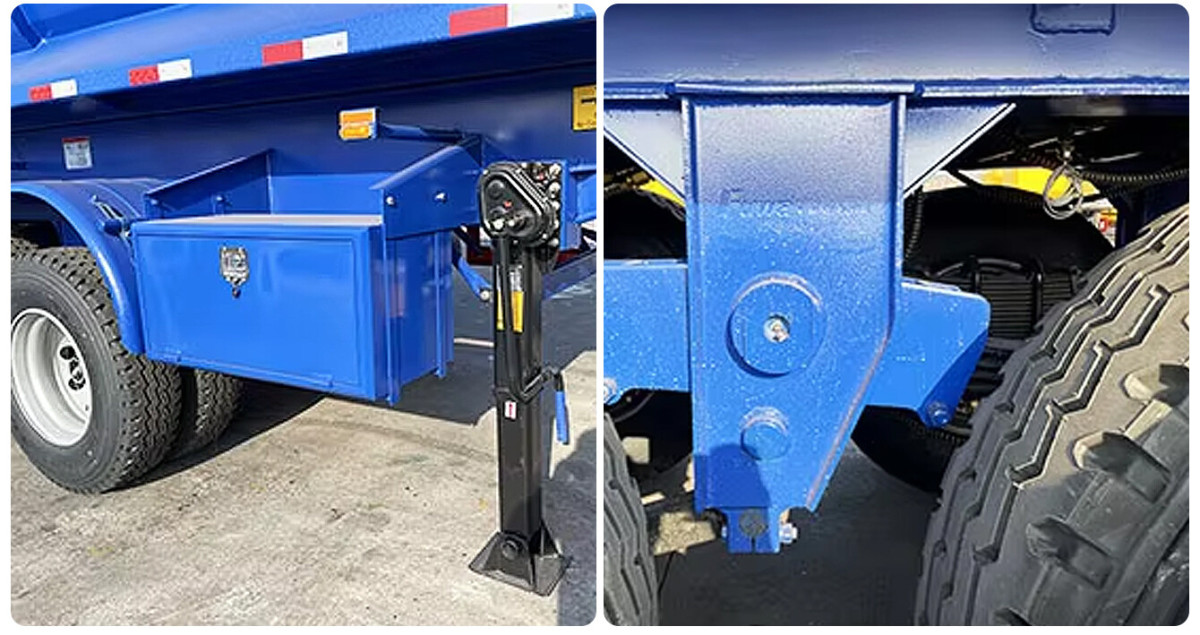

Landing gear	GOLDENSTONE 30T
Hydraulic System	High quality China hydraulic system
Brake system	Air brake dual chamber, 30 type on first axle, 30/30 type on last two axles WABCO brake valve.
ABS	Non
Electric system	24V, LED lights.
Tool box	1 set of steel box
Spare tyre carrier	Equipment 1 set
Color	By customer’s requirement.
Painting	Primer and top coat, Polyurethane paint
