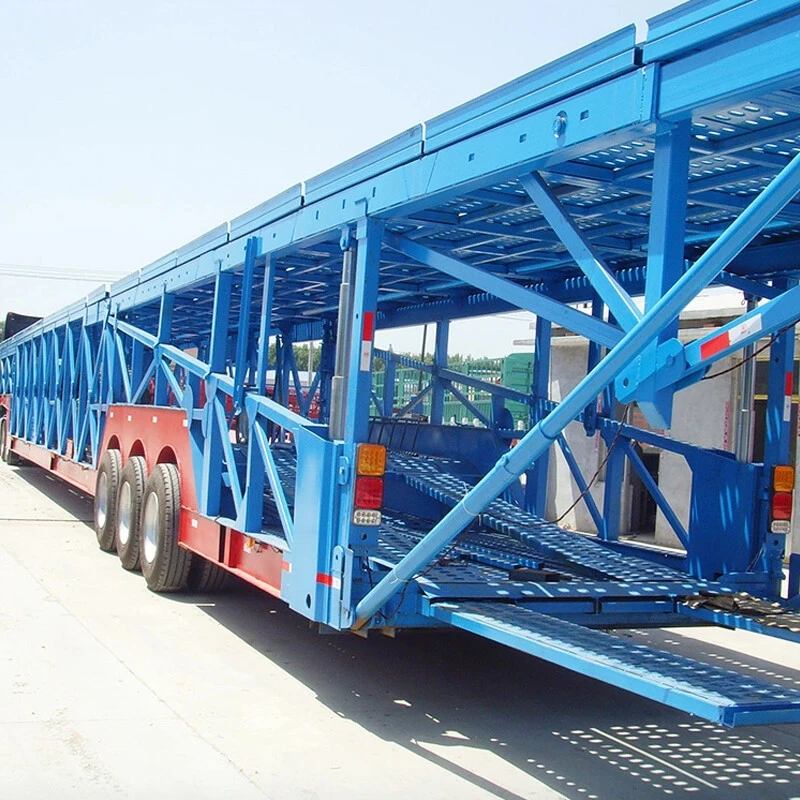

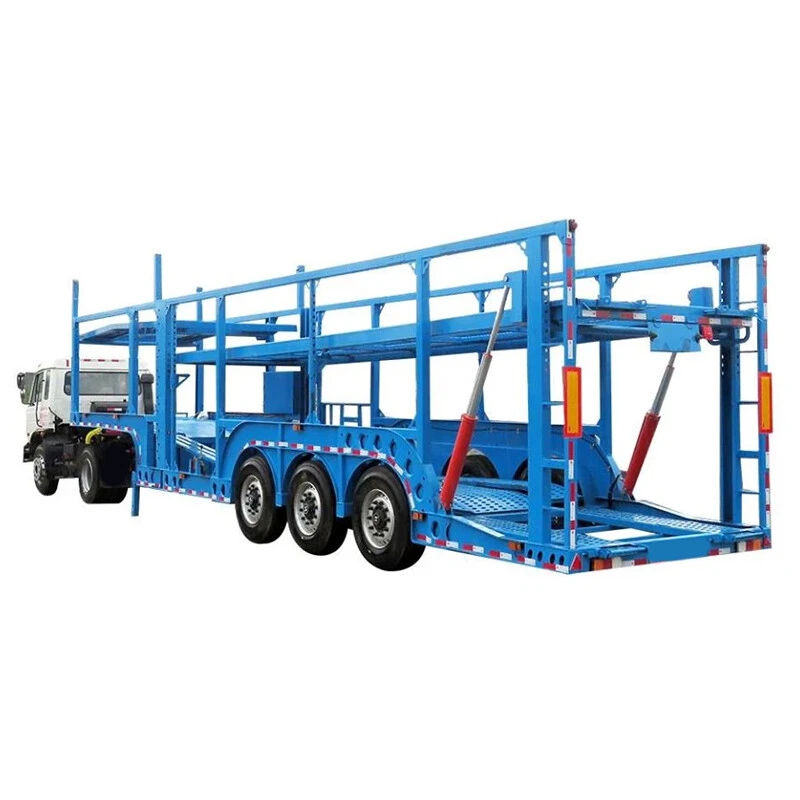

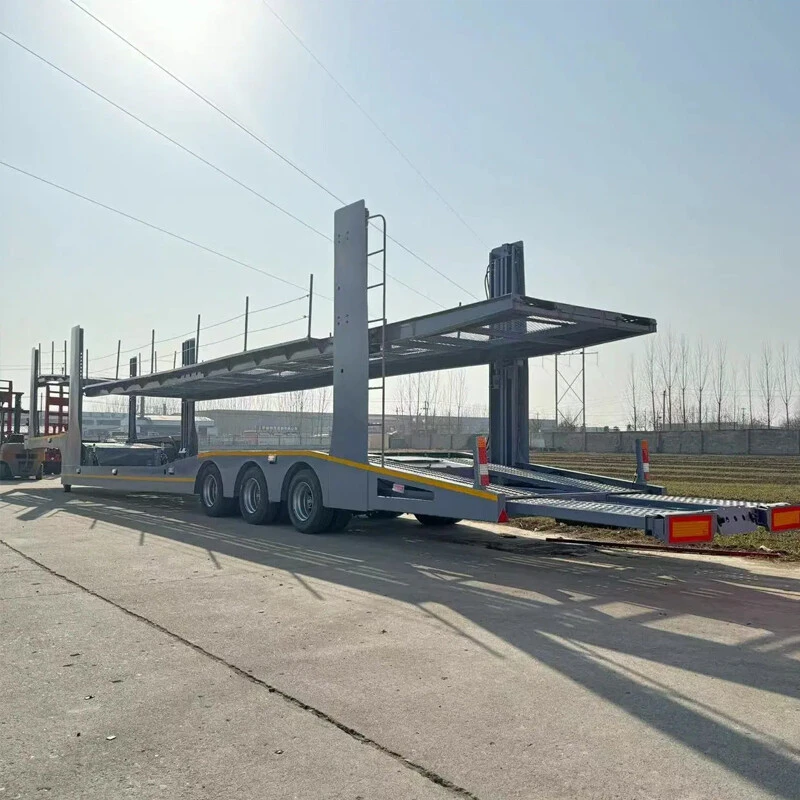

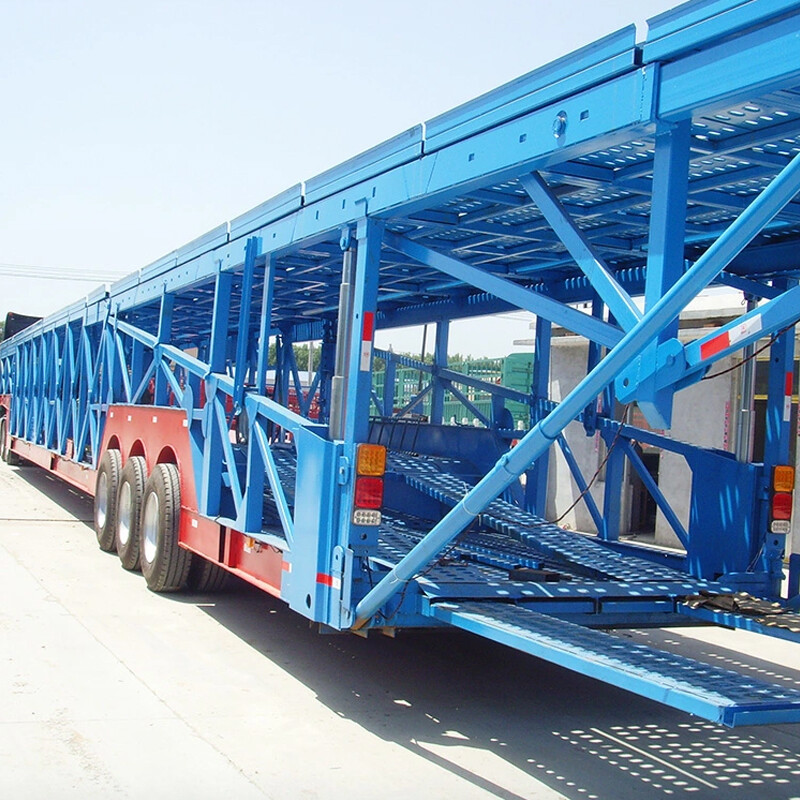

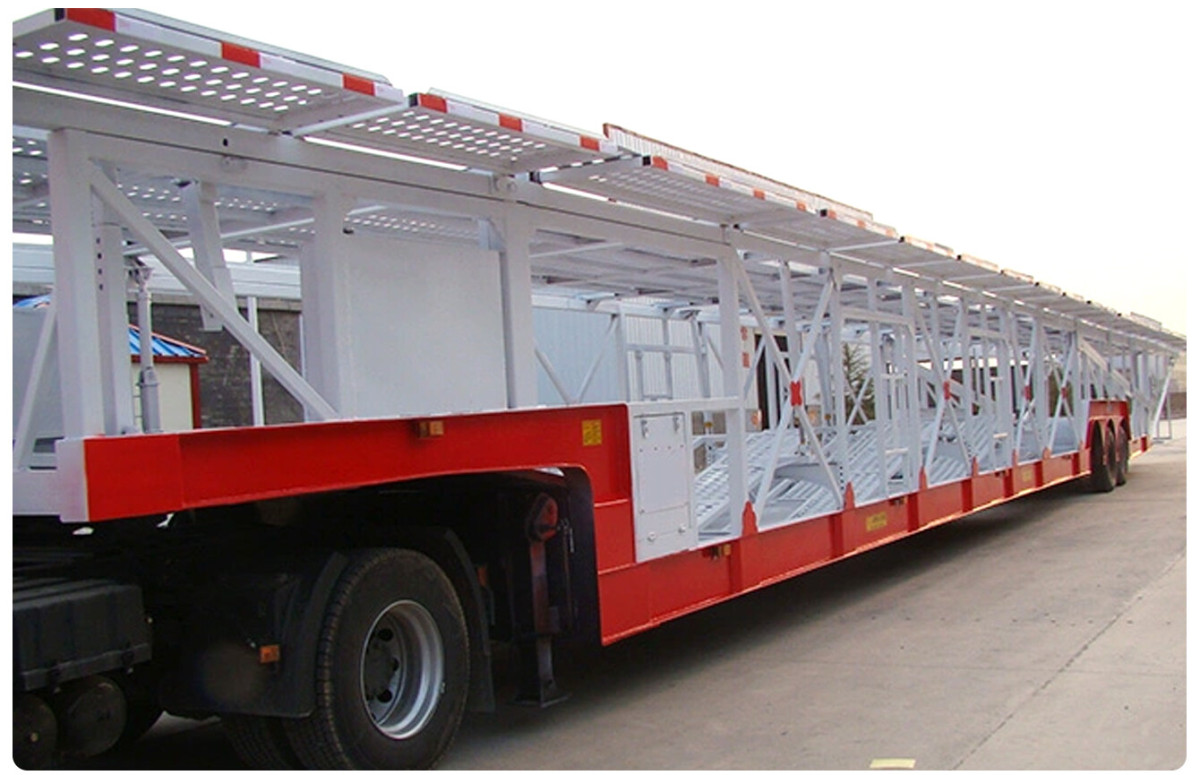

Name: 3 Axles Car Carrier Trailer Car Transport Semi Trailer Car Carrier Semi-trailer
SKU: 0

Product



3 Axles Car Carrier Trailer Car Transport Semi Trailer Car Carrier Semi-trailer

Lead Time:15-20 DAYS
Product Origin:CHINA
Shipping Port:ANY PORT, CHINA
Color:OPTION

Description

Specifications

Feature	Car Transportion
Capacity	6 Cars
Dimension(LWH)	14200X2500X3800 (mm)
Main frame	Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
No. of axle	3
Payload(kgs)	40000
Tare weight(kgs)	6850
Kingpin	JOST brand bolt-in/welded type 3.5”/2”
Landing gear	JOST brand two-speed manual operation 19”
Tire size	11R22.5、12R22.5、315/80R22.5、385/65R22.5
Rim size	8.2522.5、9.0022.5、11.75*22.5
Axle	Original BPW-12T/ FUWA-13T
Suspension	Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system	Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Up Deck	Lifting by hydraulic, cylinder diameter 2.05 inch
Painting	S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
Accessory	One tool box; one set of standard tool
