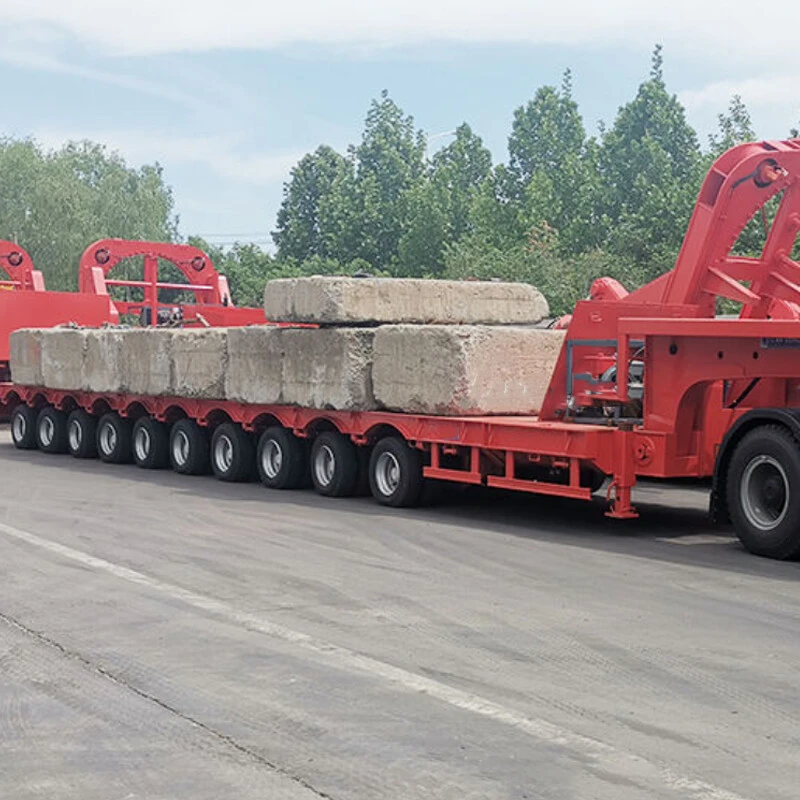

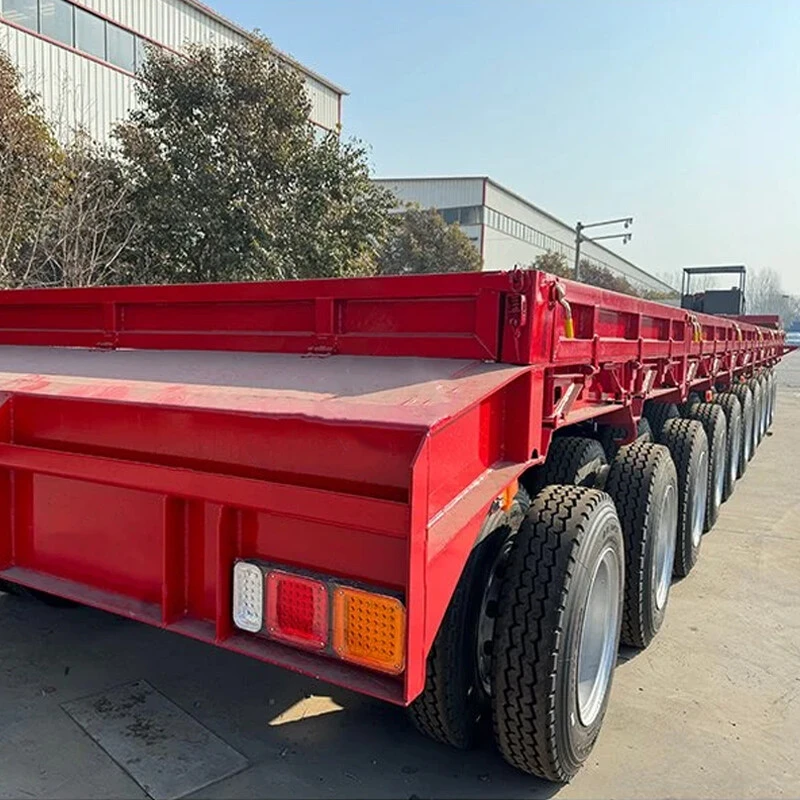

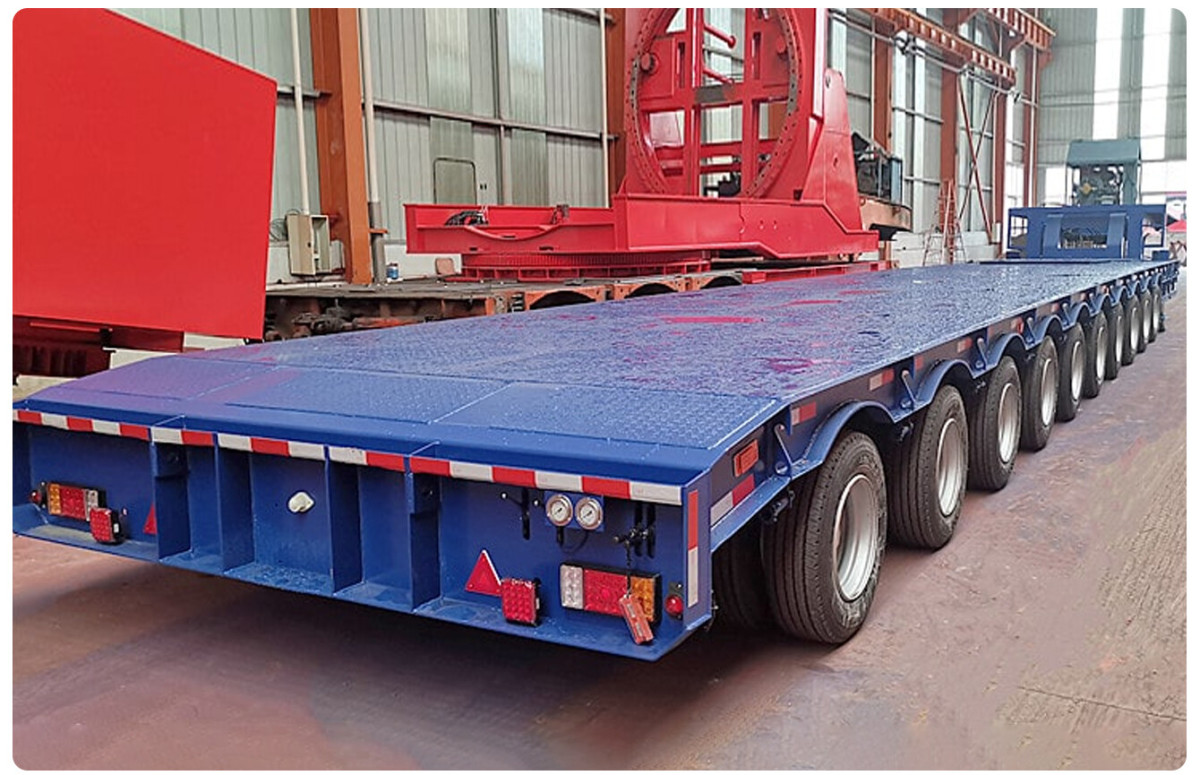

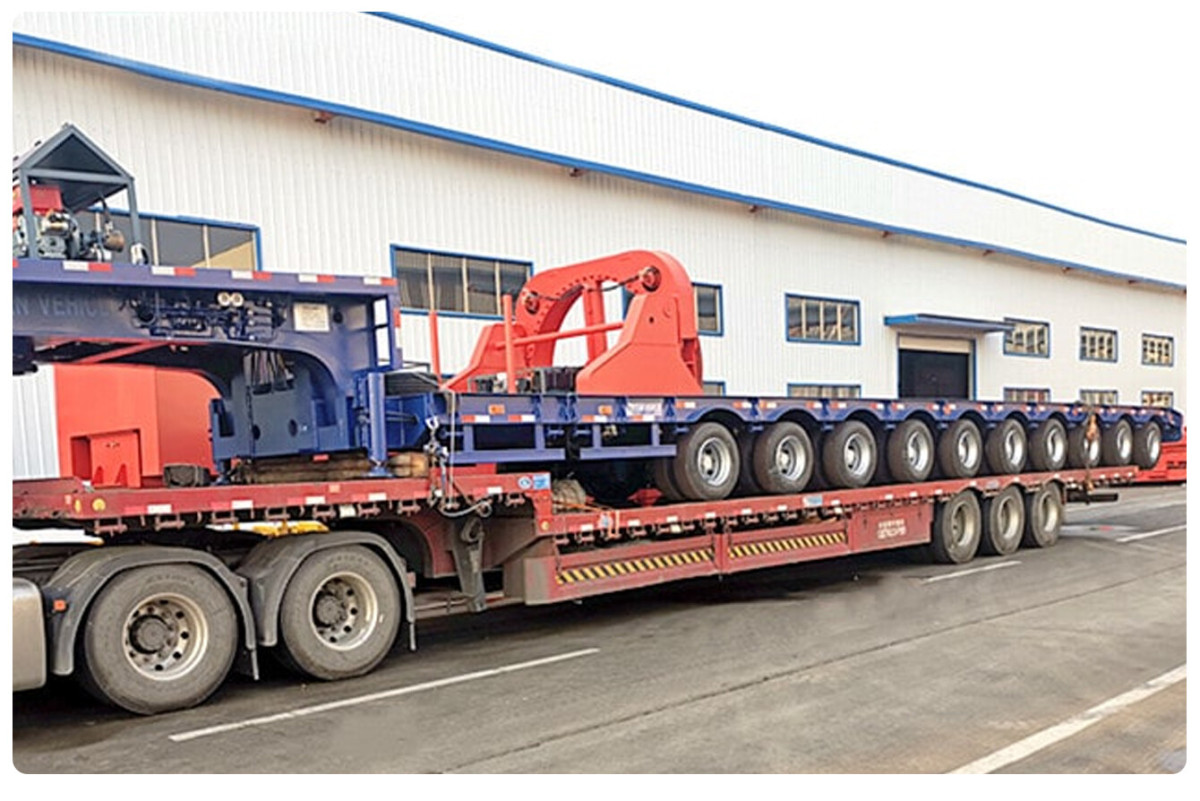

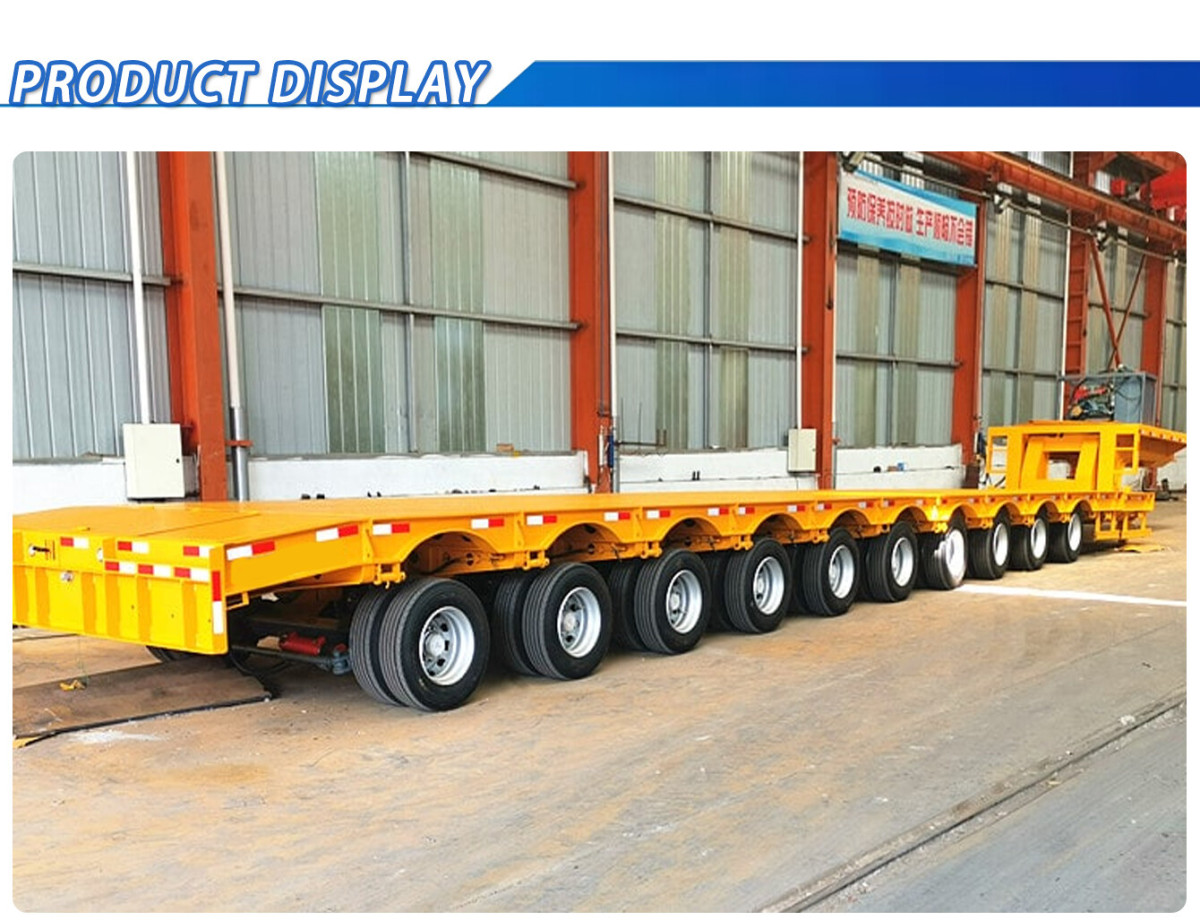

10 Axle Extendable Trailer

This design of the extendable trailer is the newest, making the most extended length of the trailer. The trailer’s most significant feature is that the three extensions are in the front of the trailer.

Description

Specifications

Dimension(LWH)	18,500mm X 2,990mm X 950mm ( closed state) 33,500mm X 2,990mm X 950mm ( extension state)
Deadweight without ramps	28.5 Ton
Deadweight with ramps	29.5 Ton
Frame	HG60 high strength steel frame
Loading capacity	90 Ton
Length	18,500mm at closed state; 33,500mm after total extended
Width	2,990mm + 2 X 250mm side swing bracket
Height	200mm+/-90mm
Axle	10 Axles
Maximum steering angle	+/-25°
Tyre	40 units, 215/75R17.5
Gooseneck	Hydraulic gooseneck
Suspension	Hydraulic lifting suspension (only for adjusting the platform levelling needed

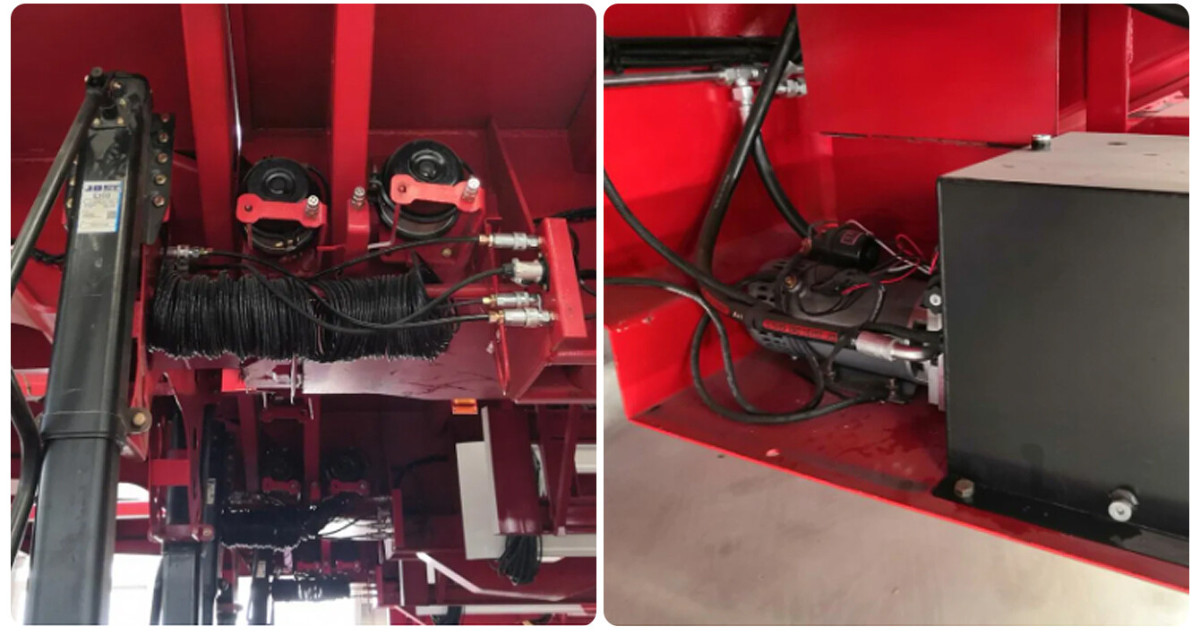

Hydraulic power station	1 set,12Kw diesel engine
Loading Ramps	1 set, detachable ramps
Landing gear	JOST C20
Operation 2 wireless remote control	+ 1 control valve panel

Advantage:

1. 250mm wideners are equipped on both sides of the load-bearing platform; the length of the load-bearing platform is 14.5m, with a 2-level tensile structure, which can stretch 7500x2 to meet the requirements of 29m after the freight platform is stretched;

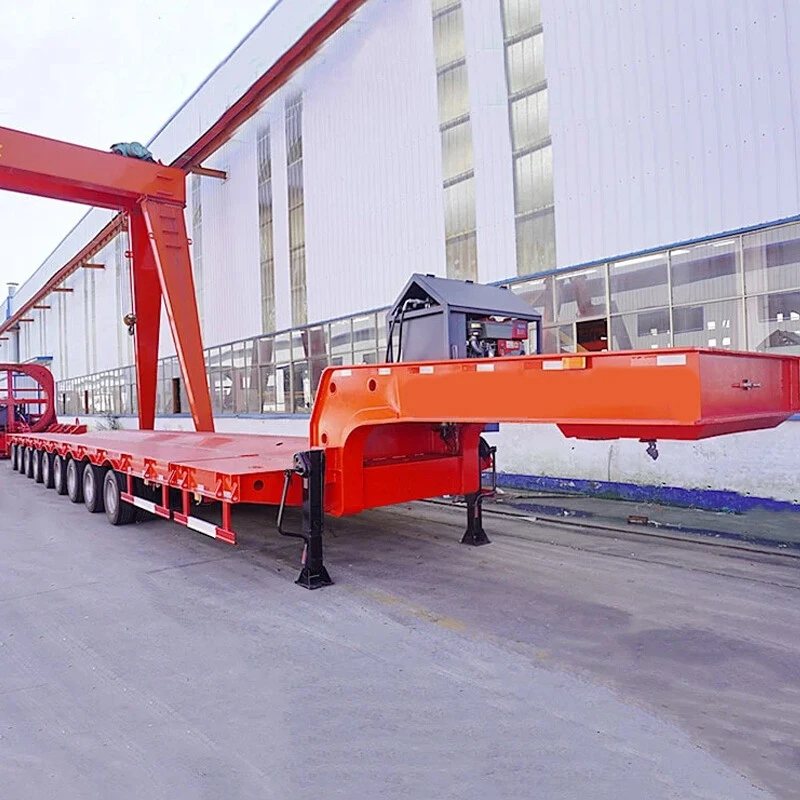

2. The gooseneck is a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle;

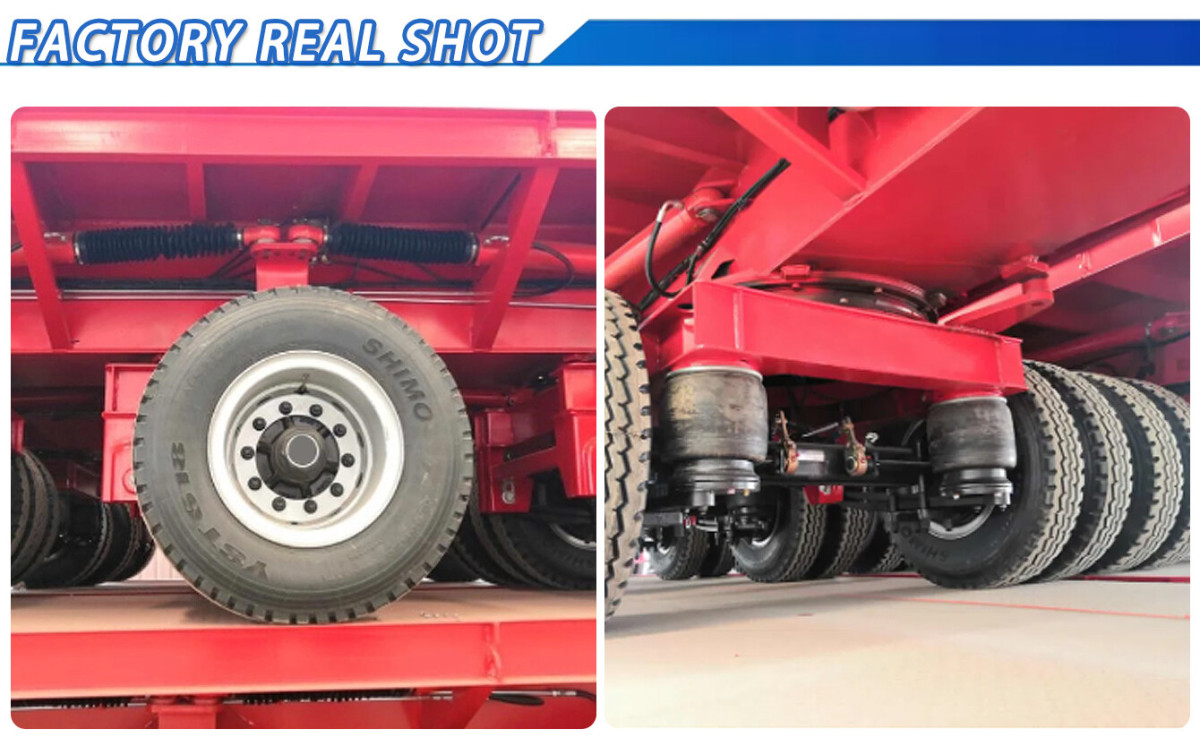

3. The suspension is hydraulic suspension, with lifting function, the force between the axles is balanced by the suspension cylinder, and it has the function of lifting the axle independently;

4. This car has 10 axles, and the axles include 8 active steering axles, 4 in the front and 4 axles in the back; The tires are 235/75R17.5;

5. The active steering axle is controlled by hydraulic cylinders.
