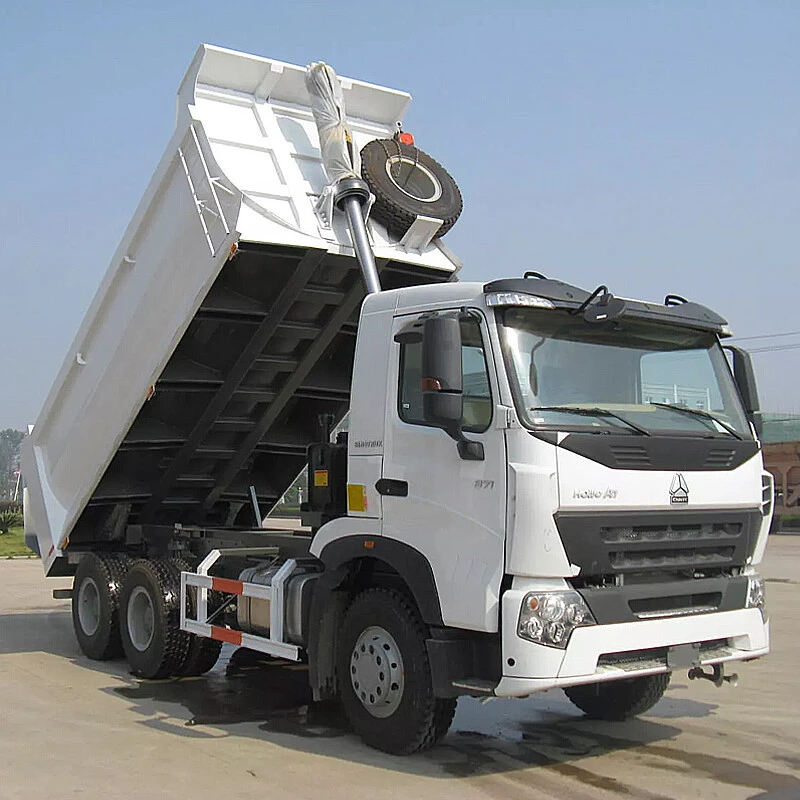

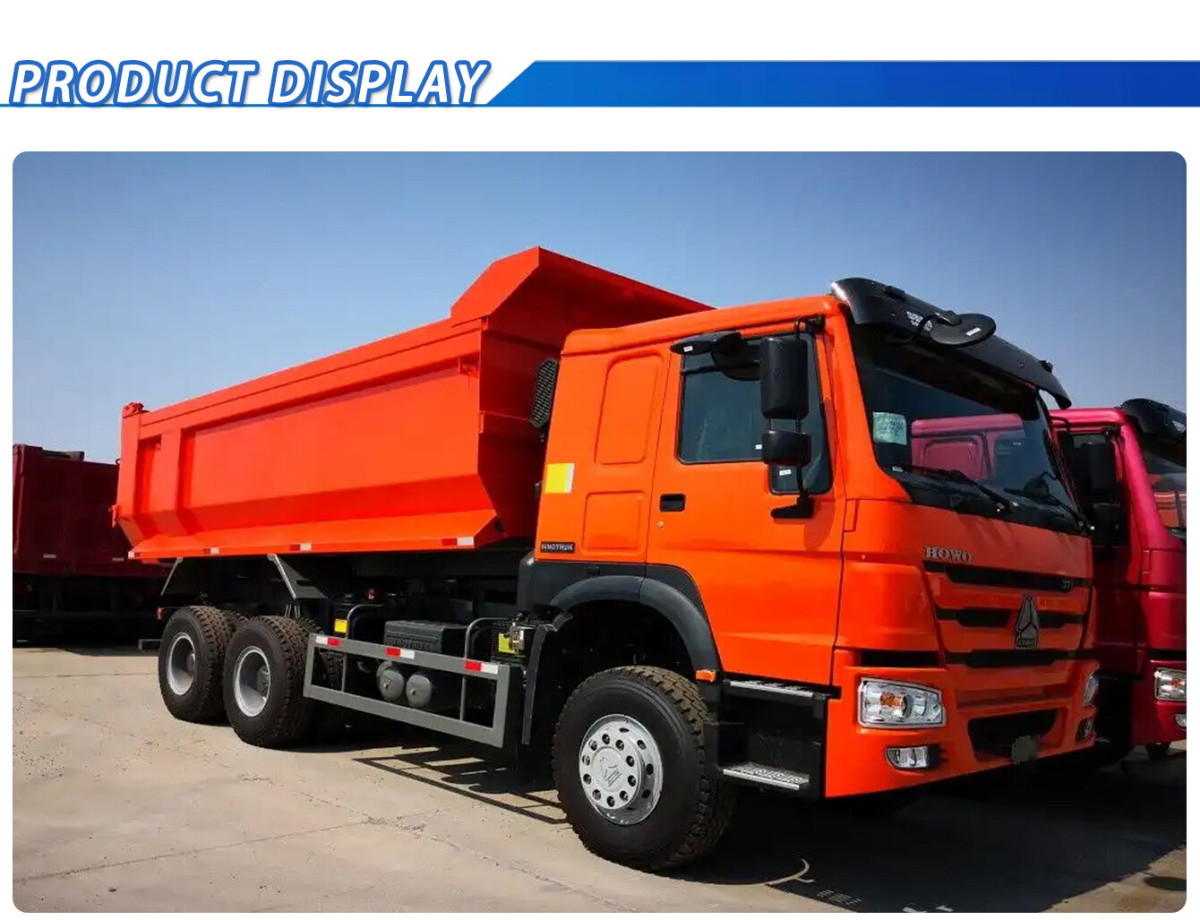

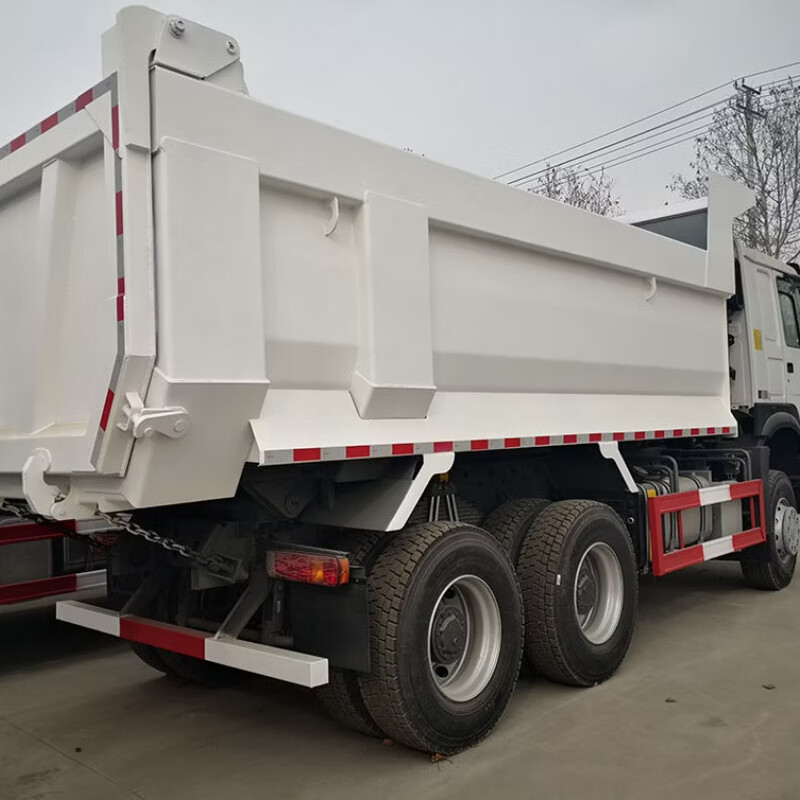

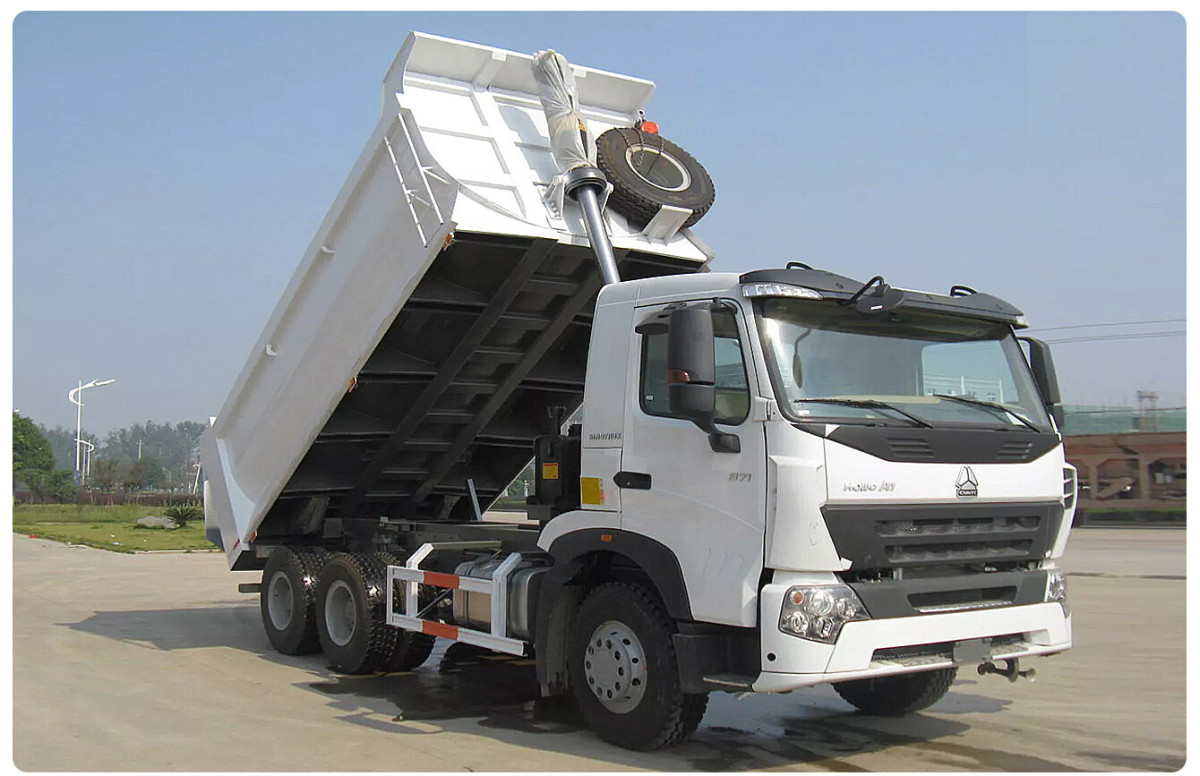

HOWO 10 Wheelers U Shape Dump Truck

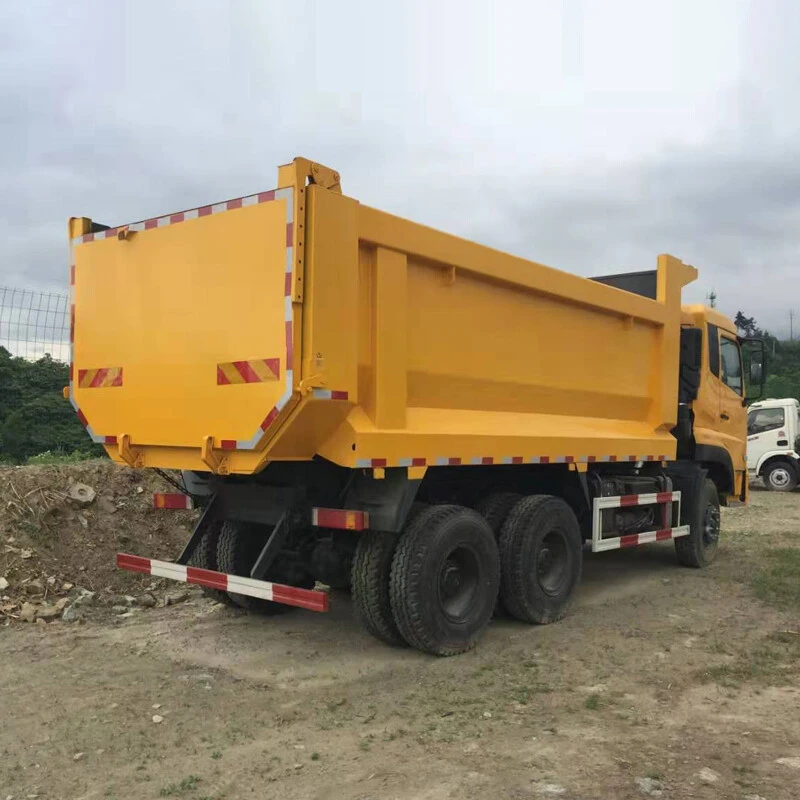

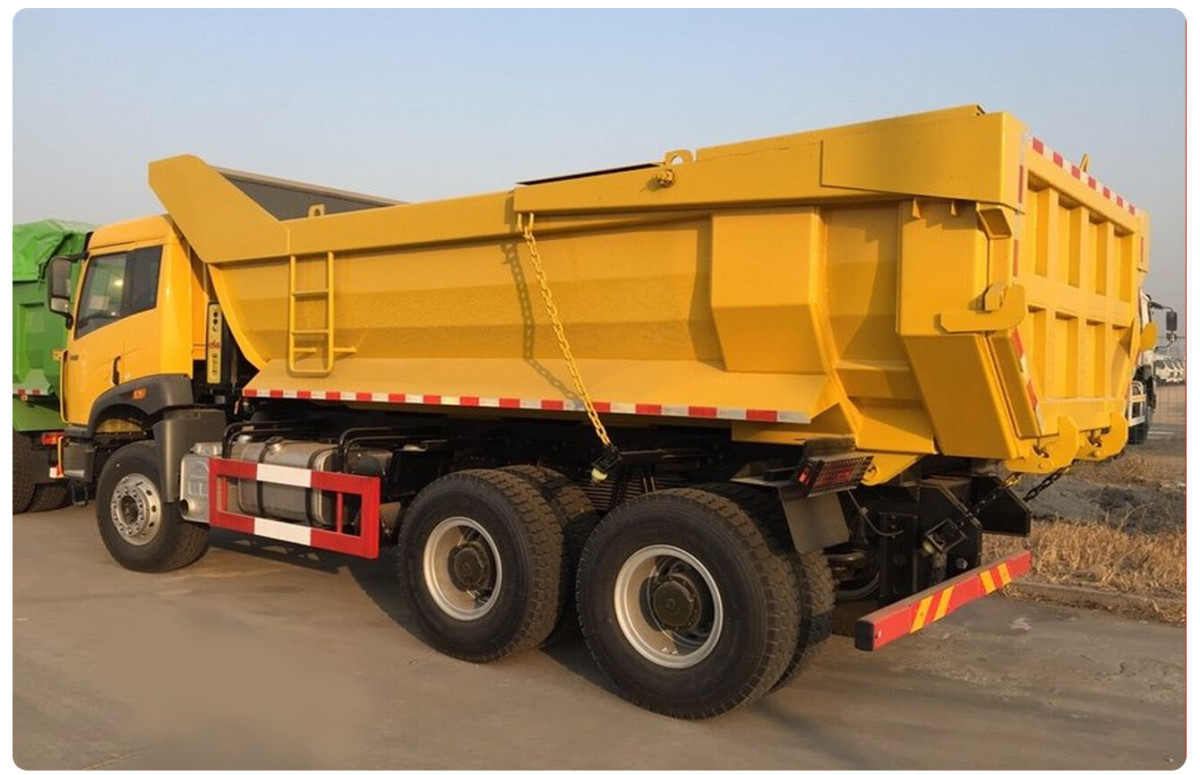

Special U shape box can have faster discharging speed and with fluent outside design more fashion and firm. The customer do the contractor construction business, need to transport sand, rocks, stones, gravels etc construction materials. The dump truck, 371hp horsepower is perfect for the customer transport demand. 6×4 with 10 wheelers, 12.00R20 steel radial tires with 11pcs include one spare tire. Very good specifications.

Description


Specifications


  Dimension  8645*2500*3450mm (Customized)
  Bucket  5800*2300*1500mm ; 20 Cubic, bottom 8mm side 6mm

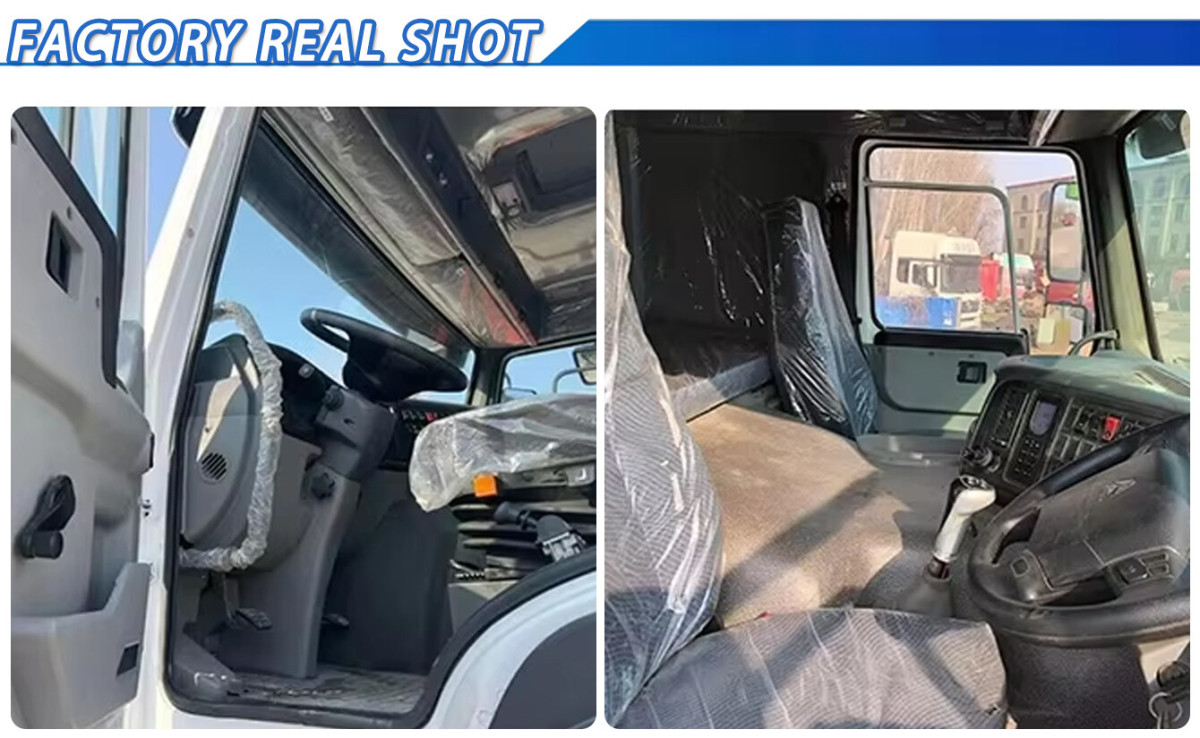

  Cabinet  HW76, New face, with single berith, with A/C
  Load Capacity  20-40Ton
  Usage  Transport sand, rock, gravel etc construction materials
  Cylinders  T middle lifting system
  Engine  WD615.47 , 371HP, EURO 2
  Drive Type  Left Hand Drive
  Transmission  HW19710
  Steering  ZF8118
  Drive Axle  HC16, double axles, dump type
  Front Axle  HF9, drum type
  Tire  12.00R20 with 11pcs
  Bumper  High bumper
  Fuel Tank  300L
  Electrial System  24V; 7 ways receptacle; LED lamps
  Colour  Comply with the customer’s requirement
