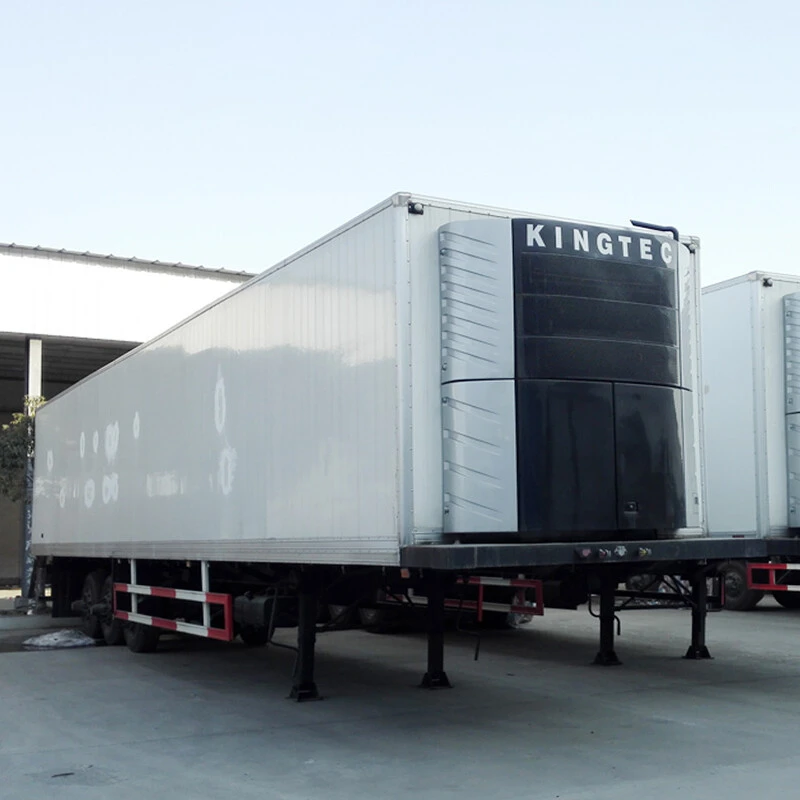

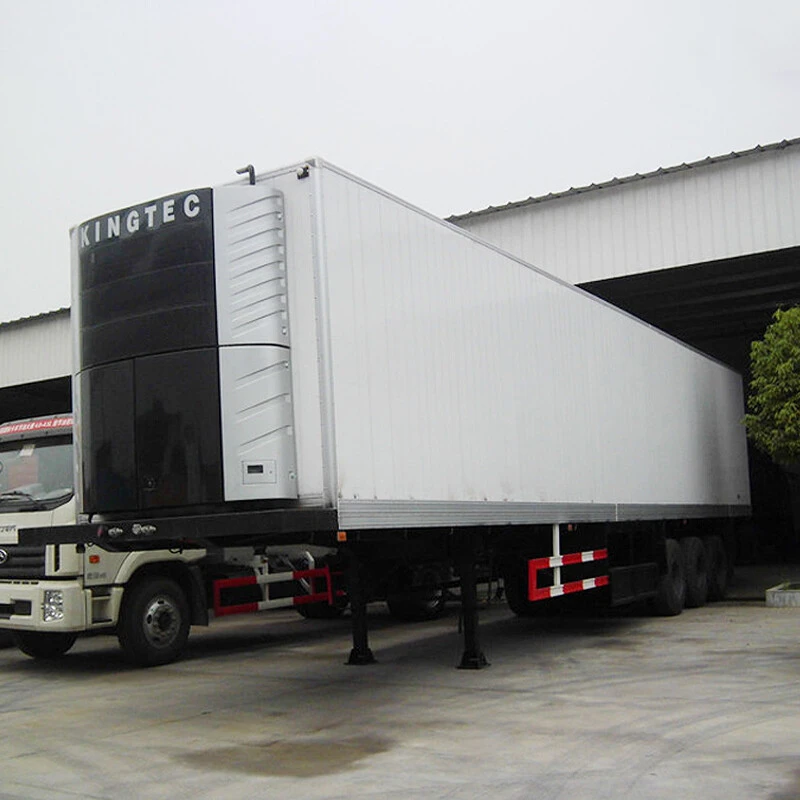

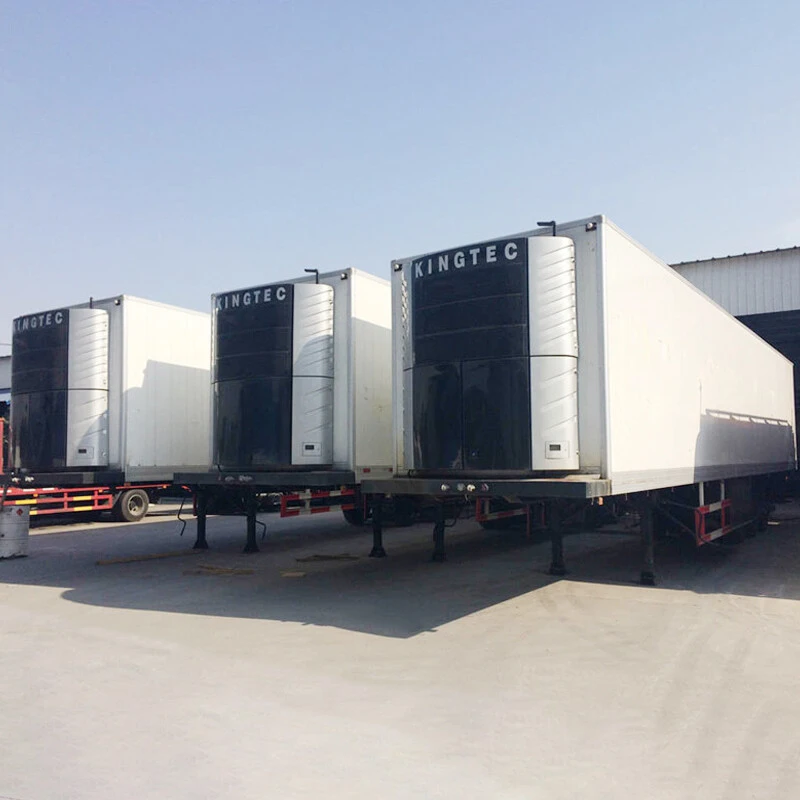

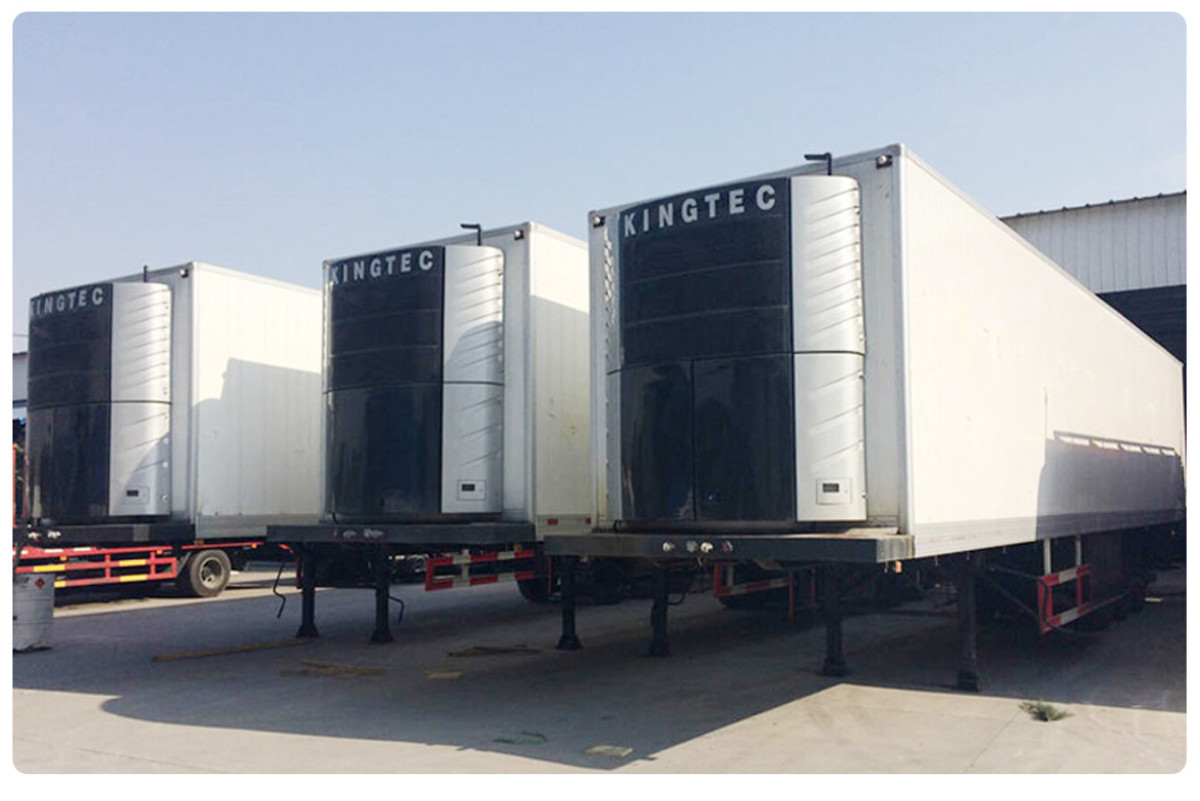

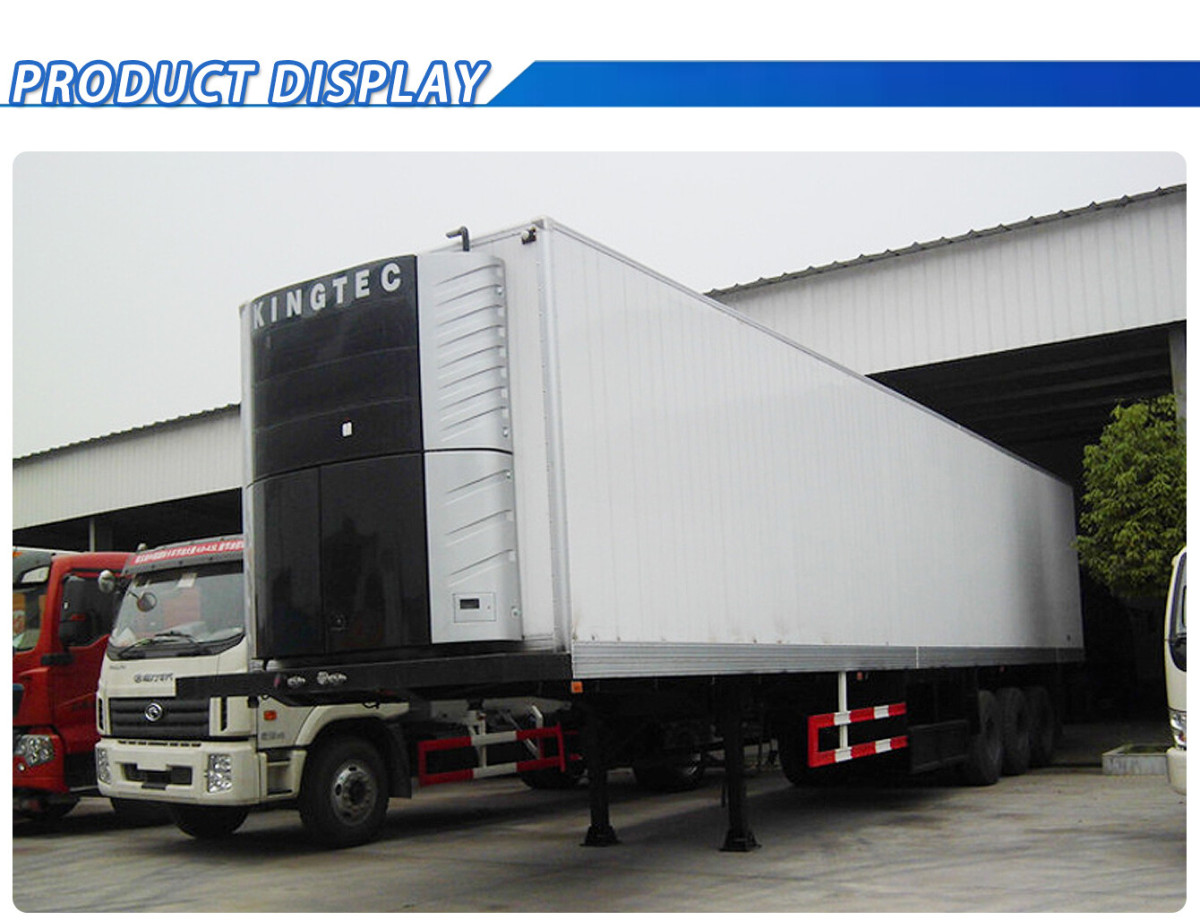

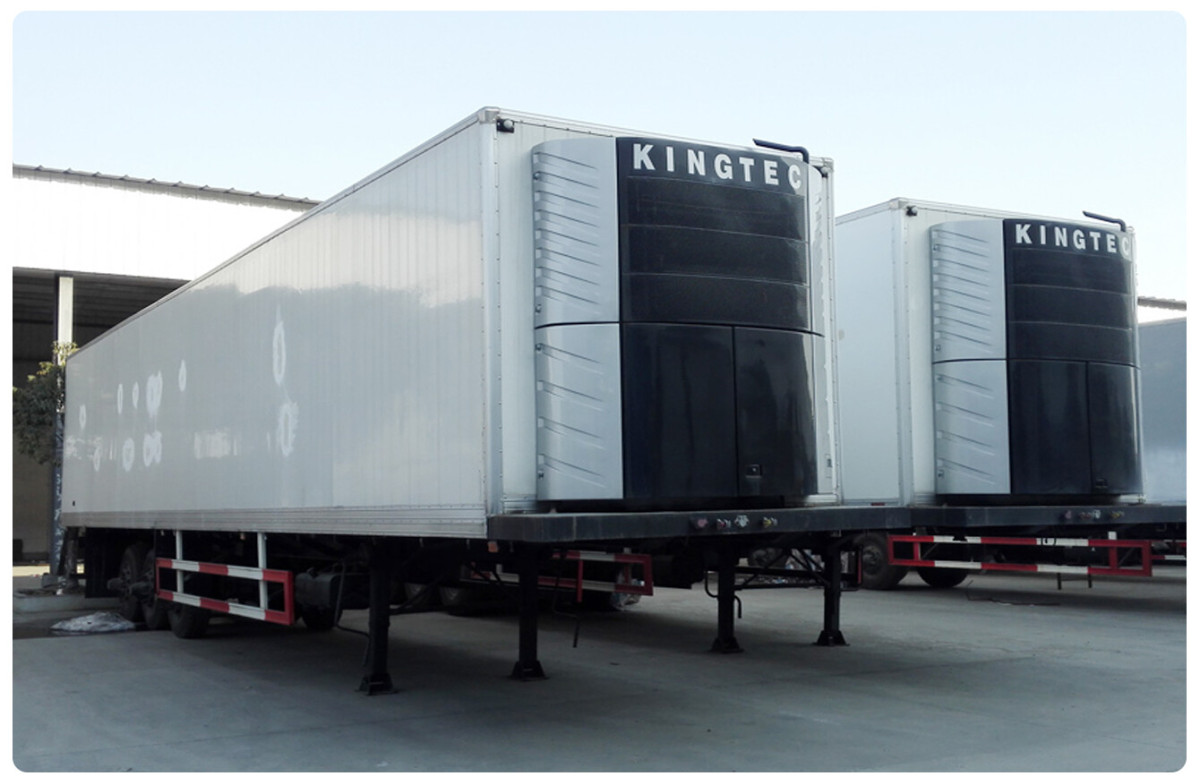

40 Ton Seafood Refrigerated Trailers

Sea Food Refrigerator Trailer is a kind of refrigerated truck.The refrigerated trailer is mainly composed of an automobile chassis, a heat insulation and insulation body,a refrigeration unit, and a temperature recorder in the compartment.

Description

Specification

Main Dimensions
Overall Dimensions	1460025504000mm
Van Dimensions	1382023302410mm
Tare Weight	9900KGS
Loading Capacity	40T
Van Body
Van Body Stuff	FPR,Roofing iron,PPGI Aluminum,Duralumin
Fact Cubage（m3）	55~65
Insulation Material	Polyurethane
Insulation Thickness	80mm
Door	Rear door,optional for side door
Temperature Range	-25° to +27°
Refrigerator System
Brand	KINGTEC
Refrigerant	SK1380
Lowest working temperature	－18 centi degree
Chassis
Main Beams	Special design I beam, connected by bolts and nuts with van body, removable from van body for separate transportation;
Axle	3 axles，Fuwa 13 Ton
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin	JOST brand 2” bolt-in king pin
Suspension	German design heavy duty mechanical suspension
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim	8.25-22.5 wheel rim, 13 pieces
Tire	11R22.5 with one spare tire, 13pieces
