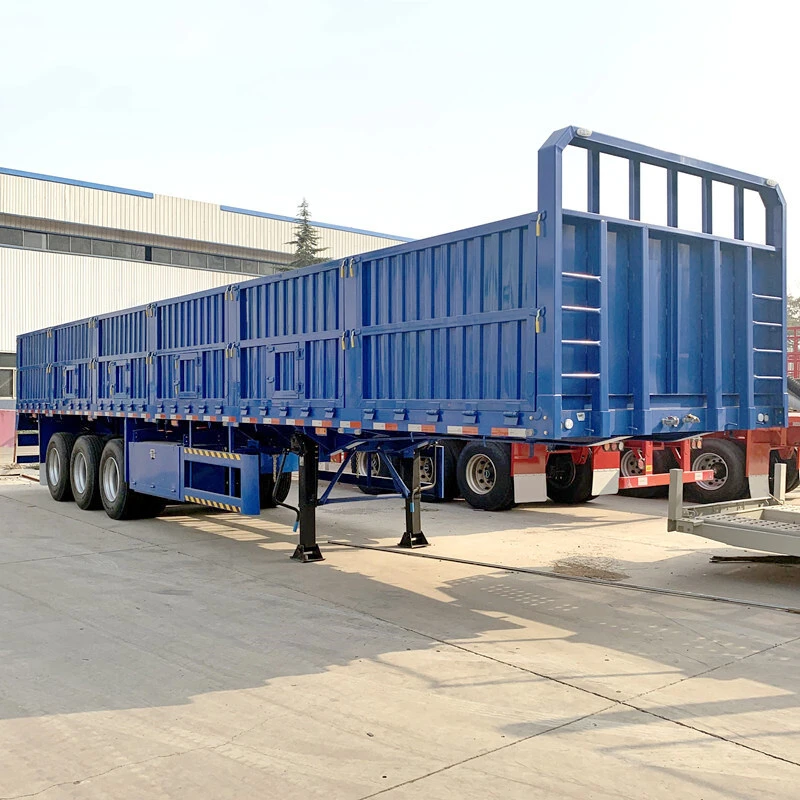

13-Meter Heavy-Duty Dropside Semi Trailer

The 40T flatbed semi trailer with dropside wall is a special vehicle suitable for long-distance transportation. The flatbed trailer is designed with side rails and is used to transport containers or bulk cargo such as grain, cement, etc.

Description

A 3-Axle Side Wall Trailer is a commonly used type of semi-trailer for cargo transportation. It is characterized by openable side walls on both sides and at the rear to facilitate cargo loading and unloading. With its versatility and high efficiency, sideboard semi-trailers have become an ideal choice in the logistics and transportation industry. They are widely used in the transportation of various bulk goods such as building materials and agricultural products.

Parameters

Dimension(LWH)	Approx 1300026002700mm
Height of sidewalls	1200mm,with grain door
Main frame	Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Model	XSS9380TP
No. of axle	3
Payload(kgs)	40000
Tare weight(kgs)	Approx. 8500
Kingpin	Bolt-in type 3.5” or 2”
Landing gear	Two-speed manual operation 19”
Tire size	385/65R22.5 (7sets)
Rim size	11.75*22.5(7 sets)
Axle	Fuwa brand, 3 Axle, 13 Tons,external type brake drum Axle
Suspension	Airbag suspension with first axle lifting
Brake system	Dual line with Re- 6 emergency relay valve, T30/30 air chamber, 46L air tank
Electric system	One unit of 24V 7 -pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks	12(for 1x20GP,2X20GP,1X40HQ)
Painting	Two coat of anti-corrosion prime; one coat of finish painting
Others	One toolbox; Two spare wheel carrier Enhanced pillars and drop side Free part list One set of standard tool, 5pcs LED sidelight 2pcs of Push-in air connector
