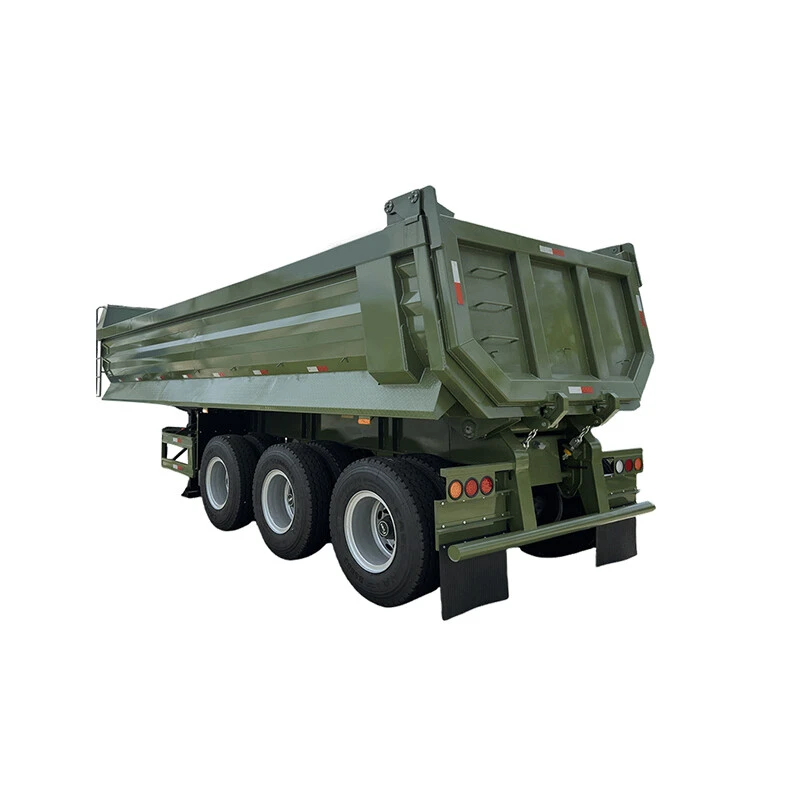

3 Axles 42-square U-shaped Tipper Trailer

Dump tipping semi trailer, 3 axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.

Description

Specifications

Material	High strength low alloy steel Q345 and Q235 is used for welded I-beam and fabricated parts. OEM Parts Configuration, floor: wood 310mm in thickness
King Pin	3.5" bolted kingpin
Twist Lock	12 units ISO retractable twist locks
Landing Gear	Static load 70T
Suspension	Heavy duty mechanical spring suspension with equalizer, 8-leaf spring
Axles	3*13 tons capacity
Tires	12R22.5, tubeless tire. 13pcs. Made in China
Brake System	Dual air brake system, WABCO relay valve, No ABS system
Brake Chamber	double-structure air brake chamber
Electrical System	24-volt lighting system, 7-way receptacle, Chinese standard
