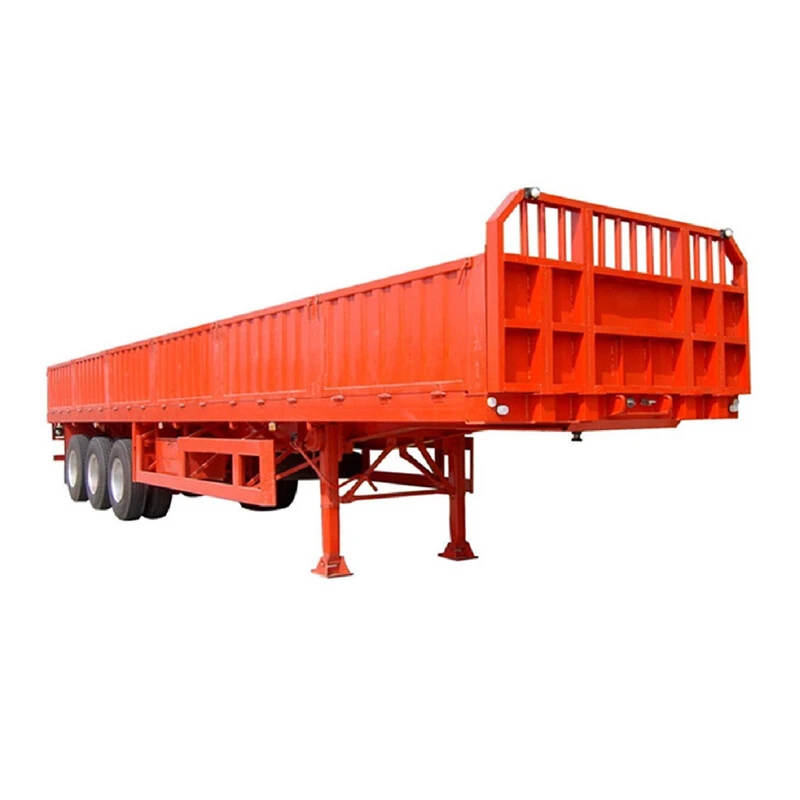

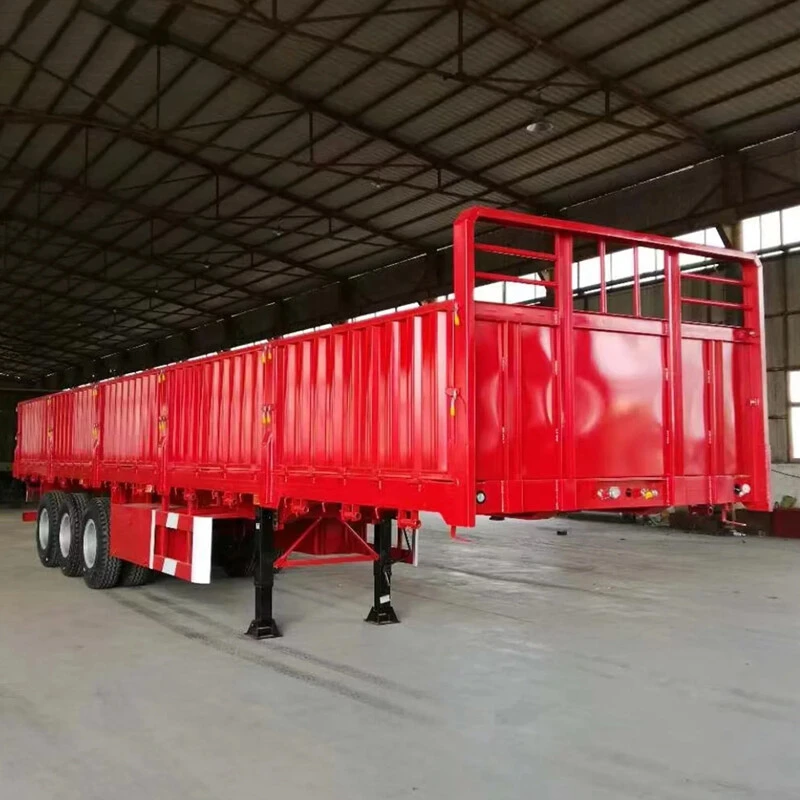

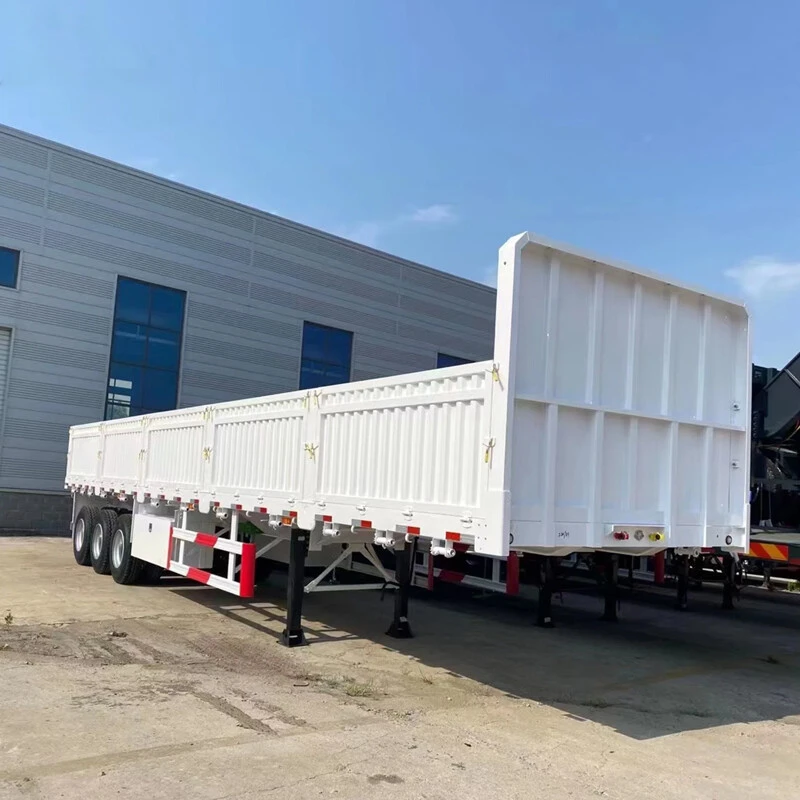

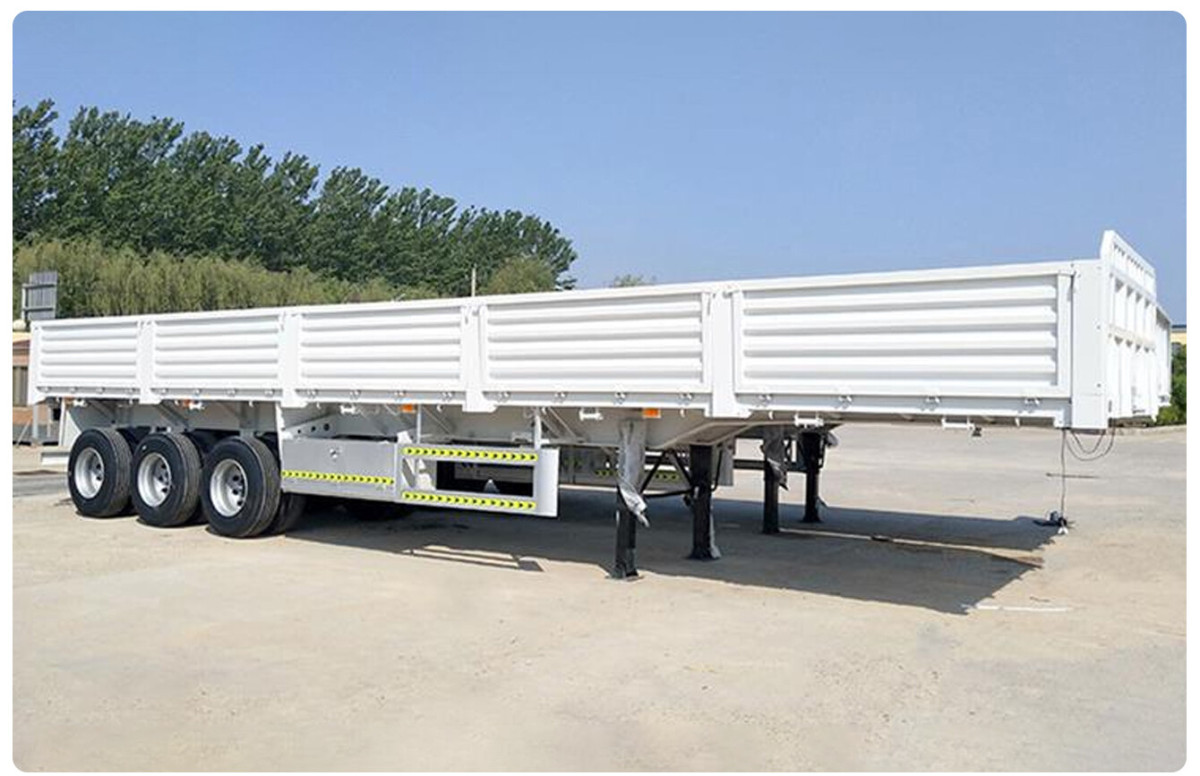

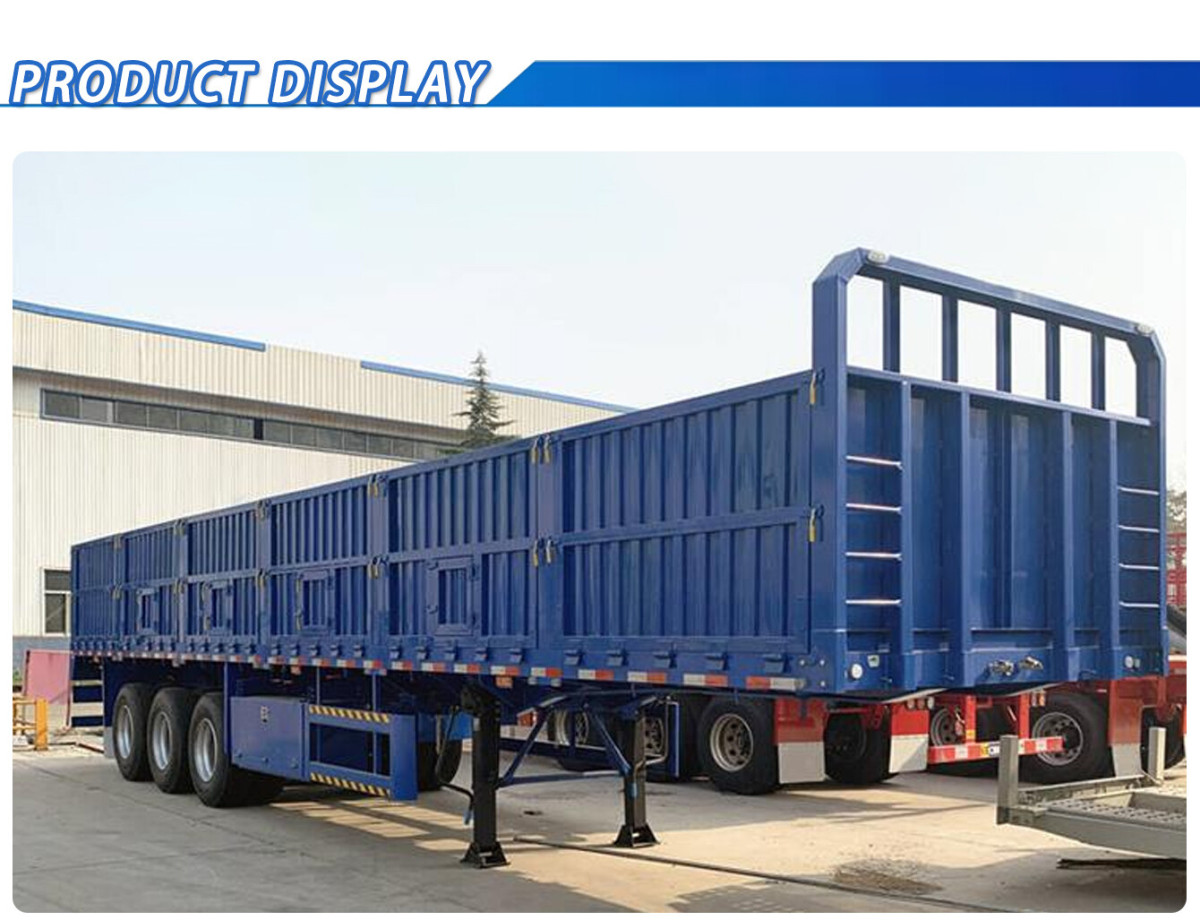

3-Axle Side Wall Trailer
A 3-Axle Side Wall Trailer is a commonly used type of semi-trailer for cargo transportation. It is characterized by openable side walls on both sides and at the rear to facilitate cargo loading and unloading.

Description

A 3-Axle Side Wall Trailer is a commonly used type of semi-trailer for cargo transportation. It is characterized by openable side walls on both sides and at the rear to facilitate cargo loading and unloading. With its versatility and high efficiency, sideboard semi-trailers have become an ideal choice in the logistics and transportation industry. They are widely used in the transportation of various bulk goods such as building materials and agricultural products.


  Feature  Carry 1X40FT, 1X20FT or 2X20FT container; bulk cargo
  Dimension(L*W*H)  12500*2600*2770mm
  Height of sidewalls  1200mm
  Payload(kgs)  40000
  Tare weight(kgs)  9000
  Kingpin  Bolt-in type 3.5” or 2”
  Landing gear  Two-speed manual operation 19”
  Tire size  315/80R22.5 double tyres(13 tyres)
  Rim size  9.00*22.5(13 sets)
  Axle  3 Axle, 13 Tons
  Suspension  Spring suspension with 8 leaf springs
