Specifications
| Feature | Carry containers, bulk cargo, equipments |
| Dimension(L*W*H) | (10800-12000)*(2800-3200)*2500mm |
| Main frame | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| No. of axle | 2 |
| Payload | 45,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5”/2” |
| Landing gear | JOST brand two-speed manual operation 19” |
| Tire size | 11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5 |
| Rim size | 8.25*22.5、9.00*22.5、11.75*22.5 |
| Axle | Original BPW-12T/ FUWA-13T |
| Suspension | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting | S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory | One tool box; one set of standard tool |
| We can build the trailers according to customer’s design and requirement |

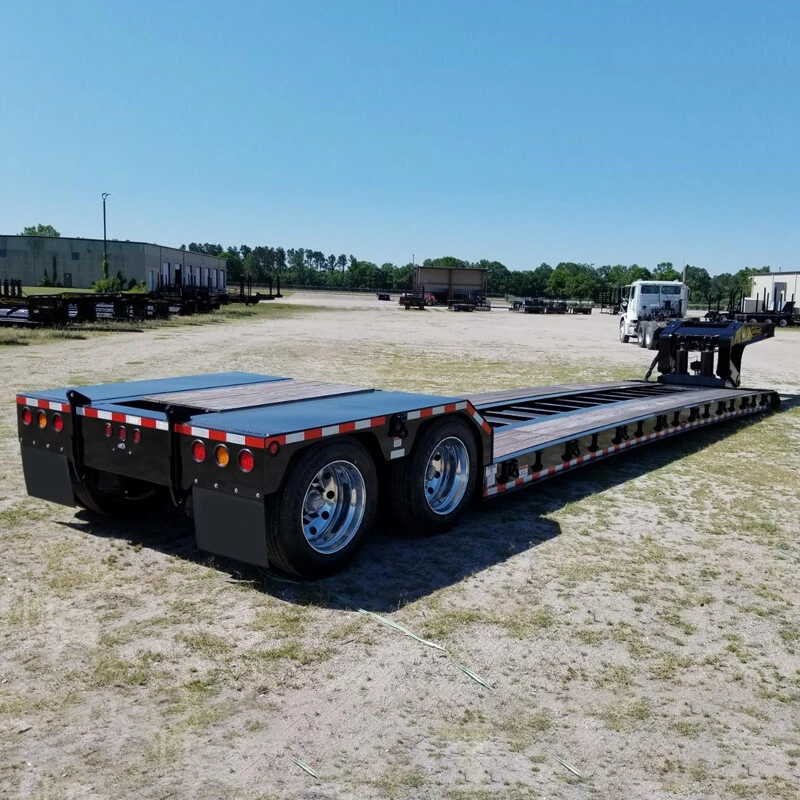

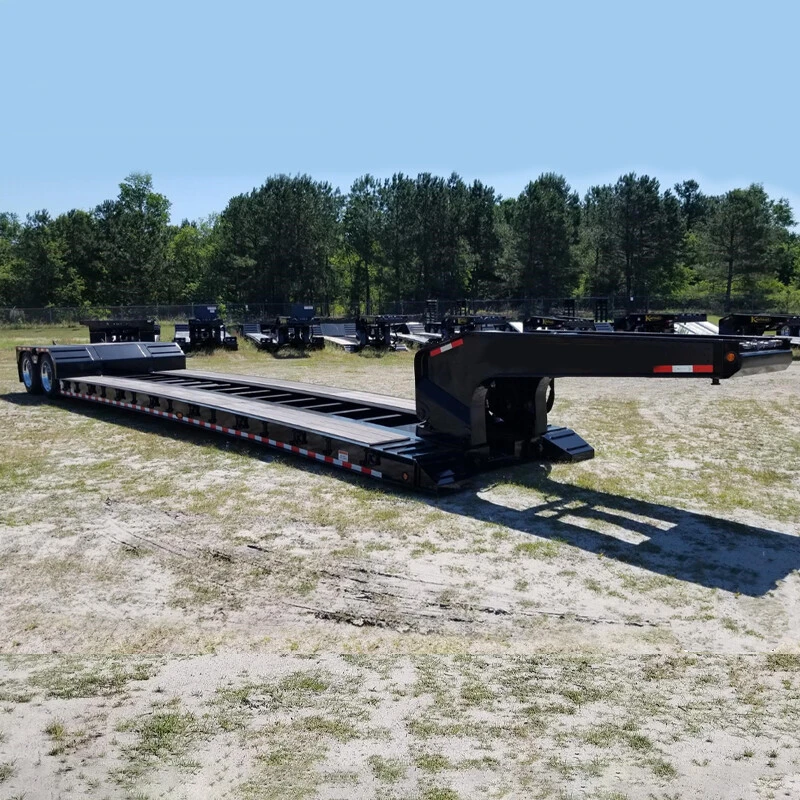

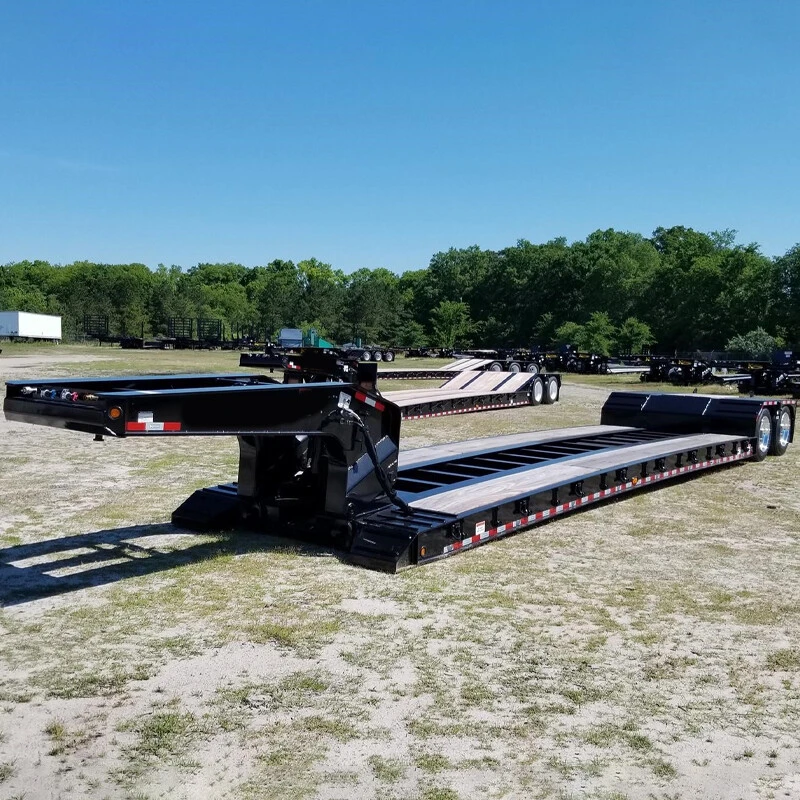

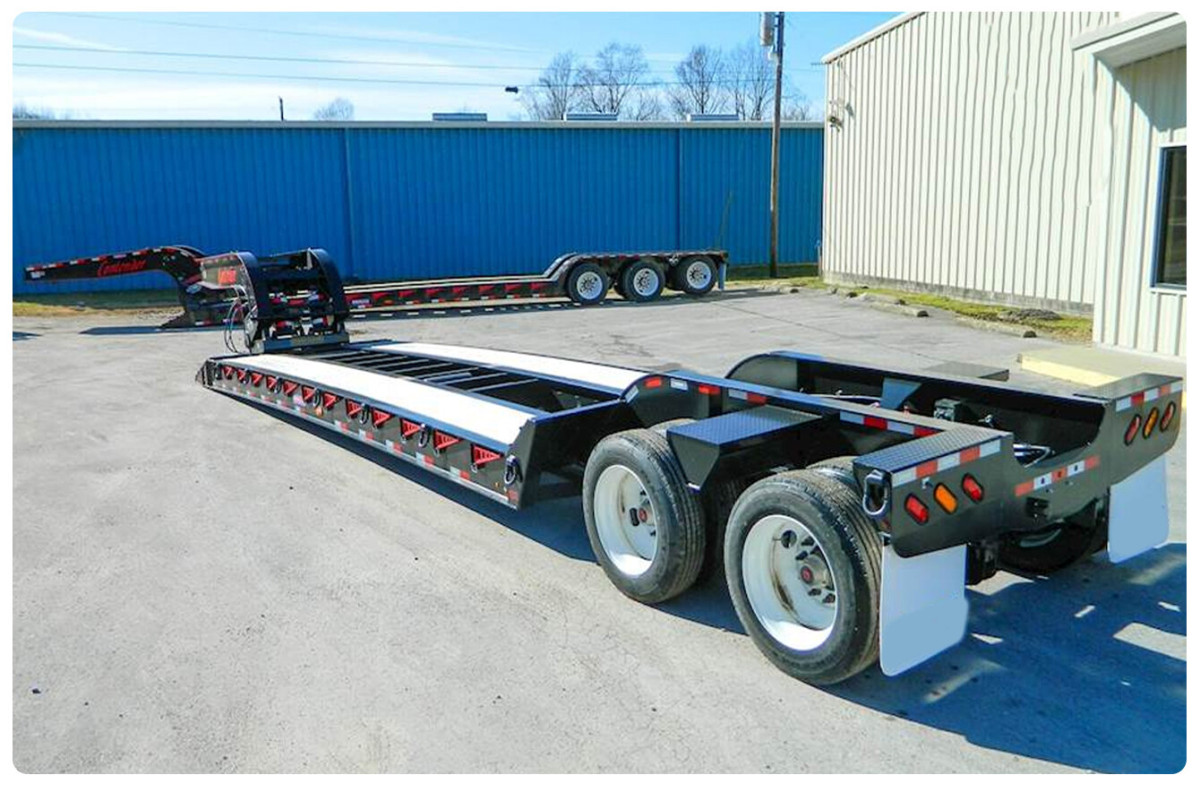

Advantages of 2 Axle lowbed trailer
1. The LOW BED SEMI TRAILER is made of 16Mn high-tensile steel,reasonable structure,superior carrying capacity and no permanent deformation;It can be reinforced according to using requirement.The payload of 2 axles low bed trailer can reach to 120 tons.
2. LOW BED SEMI-TRAILER adopts large gooseneck structure,low loading platform and gravity, high roadability,big loading space;it’s suitable for transportation of large mechanical devices,large-scale cargo
3. The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
4. The continuous improvement of structure makes it much accord with practical loading and unloading requirements.
