Name: Heavy Duty Hydraulic 6 Axles 200ton Low Bed Semi Trailer
SKU: 0

Product



LOCATION： Home > Products > Lowbed Trailer > Heavy Duty Hydraulic 6 Axles 200ton Low Bed Semi Trailer

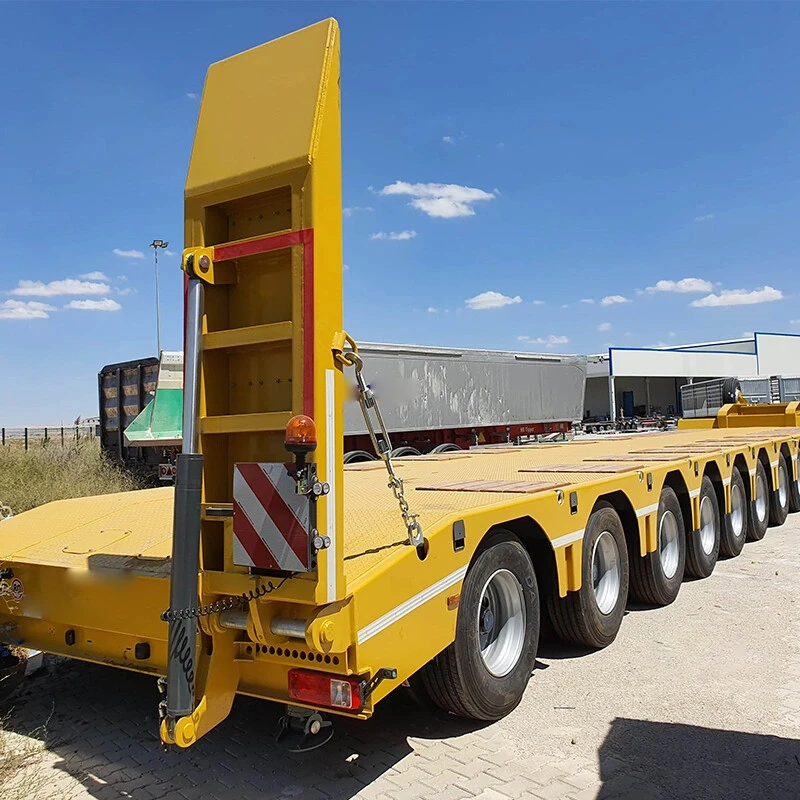

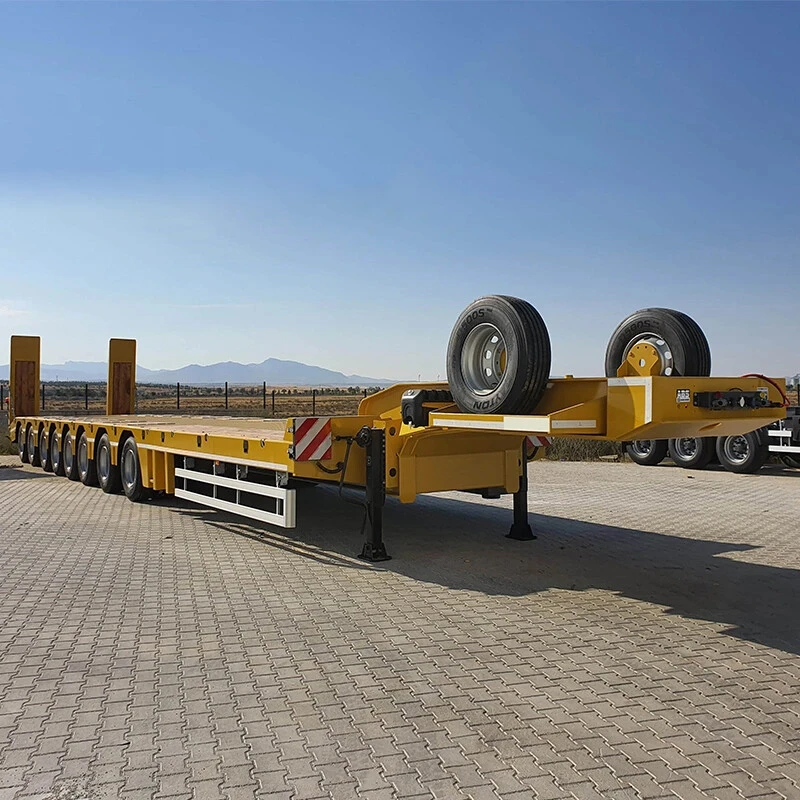

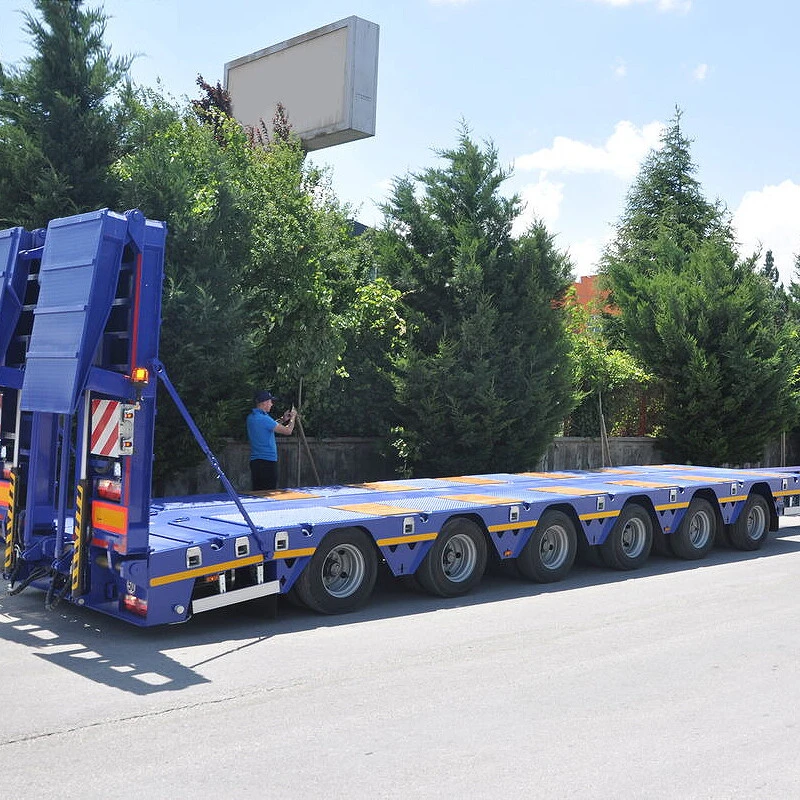

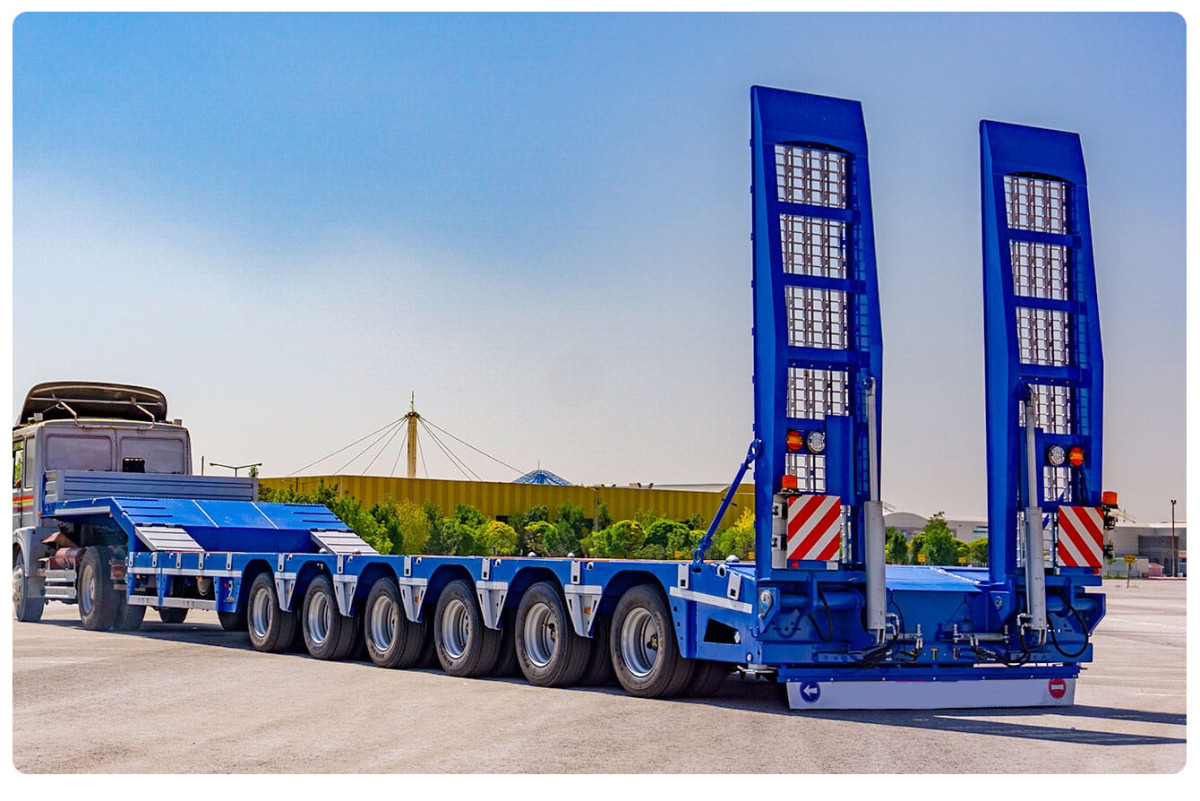

Heavy Duty Hydraulic 6 Axles 200ton Low Bed Semi Trailer

Features:
1.Two years guarantee term provided freely.
2.Export more than 1000 units to Africa, Southeastern Asia, and South America.
3.Products can be custom-made according to your design.

Description

Product Parameter

Outside Dimensions (LWH)	L:12000-20000 W:2400-4000 H:900-1500
Rated Load	30ton-500ton
Tare Weight	More than 9000kgs
Wheel Base	8480+1310 (mm)

Running Gear

Tires	specification	12R22.5 ,11.00R20 or depends on customer
	No. of tires	8,12,16 or more than 20
	Spare tire carriers	2 or 1 including a riser.
Axles	Brand	FUWA
	No. of axles	2,3 4 or more than 5
	Axle-load	13000kgs
Wheel rim	8 units of 7.50-20 rim or 8.00
Suspension	Rigid suspension and air suspension
Pieces of leaf-spring	10/10/10
Brakes	brand	TKL brand
	Brake chamber	4 double chamber
	System	Dual line braking system /ABS

Under Frame

Departure Angle	14
Front/Rear Overhang	1670mm
Main Beam	material	I beam ,Q345B , automatic submerged arc welded
	specification	Height is 500mm,upper plate is 20mm,lower plate is 20mm,middle is 12mm
Cross Beam materia	Q235B
Side beam	16# channel steel
Plate form	Steel Sheet 5mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.5mm,3mm,4mm,5mm,6mm)
King Pin	50# or 90#
Landing gear	Single side operation or double side operation, Static capacity 28Ton
Accessory	One tooling box with a set of standard trailer tool

Electrical

Voltage	24V
Receptacle	7 ways (7 wire harness)
Lights	Front corner marker lamp :red ;reflector lamp :white
	Side marker :orange
	Rear lamp :red; rear reflector :white; turn single lamp :orange
