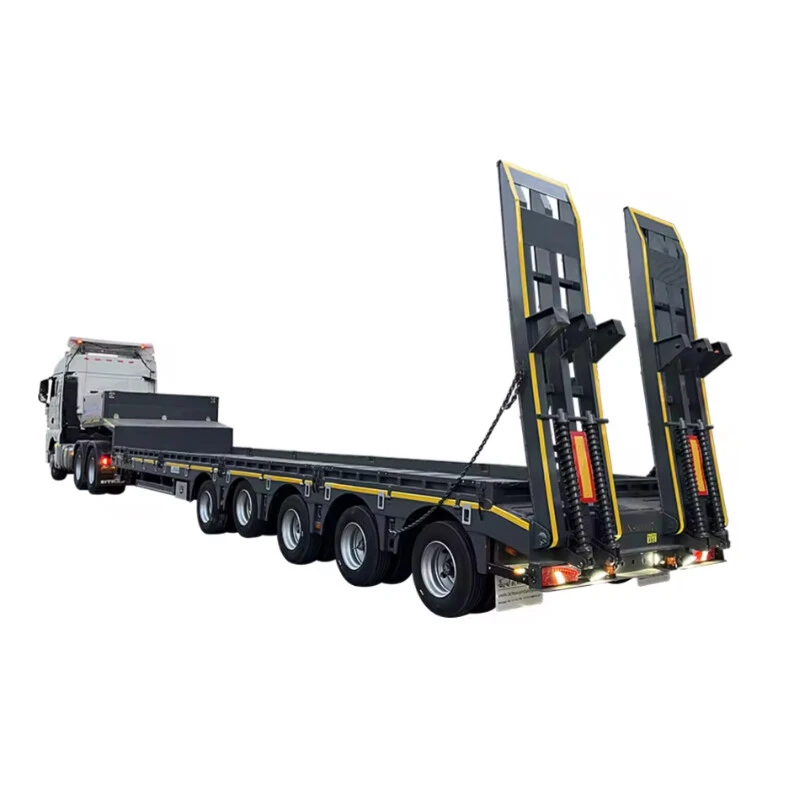

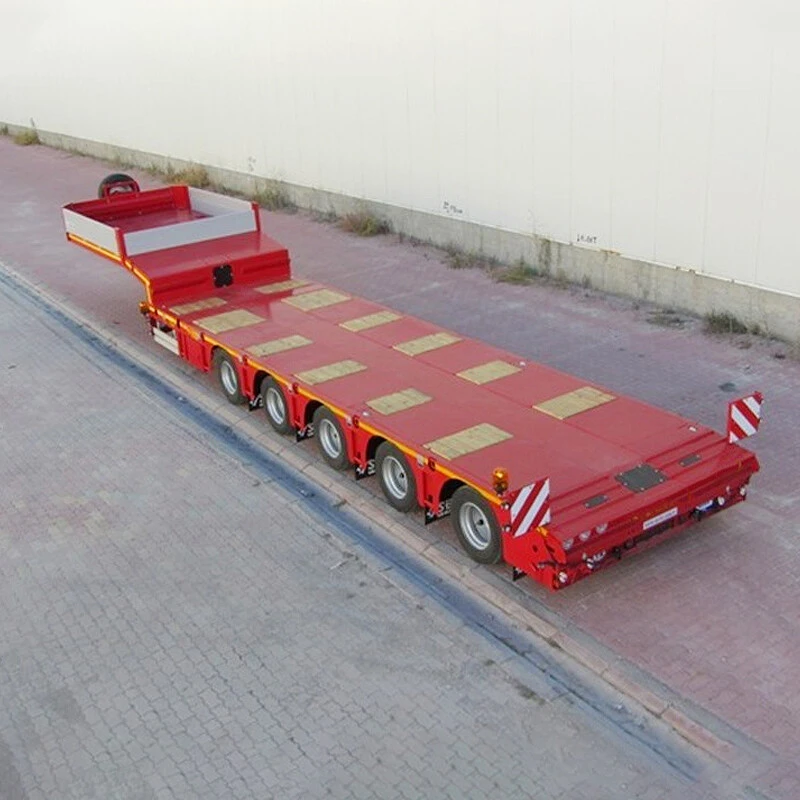

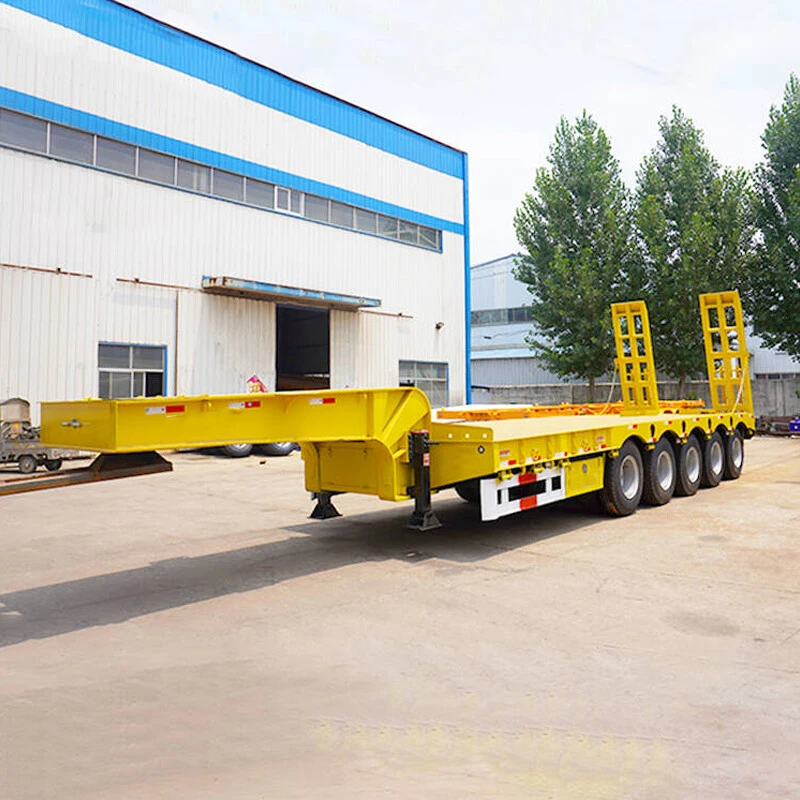

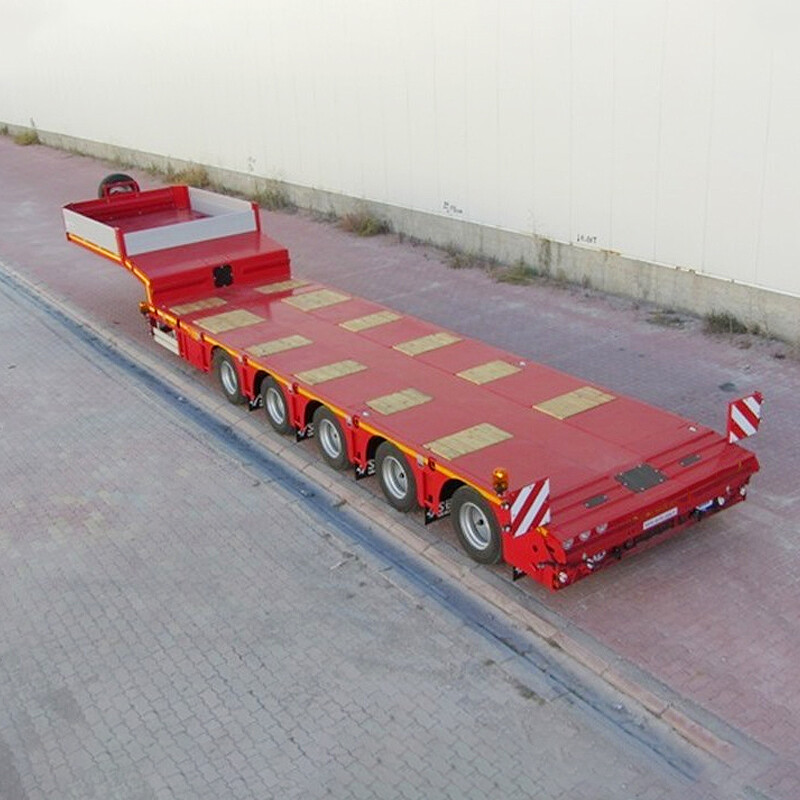

5 Axle Heavy Duty Low Bed Trailer
Advantages of low bed trailer
1.Low bed trailer use good quality high-tensile steel with 150 tons load capacity.
2.Have a lower working platform height,can be design as your requirement (860mm - 1100mm)
3.Rigid suspension to ensure the the heavy payload.
4.Low bed trailer can be custom-built as your requirement

Description

Low bed trailers are not only used to transport machinery and vehicle but all kinds of heavy and abnormal loads. For instance, finished products from these industries are packed in containers and stacked on lowboys for transportation. The transporters can move stacks of heavy containers without toppling over. ilers with low bed trailers.

Specifications


  Feature  Carry containers, bulk cargo, equipment
  Dimension(L*W*H)  15600*3200*2500mm (custom-built)
  Main frame  Heavy duty and extra durability design; High tensible low carbon alloy Q345B steel
  Model  SS9700TDP
  No. of axle  5
  Payload  40,000 to 70,000kg
  Kingpin  The world-famous JOST brand bolt-in/welded type 3.5”/2”
  Landing gear  JOST brand two-speed manual operation 19”
  Tire size  11R22.5 (Optional)
  Rim size  9.00*22.5
  Axle  L1 Brand /Fuwa Brand
  Suspension  Fuwa brand with 8pcs of leafs spring
  Brake system  Dual line  Re-6 emergency relay valve, T30/30 air chamber, 46L air tank
  Electric system

  One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector,

  fog light; one set of 6-pin standard cable

 Container locks  12(for 1x20GP,2X20GP,1X40HQ)
  Painting  S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting




Advantages of low bed trailer

1.Low bed trailer use good quality high-tensile steel with 150 tons load capacity.

2.Have a lower working platform height,can be design as your requirement (860mm - 1100mm)

3.Rigid suspension to ensure the the heavy payload.

4.Low bed trailer can be custom-built as your requirement
