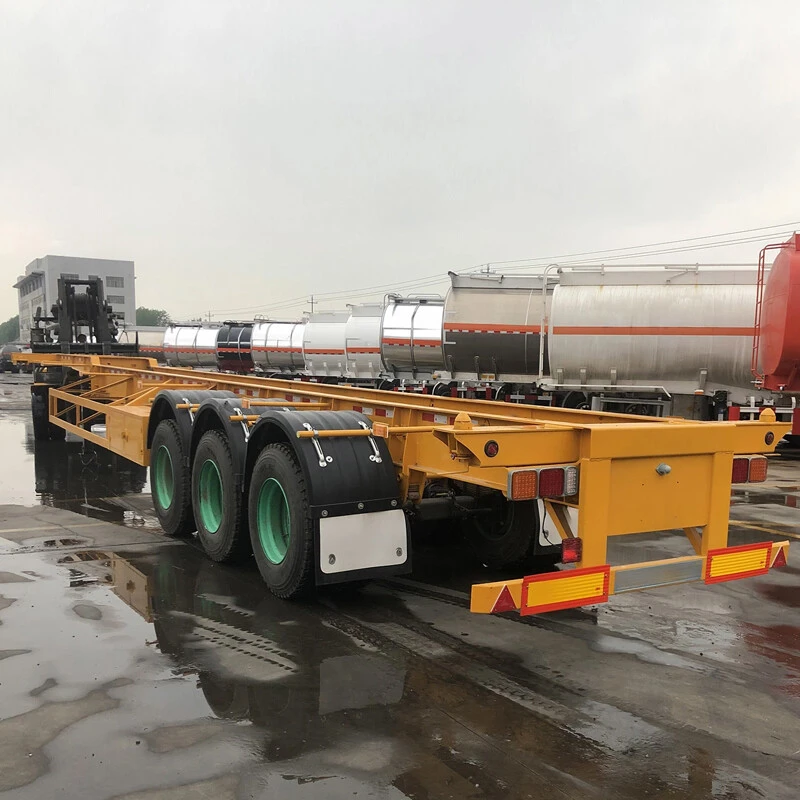

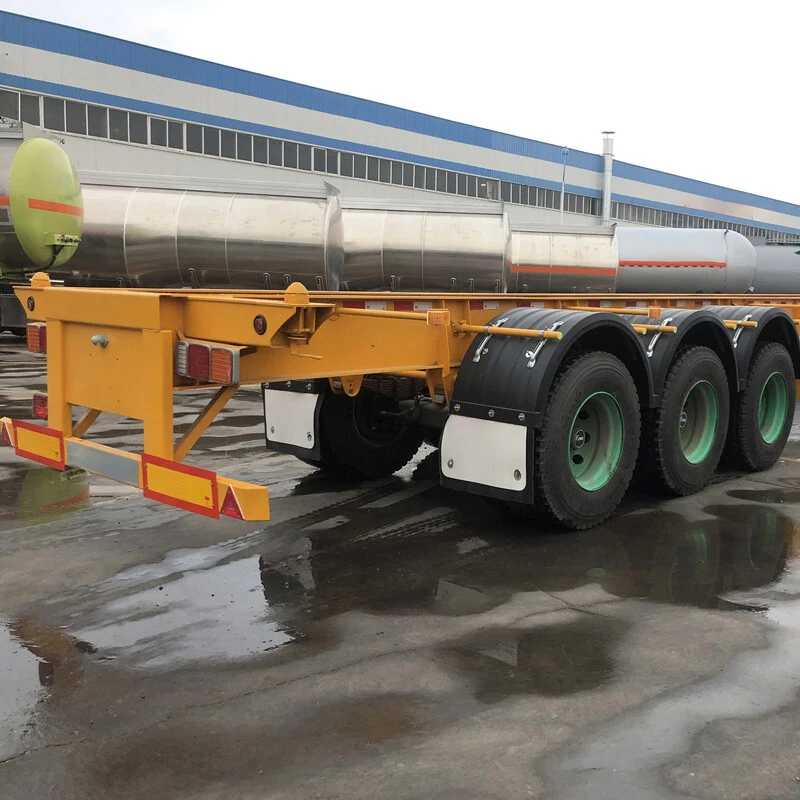

3 axles 40ft Skeleton Trailer With Air Suspension

Container chassis trailer is mainly used for transport containers, it mainly used in docks, ports and other places. It is an ideal transportation tool for transport containers.

Description

Specifications

Parameter	Overall Dimensions(mm)	LWH :1224022601510
	King pin setting (mm)	750
	Fifth wheel height (mm)	According to tractor’s parameter
	Axle space (mm)	1,310+1310
	Tare weight (kg)	Approx.6,200
	Payload (kg)	40,000
	Painting	Primer and top coat, polyurethane paint.
	Tire	Type: 11R22.5, equip 12pcs per chassis
	Rim	Type: 8.25*22.5, equip 12pcs per chassis
	Axle	FUWA, 13T*3sets
	King pin	JOST, 3.5”
	Suspension	2 axles with mechanical suspension and first axle lifting
	Leaf spring	8 pcs, 90*16mm
	Landing gear	Goldenstone 30T
	Lock	Brand twist lock 4pcs.
	Brake system	WABCO brake valve, dual chamber, type 30/30
	ABS	Non
	Electric system	24V, LED
	Tool box	1 set
	Spare tyre carrier	Equipped 1 sets per chassis
	Color	By customer's requirement.

Container chassis trailer is mainly used for transport containers, it mainly used in docks, ports and other places. It is an ideal transportation tool

for transport containers.We can provide 40 ft skeleton container trailer and 20 ft skeletal trailer, and the loading capacity between 40 tons to 60 tons.

For the product quality, we adopts high-strength steel, this makes product increased long service life. The accessories and configurations all

used domestic and aboard famous brand and China famous brand.The vehicle has light weight and strong carrying capacity.
