Name: 45ft Tri-axle Gooseneck Skeletal Trailer
SKU: 0

Product



LOCATION： Home > Products > Skeleton Trailer > 45ft Tri-axle Gooseneck Skeletal Trailer

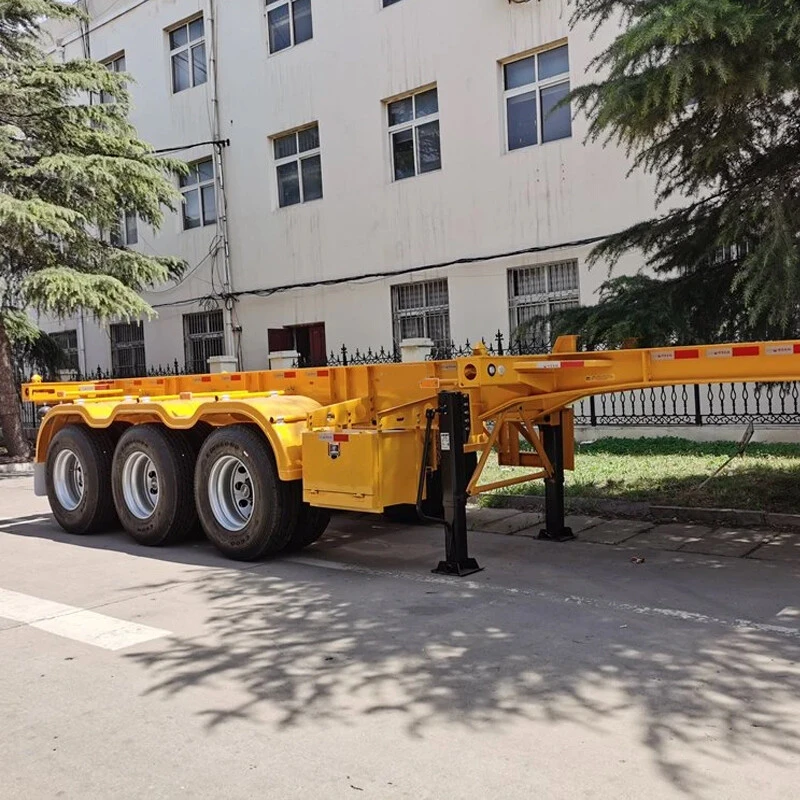

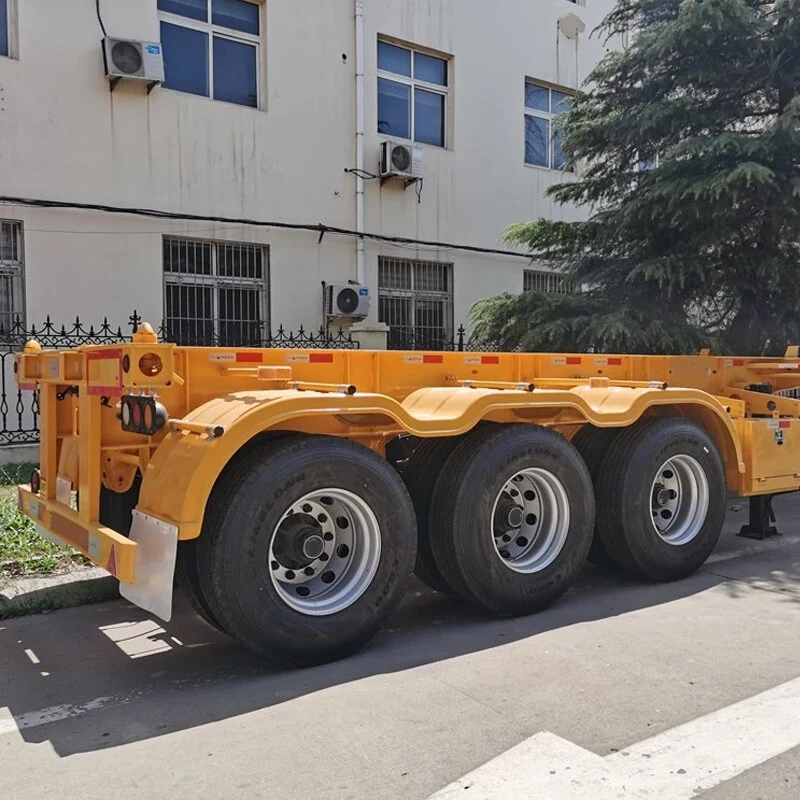

45ft Tri-axle Gooseneck Skeletal Trailer

This 45ft gooseneck skeletal trailer is designed to match with a 45 ft refrigerated container or dry van. Its main feature is a light tare weight 4.3 tons.

Description

Specifications

Dimension	Length	Approx 13,950 mm
	Width	Approx 2,480 mm(including mudguard)
	Height	Approx 1,500mm @ unload
Weight	Max. Payload: Approx 60,000 kg
Steel Structure	Material	High strength low alloy steel Q345 and Q235 is used for welded I-beam and fabricated parts.
	Axle	3*13 tons Fuwa axles
	Tire	6 pcs with aluminum rim
	Suspension	air suspension and the front axle is liftable
	King Pin	3.5" bolting kingpin
	Container lock	4 units ISO retractable container lock.
	Landing Gear	JOST E100 landing gear
	Brake System	Dual air brake system, WABCO relay valve, No ABS system.
	Brake chamber	Type30/30 on the two axles.
	Electrical System	24-volt lighting system, 7-way receptacle, Chinese standard.

This 45ft gooseneck skeletal trailer is designed to match with a 45 ft refrigerated container or dry van. Its main feature is a light tare weight 4.3 tons.
