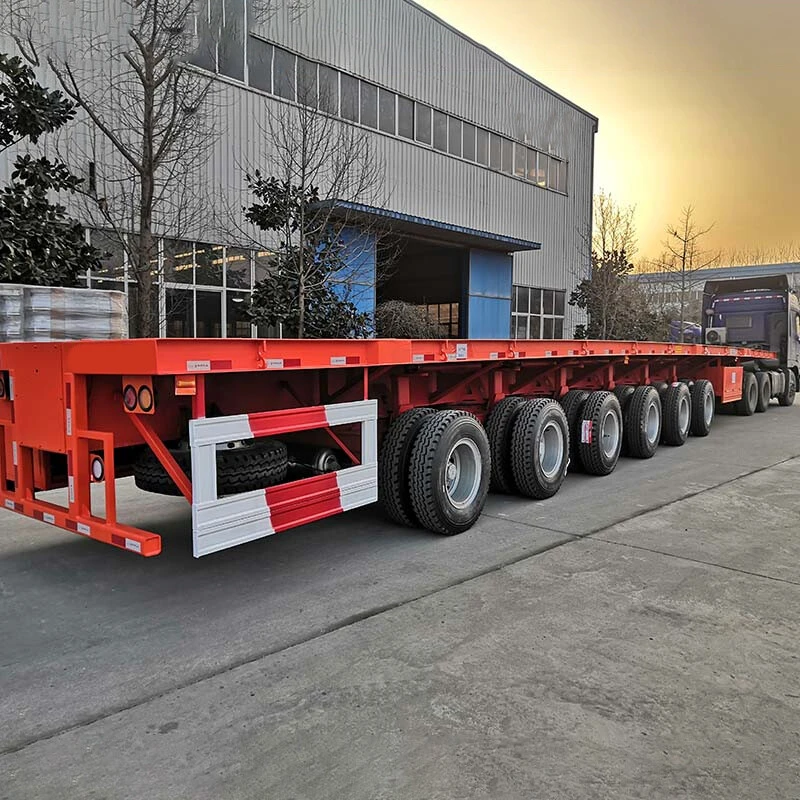

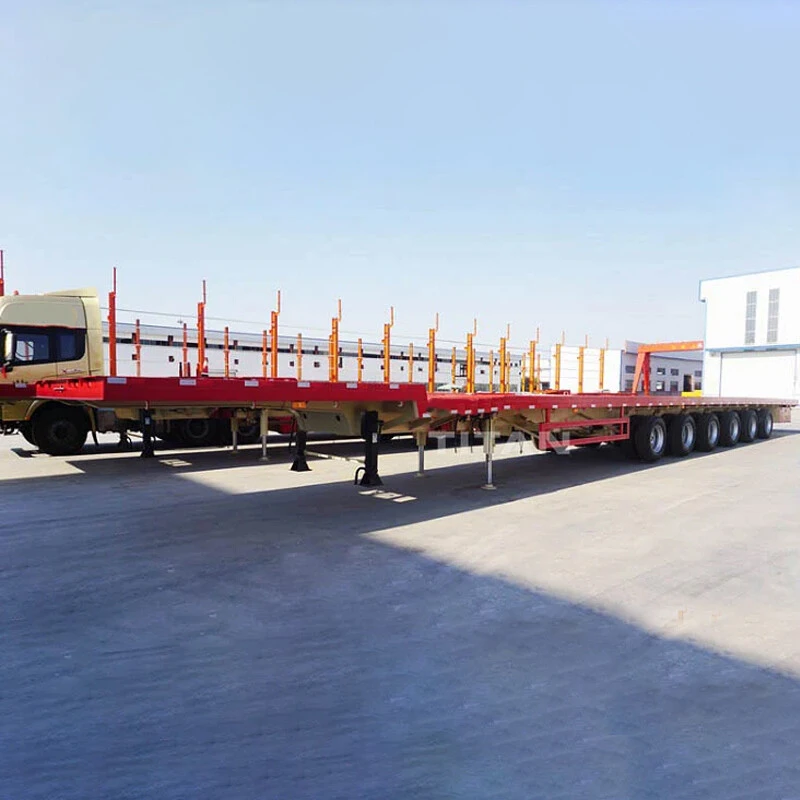

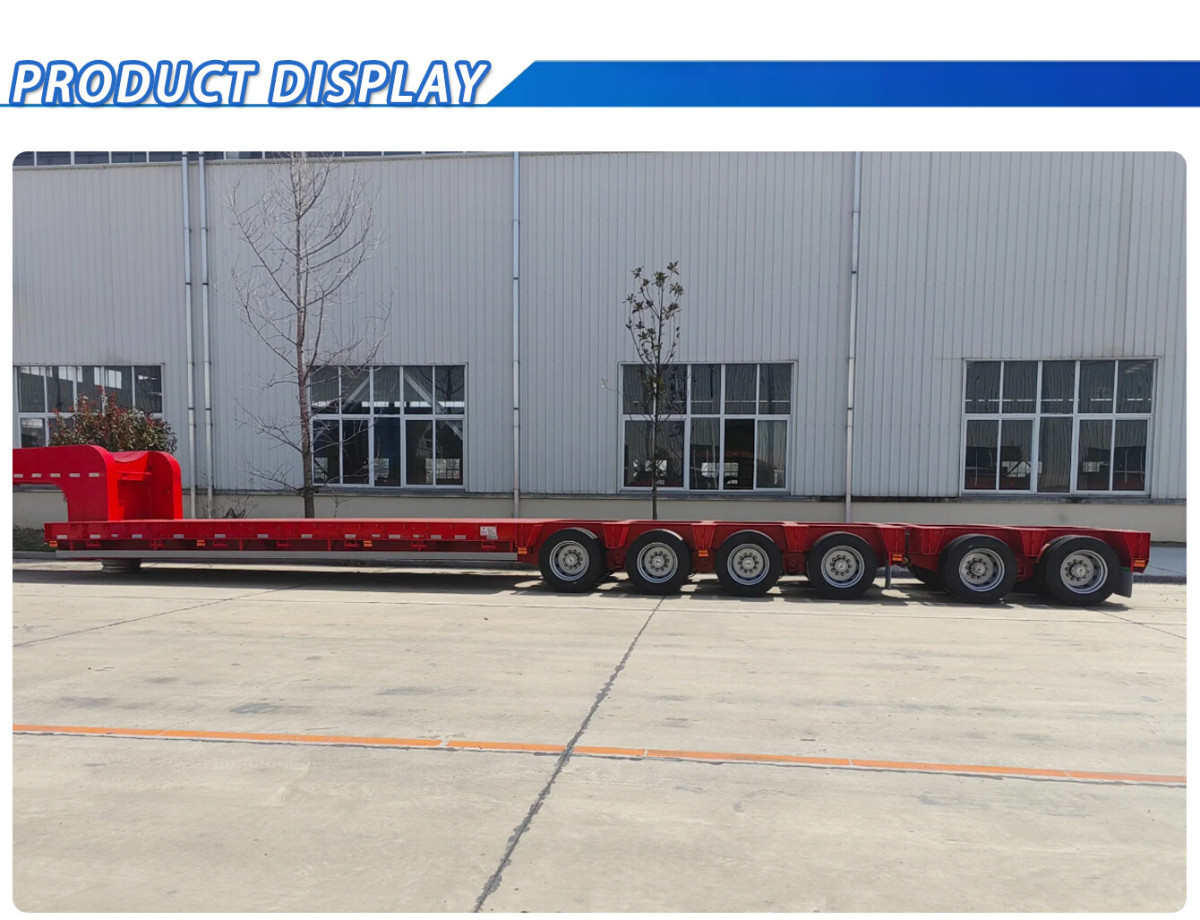

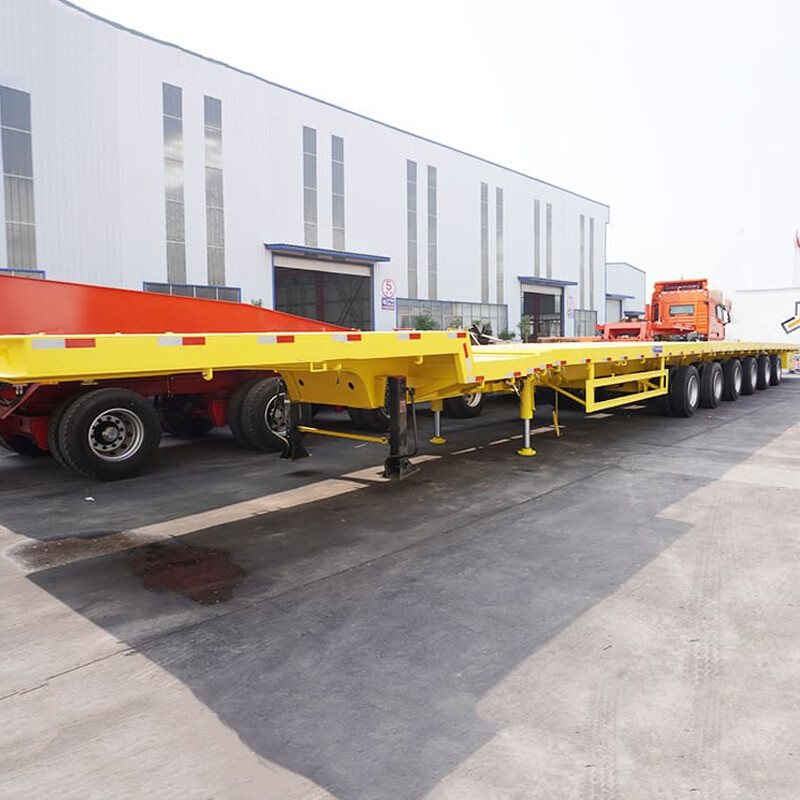

6 Axle 62m Wind Blade Trailer

Lead Time:15-20 DAYS
Product Origin:CHINA
Shipping Port:ANY PORT, CHINA
Color:OPTION

Description

Wind turbine blade transporter, 35 m, 42 m, 45 m, 56 m hydraulic rotary wind turbine equipment transporter, the maximum length of 60 m. As the name implies, it is a vehicle used to transport wind turbine blades.

Specifications

Overall size	1985027001640mm (3 sections telescopic beam, could extend to 62000mm)
Curb weight	Approx. 28,000kg
Payload	80,000kg
Chassis	Heavy duty and extra durability designed ; opting for high tensile steel AG700, welded by automatic submerged-Arc process. Middle flange height 650mm.
Floor	3mm checkered plate
Landing gear	28T two-speed, manual operating, JOST
King pin	3.5” bolt-in king pin. JOST
painting	Complete chassis sand blasting to clean rust. I coat of anticorrosive prime,2 coats of final PU paint.
Vehicular applications	Wind blade transport

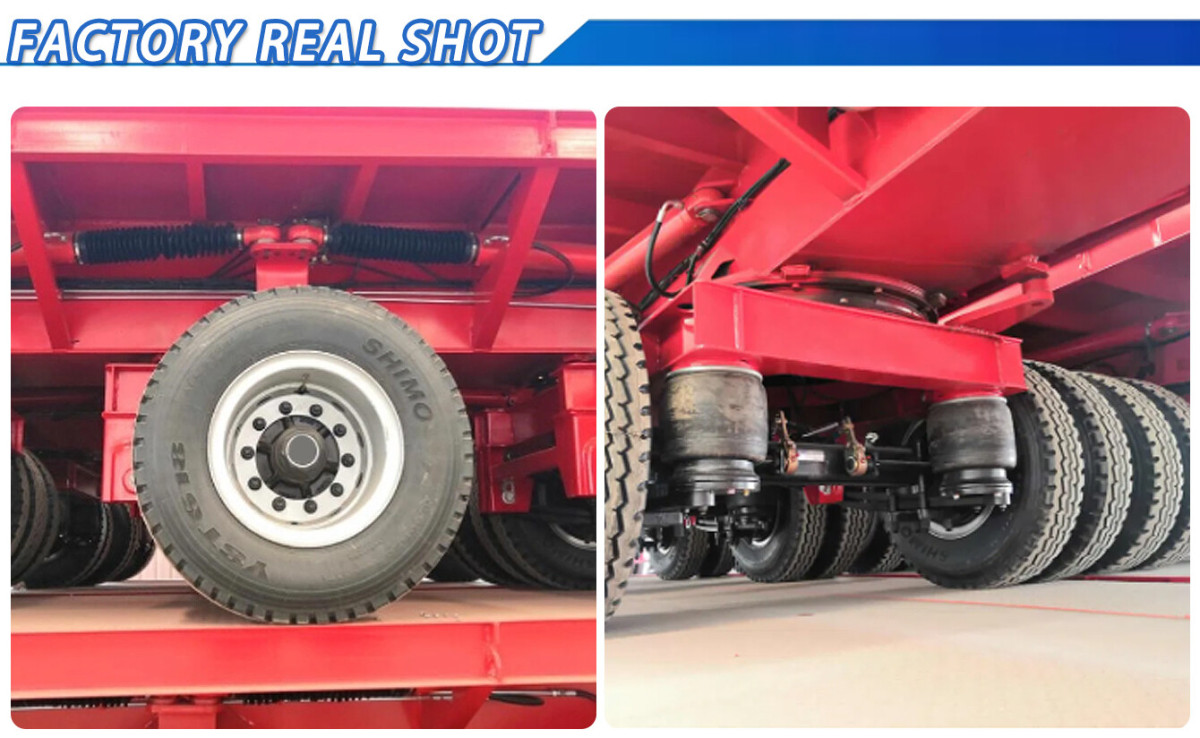

suspension	Mechanical suspension
Leaf spring	Mechanical 10 pcs thicken leaf spring
axle	16T, 6 units
Brake system	Double line brake system
Brake chamber	12 chambers
Tire & rim	10.00R20 24 units
Voltage /lamp	24V with LED light
receptacle	7way socket SAE standard
wiring	Electric cable protected by PVC conduit on main frame

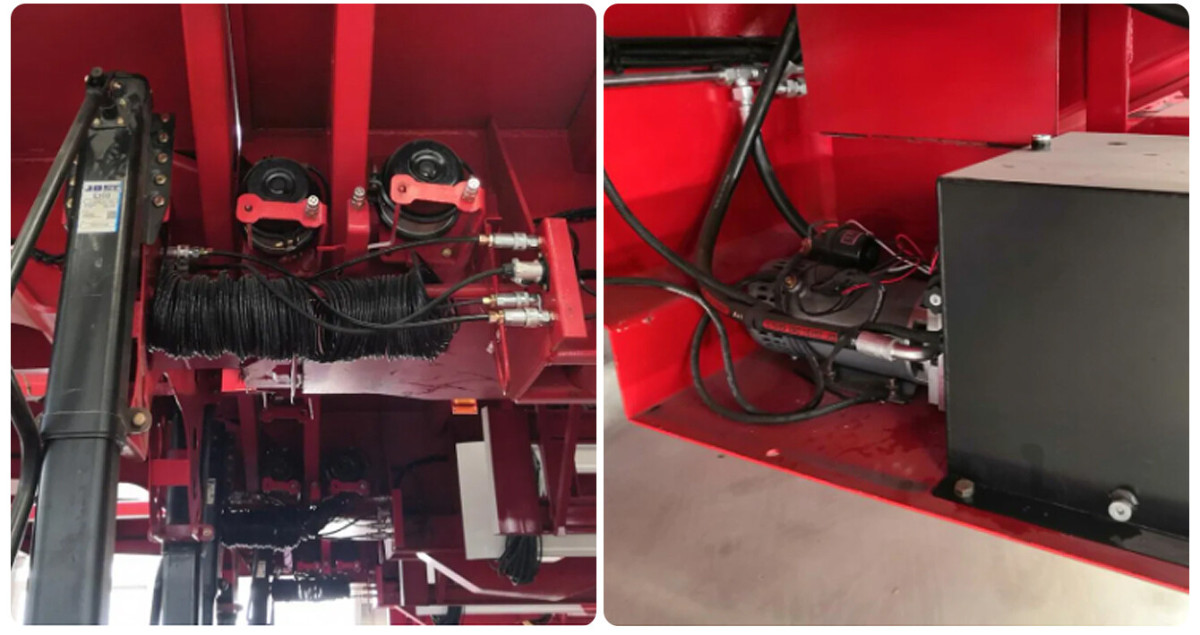

Power unit	Single cylinder diesel engine
cylinder	2 steering cylinder
Guardrail	yes
Tool box	1 pcs
