42cbm Aluminium Oil Tanker Trailer
Our tankers are available in a wide range of capacities, so whether you need a 42 square foot, 50 square foot or 55 square foot tanker, whether you are looking for small scale fuel distribution or large scale transportation of oil, we have the perfect solution for your specific transportation needs.

Description

Specifications

  Volume(m3)  42000 liters
  Dimension  11950mm*2490mm*3480mm
  Shape  Round
  Tanker Body thickness  5mm/carbon steel
  End Plate thickness  6mm/carbon steel
  Wave plate  4mm/carbon steel
  Tare weight  About 10T
  Compartment  6
  Manhole  6pcs carbon steel manhole cover, 500mm
  Bottom Valve  2

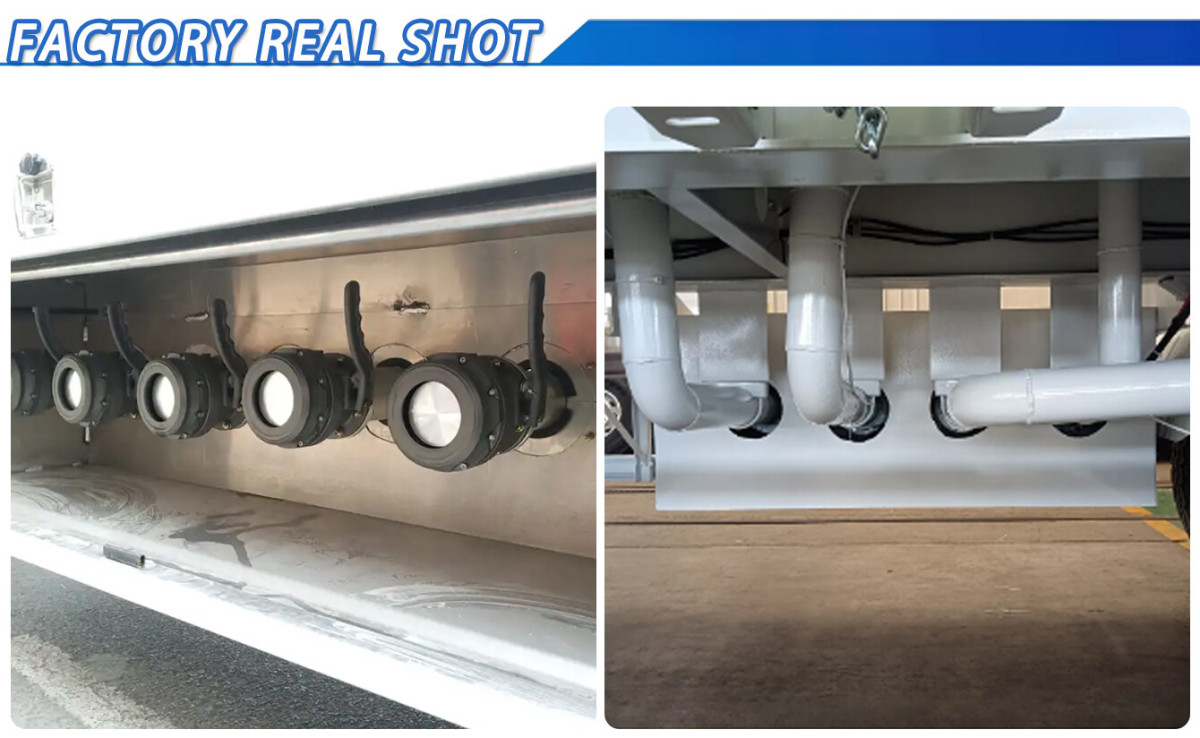

  Discharging Valve  6pcs API valve, 3 or 4 inch
  Discharging Pipe  3or 4 rubber hose, 2pcs, 6m/each
  Other  Ladder/ Walking Platform/ Folding armrest
  Main Beams  Q342B carbon steel material, “H” beam
  Axle  3 axles, 16tons brake pads
  Landing Gear  28 T JOST landing gear linkage
  King Pin  2.00 or 3.5 inch

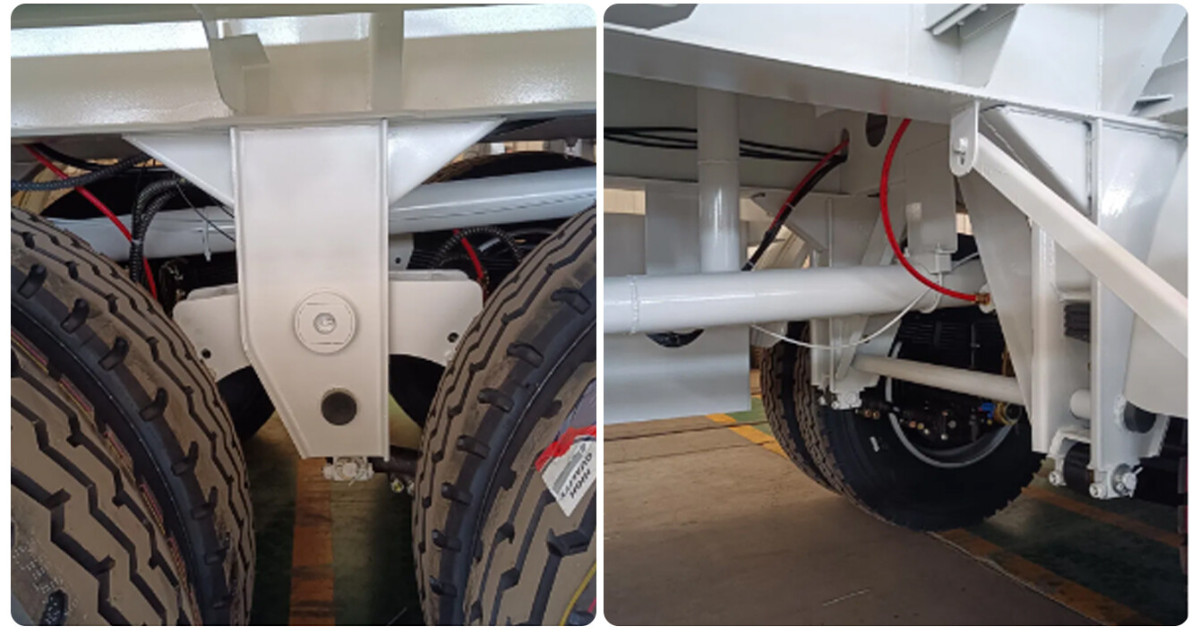

  Suspension  Mechanical suspension
  Leaf Spring  90mm(W)*16mm(T)*10Layers
  Pneumatic Braking System  Stored chamber T30/30 spring brake chamber; 4pcs, T30 2pcs
  Tire  385/65R22.5*6pcs

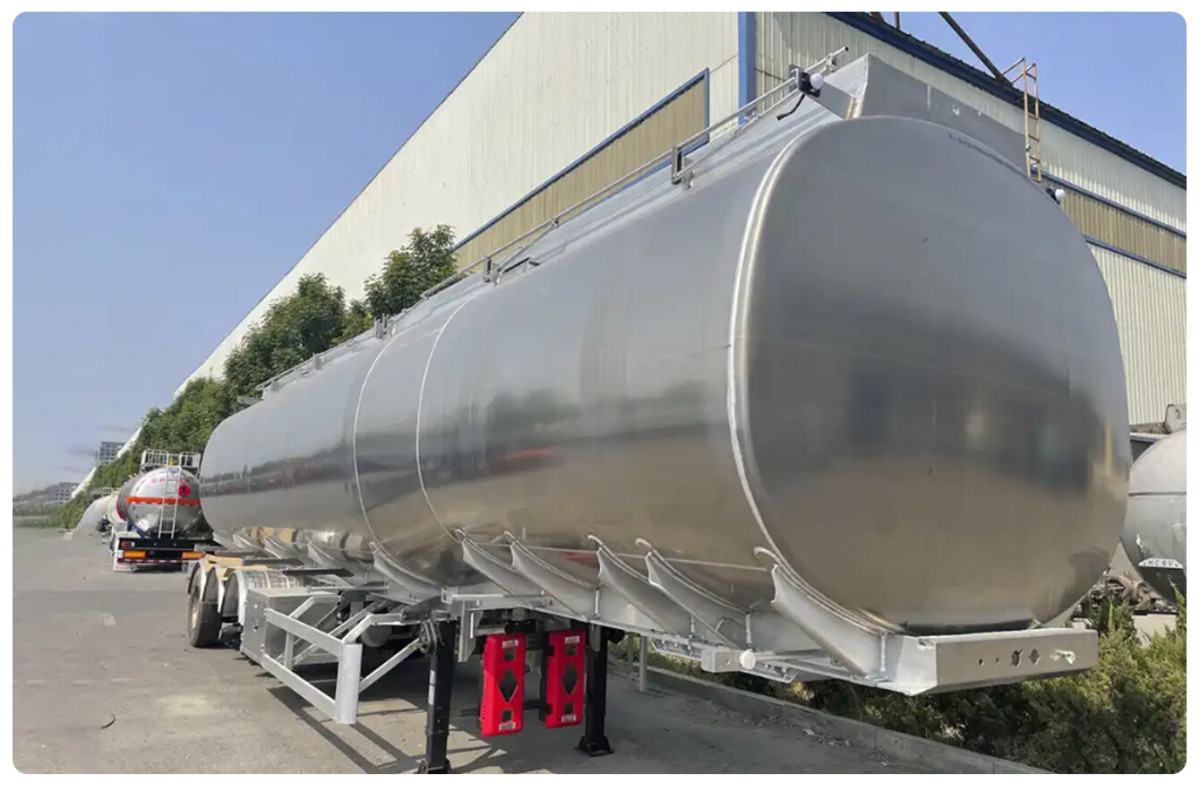

The material of this tanker is made of top grade aluminum, which not only ensures the strength and longevity of this tanker, but also has a lighter net weight than tankers made of carbon canisters, and lightweight also means lower energy consumption, and a greater load capacity without compromising durability. In addition, aluminum tankers have excellent corrosion and oxidation resistance, and can withstand harsh weather conditions and chemical attack. This allows aluminum tankers to maintain stable performance and appearance over long periods of time, extending their service life and reducing maintenance upkeep costs.
