Name: 40ft 4 Axles Skeleton Container Trailer
SKU: 0

Product



LOCATION： Home > Products > Skeleton Trailer > 40ft 4 Axles Skeleton Container Trailer

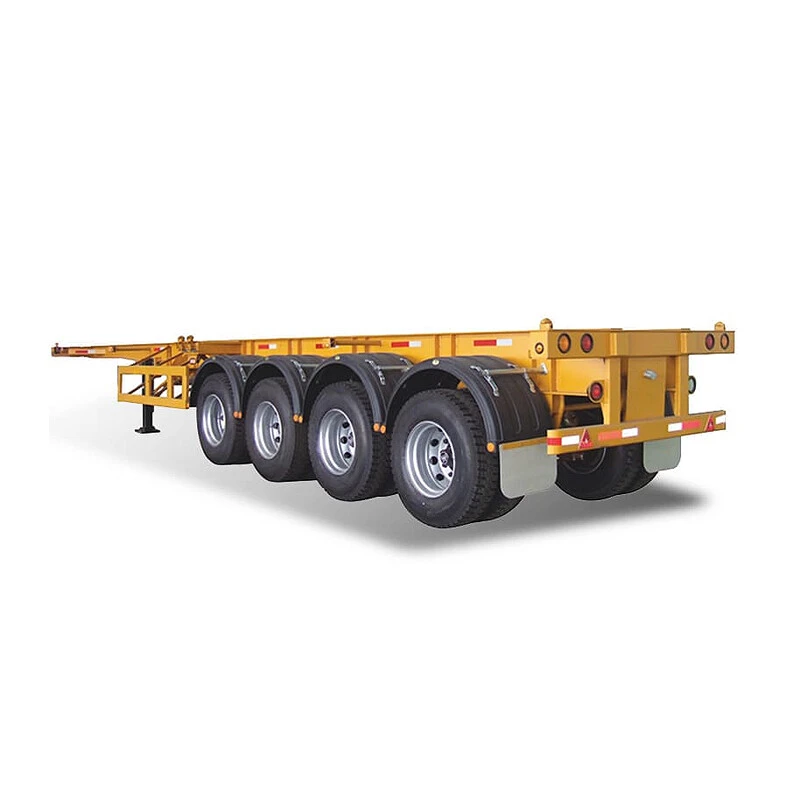

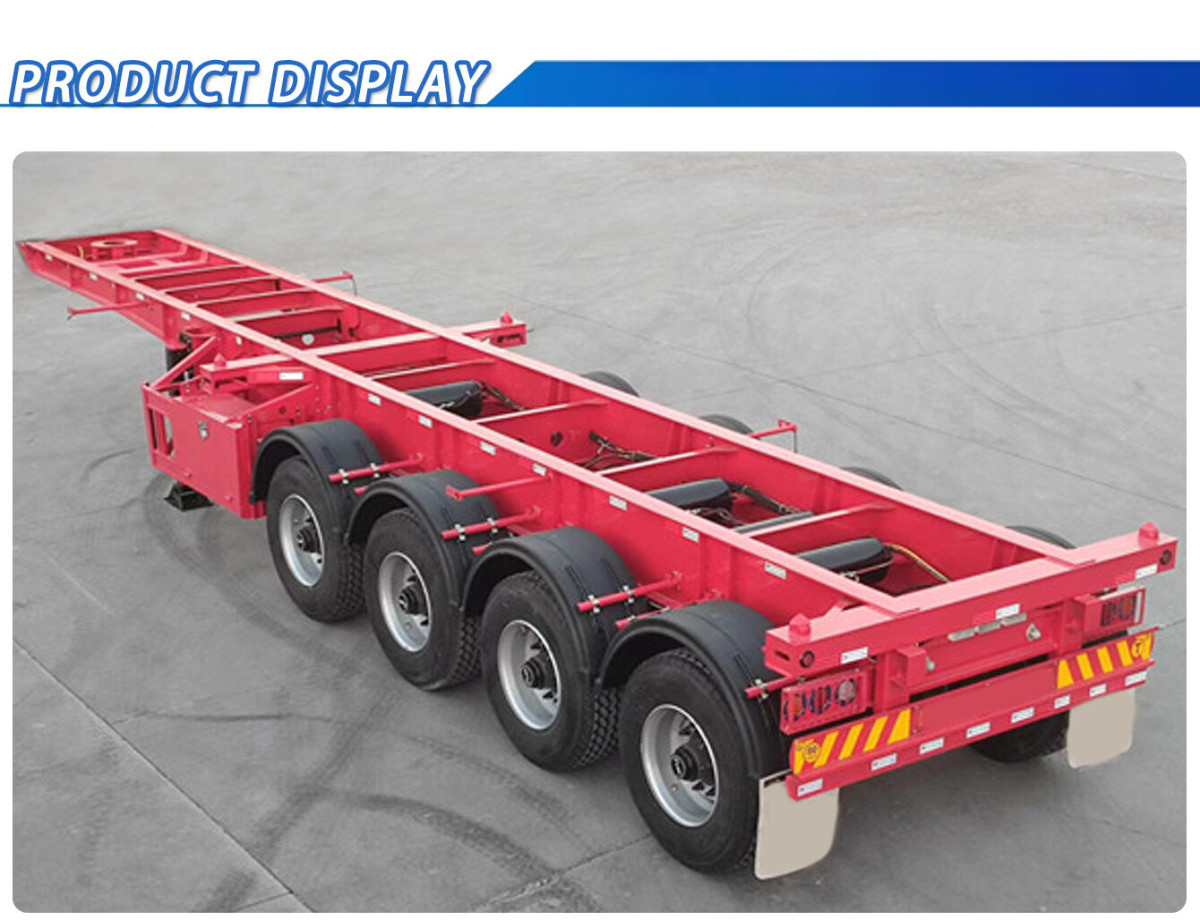

40ft 4 Axles Skeleton Container Trailer

This 4 axles 40ft skeleton container chassis can barry 70 tons payload. and this kind of large loading capacity container trailer is most welcomed in the West African area.

Description

This 4 axles 40ft skeleton container chassis can barry 70 tons payload. and this kind of large loading capacity container trailer is most welcomed in the West African area.

Specifications

Dimension	Length	Approx 12,400 mm
	Width	Approx 2,480 mm(including mudguard)
	Height	Approx 1,560mm @ unload
Weight	Max. Payload: Approx 70,000 kg
Steel Structure	Material	High strength low alloy steel Q345 and Q235 is used for welded I-beam and fabricated parts.
	Axle	4*13 tons Fuwa axles
	Tire	12R22.5 tires, 16pcs
	Suspension	reinforced mechanical suspension
	King Pin	3.5" bolting kingpin
	Twist lock	12 units ISO retractable twist locks
	Landing Gear	JOST E100 landing gear
	Brake System	Dual air brake system, WABCO relay valve, No ABS system.
	Brake chamber	Type30/30 on the two axles.
	Electrical System	24-volt lighting system, 7-way receptacle, Chinese standard.

The skeleton container trailers' front axle is liftable. So that, it can make the turning much more easier in the limited working area. Additionally, lifting the front axle when the skeleton container trailer runs without payload can also reduce the tire wearing.
